1. Summary of the Products

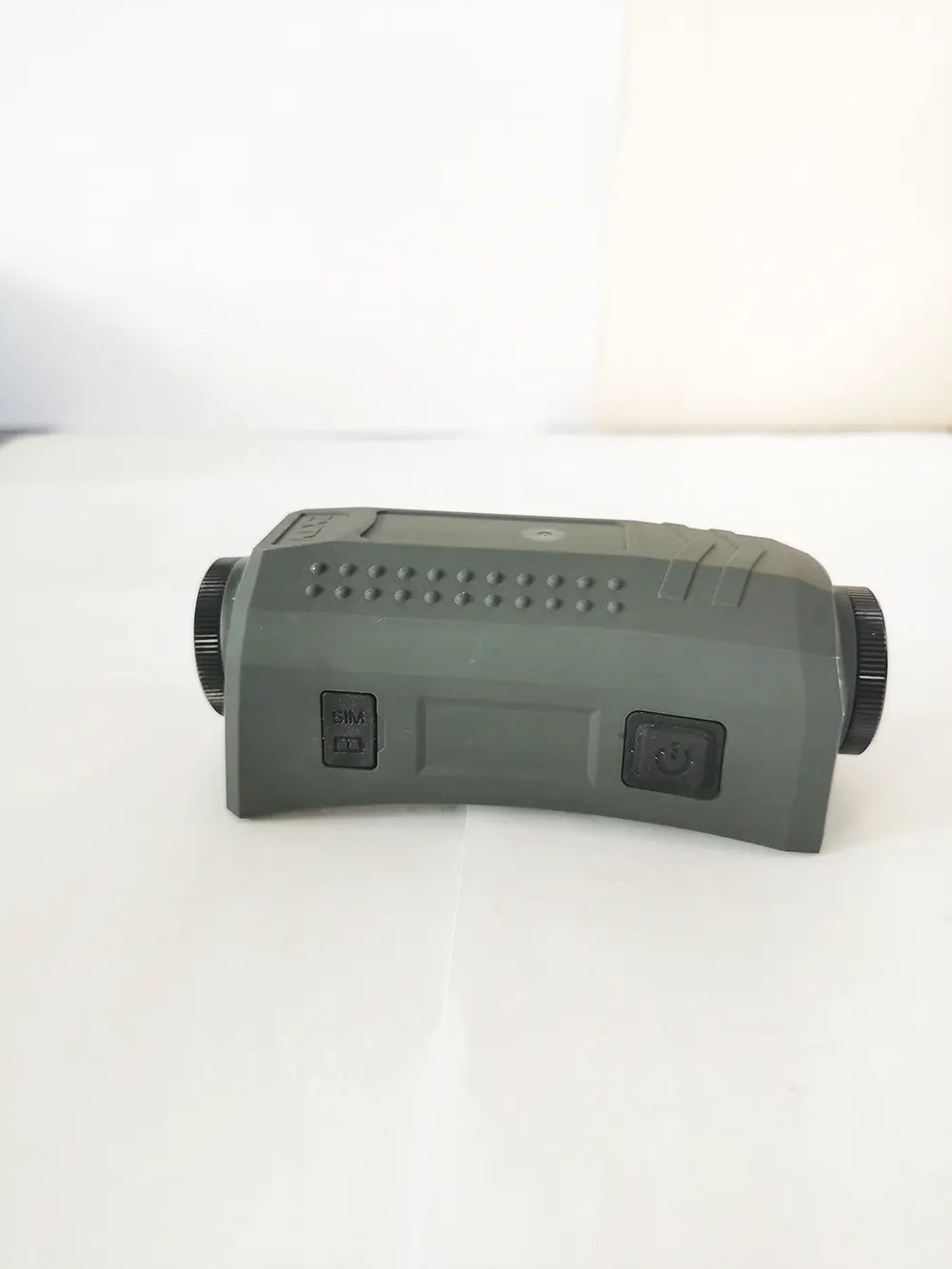

   Eye is on police, special police, special equipment, such as mobile law enforcement forensics administrative supervision portable single monitoring demand scenarios developed, this product adopts a high-speed processor and embedded Linux operating system, the set of super low illumination color cameras, audio, 4G and Wi-Fi wireless communication module, GPS/ storage, compass, alarm module, configuration HD night vision camera and wireless Bluetooth headset. The device can perform real-time video and audio information transmission, voice intercom, and other functions through 4G and Wi-Fi wireless networks, cooperating with the monitoring and dispatching command platform system with perfect back-end functions to achieve remote dispatching and command functions for outdoor mobile individuals.
   2. Características del producto:

1. using Ambarella main control chip, the recording effect is more outstanding, the product runs steadily. With high clear, low illumination industrial grade 1/1.8 CMOS photosensitive element, the image effect is outstanding, the color is gorgeous and true.
   2., using the embedded real-time operation system and Linux dual system, the boot speed is faster, the system runs more stable, the function is stronger, and it can effectively prevent viruses and other invasive systems.
2. professional waterproof and dustproof design, IP67 waterproof grade can effectively prevent rain and dust entry.
3. industrial grade plastic and bare metal structure design can withstand 2 2-meter free falling body, and the data will not be damaged.
4. support two-way image acquisition, 1080PAG, postposition resolution 720P, all use star class night vision sensor, ultra-low illumination.
5. support Bluetooth headphones for intercom and clustered calls.
6. built-in full network 4G module, support 4G wireless transmission, access platform for centralized monitoring.
7. built-in WIFI module to support WIFI wireless transmission.
8. built-in GPS/ BEIDOU positioning module, supporting platform positioning equipment, and track replay.
9. support the two-way voice call of the equipment and the platform, and support the PTT cluster intercom.
10. system startup time is superfast, power up to full function video <3 segundos.
11. emergency alarm function, support short press button and send alarm information to the platform.
12. low power, large capacity battery design, support continuous video recording 6 horas, 4G transmission over 3.5 horas.
13. support the direct connection of mobile phones through WIFI, through APP, video preview, equipment parameters configuration, video search and playback, y así, convenient for users to use maintenance

3. Product Specifications

1. Product Definition
product positioning	4G wireless single unit terminal integrated device
Sales model	finished product
Time to market	2017
2. Hardware Design
hardware platform	A bully A12
sistema operativo	Linux
Whole machine size	120*52*45mm
Audio and video	Cámara	Double lens design, cámara frontal, rear camera angle, with the level of identification, rotating camera, front camera rear camera using SONY 185sensor, SONY 224sensor
	Micrófono	IMI head built-in front shell test range 5 metros
lighting	Front lens configuration white light
	Rear lens configuration tactical lamp (night vision instrument)
	Power indicator lamp under charging interface
Botón	Switch button
	Alarm button
	Tactical indicator button
battery	capacity	4500mAh
	voltaje	3.7V
	Charging time	Menos que 3 horas
	Continuous working time	4G transmission 3.5H above
almacenamiento	128G card,	TF card is not removable
Signal communication	4G transmission	4G module	Built in host 4G full network,
	WIFI module	SIM card	Micro slot
	GPS/ BEIDOU module	Built-in host
	Bluetooth	Built-in host
	USB	Mini 5PIN USB2.0 connects computer data transmission or charging
3. Product Performance
work environment	temperatura de trabajo	-20～70℃
	Relative humidity	40%～80%
storage environment	Temperatura de almacenamiento	-40～60℃
	Storage relative humidity	93%(40℃)
