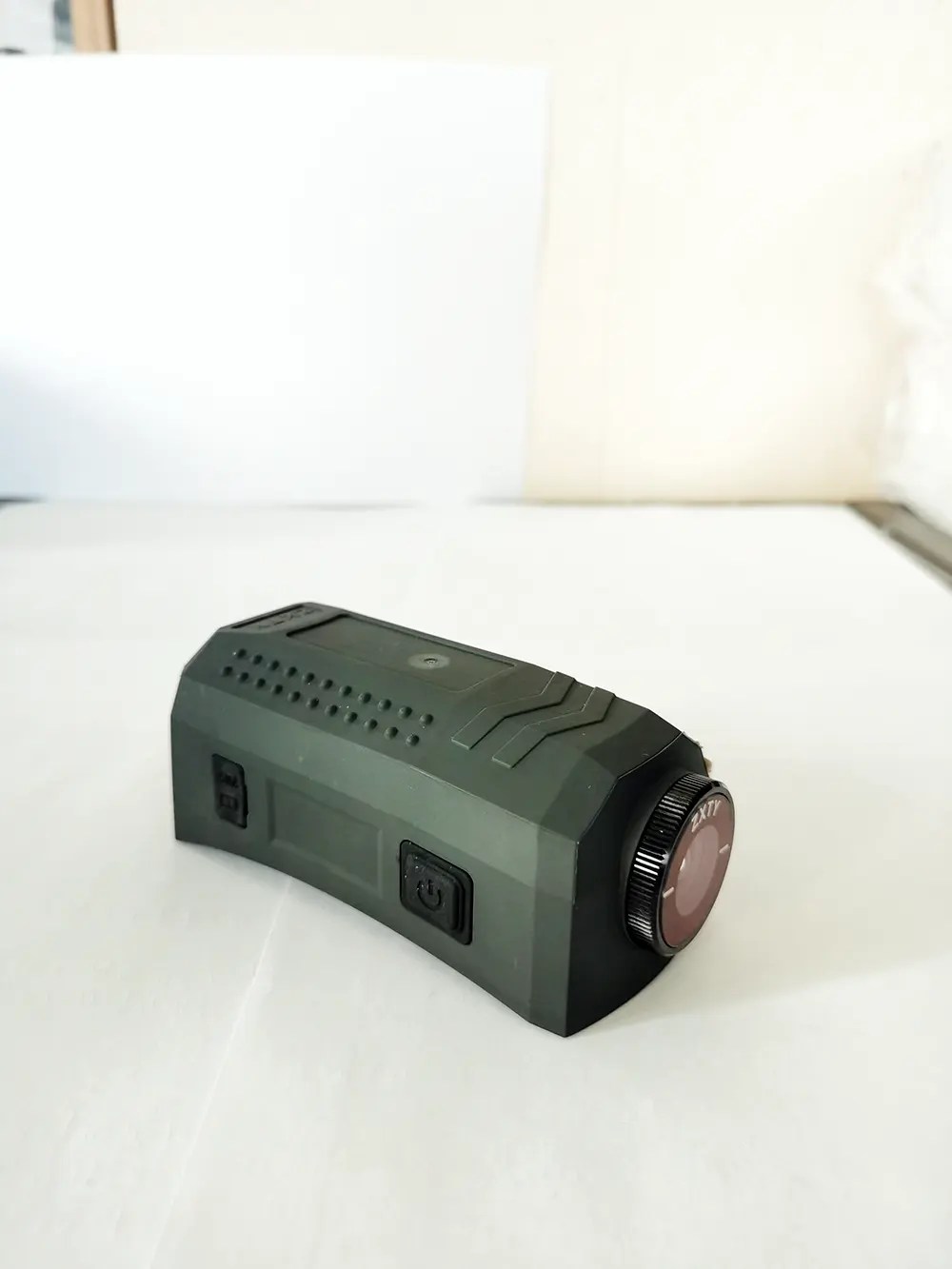

Sistema de transmisión de imágenes digitales de un solo soldado

Sistema de transmisión de imágenes digitales de un solo soldado

1.1Product overview
Tianyan is a special equipment developed for armed police, SWAT, troops, fire emergency, mobile law enforcement evidence collection, administrative supervision, and other individual command and dispatch needs, the product adopts a high-speed processor and embedded Linux operating system, integrating ultra-low illumination color camera, audio module, 4G and Wi-Fi wireless communication module, GPS/Beidou positioning module, storage module, alarm module in one. The equipment can perform real-time audio and video data transmission, voice intercom, and other functions through 4G and Wi-Fi wireless networks or configure private networks and ad hoc networks, and realize remote command and dispatch functions for mobile individual soldiers.
Características del producto:
1. Using a high-performance main control chip, with a high-definition sony4K CMOS sensor, the image effect is outstanding, and the color is gorgeous and real.
2. Using an embedded Linux system, the boot speed is faster, the system runs more stably, the function is more powerful, and it can effectively prevent viruses and other intrusions into the system.
3. Professional protection design, IP67 protection level can effectively prevent water and dust from entering
4. Industrial-grade plastic and structural design, bare metal can withstand 2.0 meters of free fall, the body and data will not be damaged.
5. Support HD image acquisition, resolution support 4K 30fps HD recording.
6. Support infrared night vision function.
7. Supports wired headsets for intercom and cluster calls.
8. Built-in full Netcom 4G module, supports 4G wireless transmission, can access the platform for centralized monitoring.
9. Built-in WIFI module, support WIFI wireless transmission.
10. Built-in GPS/Beidou positioning module, support platform positioning and trajectory playback.
11. Emergency alarm function, support short press alarm button, send alarm information to the platform function.
12. Low power consumption, large capacity replaceable battery design, a single battery supports more than 8 hours of continuous video recording.
13. Support direct connection of mobile phones through WIFI and video preview through APP.

1.2Product specifications

sistema operativo	Embedded Linux operating system
AV parameters	Video compression standards	H.264/H.265
	Video encoding resolution	3840*2160
		4K30fps/1080p@30fps/720p@30fps/ /720p@60fps/VGA@30fps/QVGA@30fps can be set
	Audio compression standards	G726/G711/ADPCM
	Entrada de audio	2-way, high-sensitivity MIC, wired headset
Positioning capabilities	Built-in high-sensitivity Beidou/GPS dual mode
almacenamiento	capacity	64G as standard
Internet	3G/4G networks	TDD/FDD-LTE、TD-SCDMA、EVDO、WCDMA
	WiFi network	Support 802.11b/n/g protocol, 2.4GHz
Other parameters	interfaz	Tipo C
		108°
	Infrared fill light	Apoyo
	LED indicator	LED de alta luminosidad
	Temperatura de funcionamiento	‘-20℃～+60℃
	Fuente de alimentación	5V/2A
	battery	3.8V /2900mAh
	Continuous working hours	≥ 7 horas
	Grado de protección	IP67/2.0m
	Host size	90mm*54mm*38mm
	Main unit weight	185gramo
