1920طقم مراقبة كاميرا DVR لشاحنة HD AHD x1080P 7″ 2 تقسيم الشاشة عكس نظام تسجيل النسخ الاحتياطي كاميرا وقوف السيارات للشاحنات
- Item Size: 7بوصة
- Model Name: 7″ Split Screen Monitor Truck Camera Kit
- نوع العنصر: Car Monitors
- Item Weight: 2500ز
- Placement: In-Dash
- Display Size: 7″
- دقة: 1024*600
- شهادة: لا أحد
- نوع المادة: ABS
- جهد التشغيل: 9-32V
- إدخال الفيديو: 2CH AHD Video Input
- Video System: NTSC & بال
- Input Signal: AHD720P/960P/1080P, CVBS Singal

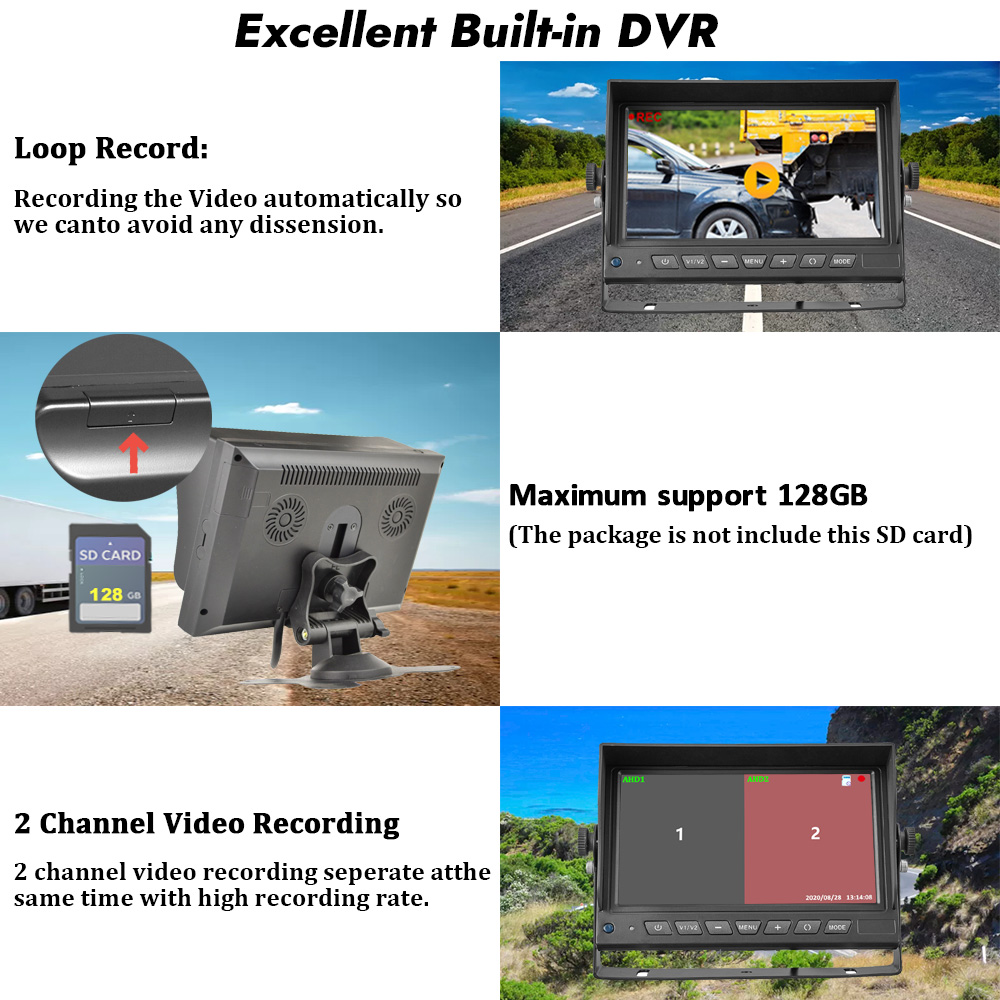

- DVR Recorder: يدعم
- Maximum Storage: 128GB
- Camera Sensor: GC2053 AHD Sensor
- Camera Pixels: 1920*1080ص
- Horizoltal Resolution: 1000TVL
- الموصلات: 4pin
- ضد للماء: IP68K
- Image: Mirror Image
【Upgrade Extension cable】
You can choose to turn on / off the mirror function of the camera as needed. على سبيل المثال, if you want to install one camera in the front of the vehicle and another camera in the rear. Now you can just flip one camera to get the correct image without affecting the image of the other camera.
Why does our reversing camera have no LED lights?
< p style=”, Roboto, Arial, Helvetica, sans-serif, simian;font-size: 14px; font-weight: 400; letter-spacing: normal; line-height: inherit; text-align: start; margin: 0px; padding: 0px;” align=”start”>Our reverse camera adopts latest lens and sensor chip, this is sufficient to deliver clear images in the light of reversing lamp.
فضلاً عن ذلك, the continuous lighting of the LED lights will affect the safe driving of the car behind.
【Upgrade Extension cable】
Double-Shielded Extension cable, High-quality pure copper core, which can achieve the best conductivity, prevent the loss of video signals and provide stable signal transmission.

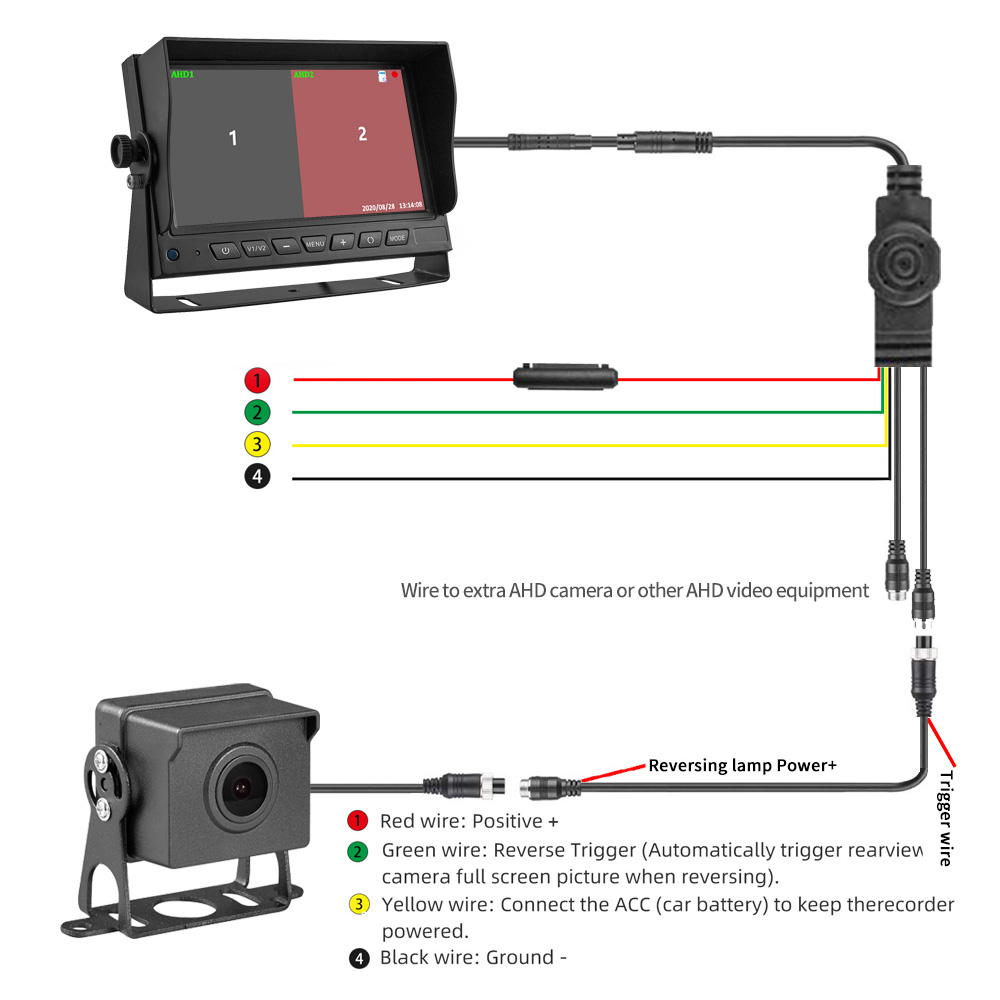

The red wire at the end of the video cable is the detection wire, which is an extra power cord inside the video cable. Its function is: you can easily get power from the rear through the reversing lights and use it for the front. Conversely, power can be supplied from the front to the rear.

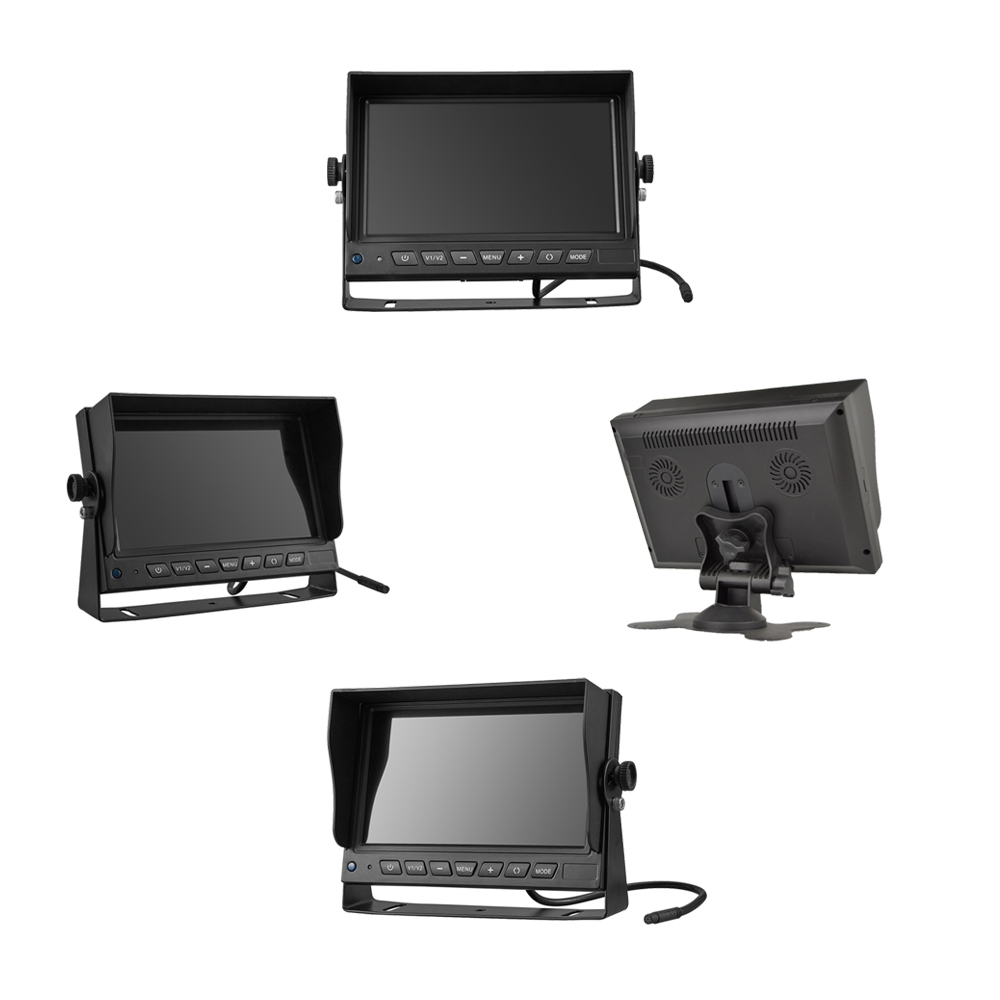

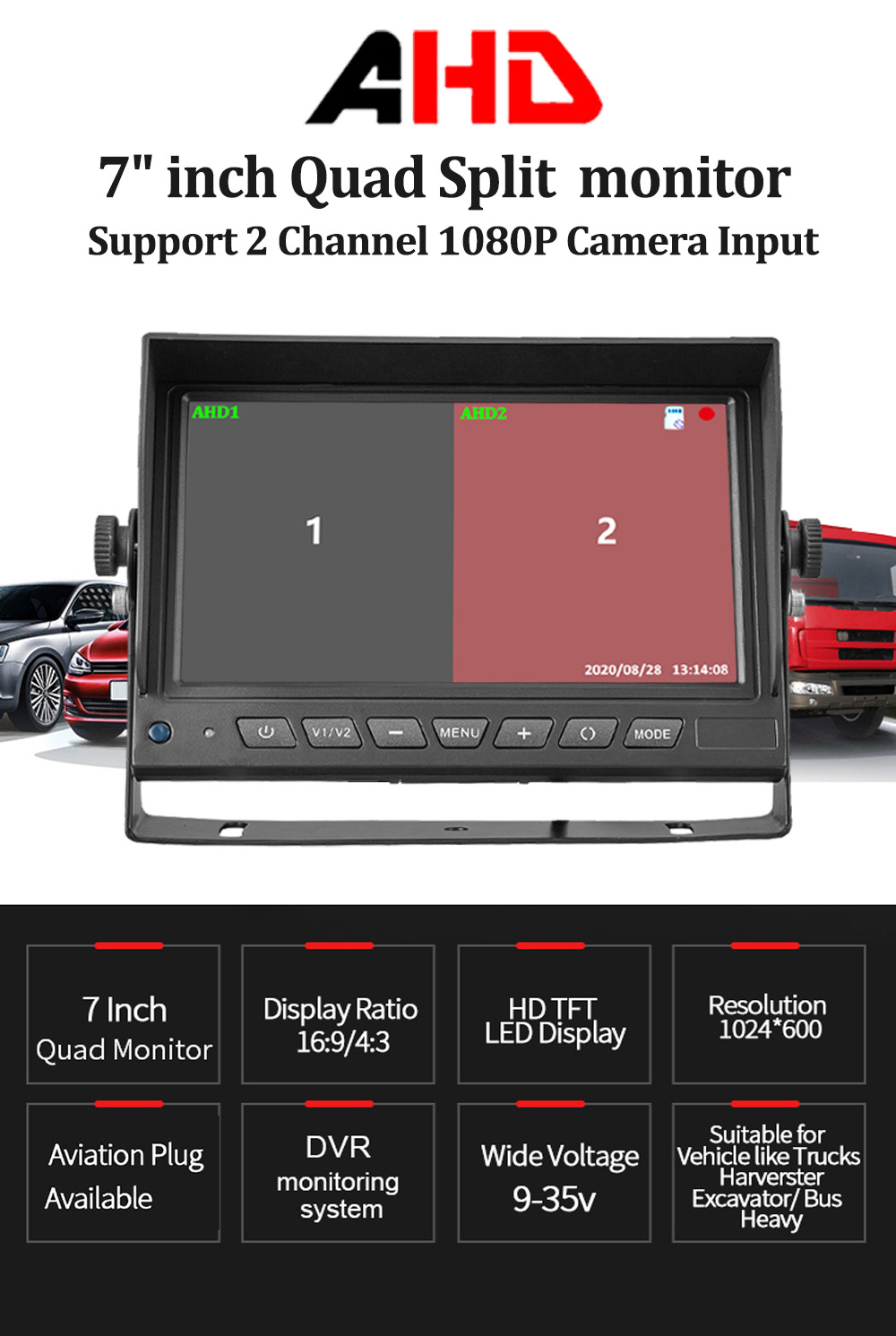

7″AHD DVR Monitor Specification
Screen Size: 7 بوصة

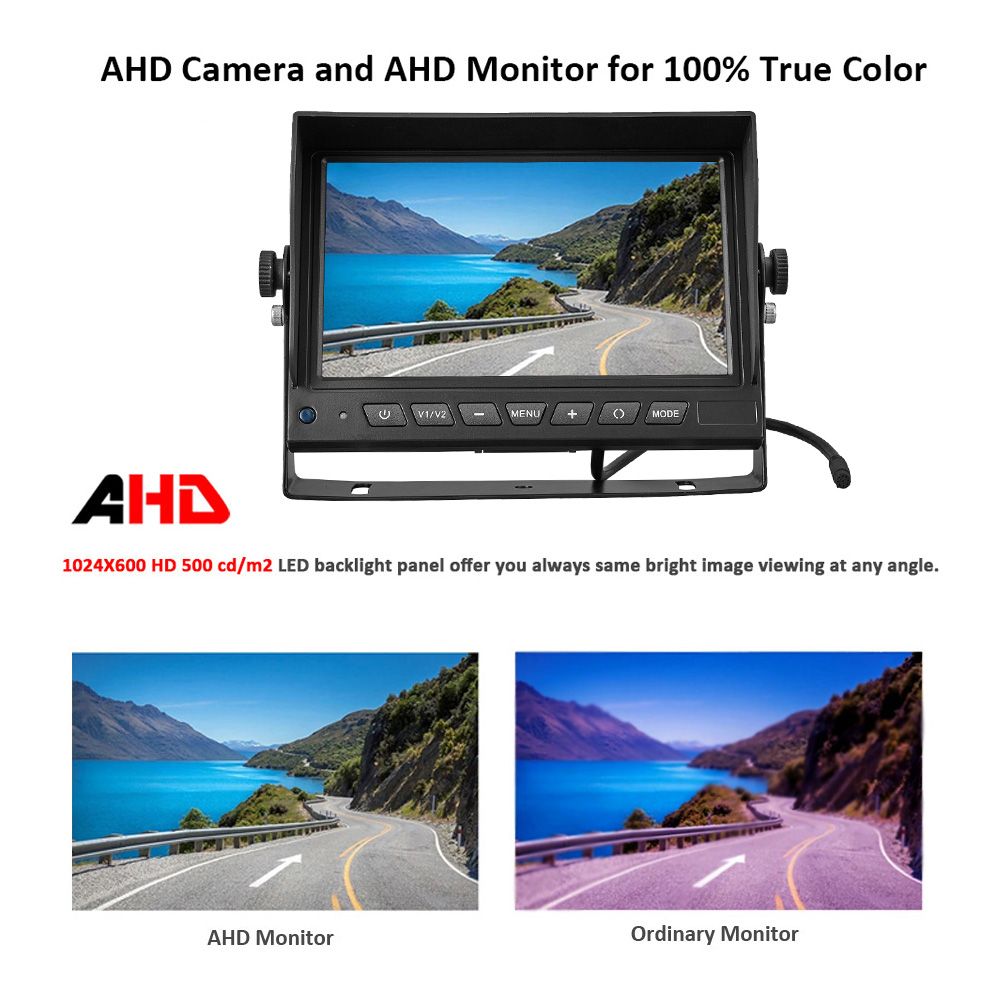

Display Component: Color TFT LCD
دقة: 1024*600
نظام التلفزيون: PAL/NTSC auto
Screen ratio 16:9
Housing Material: ABS
2 Split Screen Display Built-in DVR Recorder
Rear-view: AV2 AUTO reverse when trigger activated
زاوية العرض: up / down / left / right
Operate mode: Physical Button & التحكم عن بعد
جهد التشغيل: DC9-32V
Please Note: CR2025 button battery (not included)
AHD Rear View Camera
مادة العدسة: زجاج
مزود الطاقة: DC12-24V
Signal System: بال
دقة:1920×1080P
Lens view angle: 120 degrees
Image Sensors: AHD Sensor
Parking line： No parking line
Minimum lighting: 0.1Lux
سمات: IP68 مقاوم للماء
Dynamic Range: >60ديسيبل

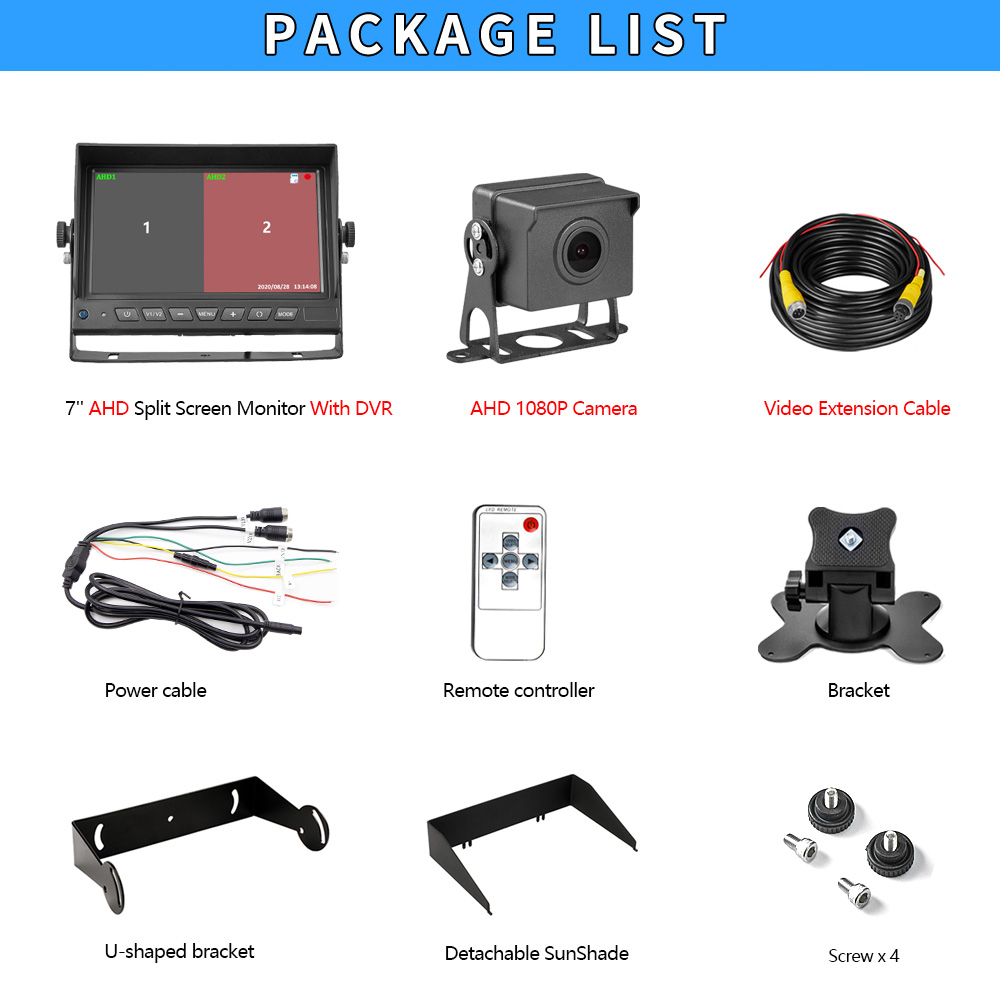

Package Included:
1 س 7 inch AHD DVR Monitor
1 x AHD Rear View Camera
1 x Power Cable
1 x Video Extension Cable

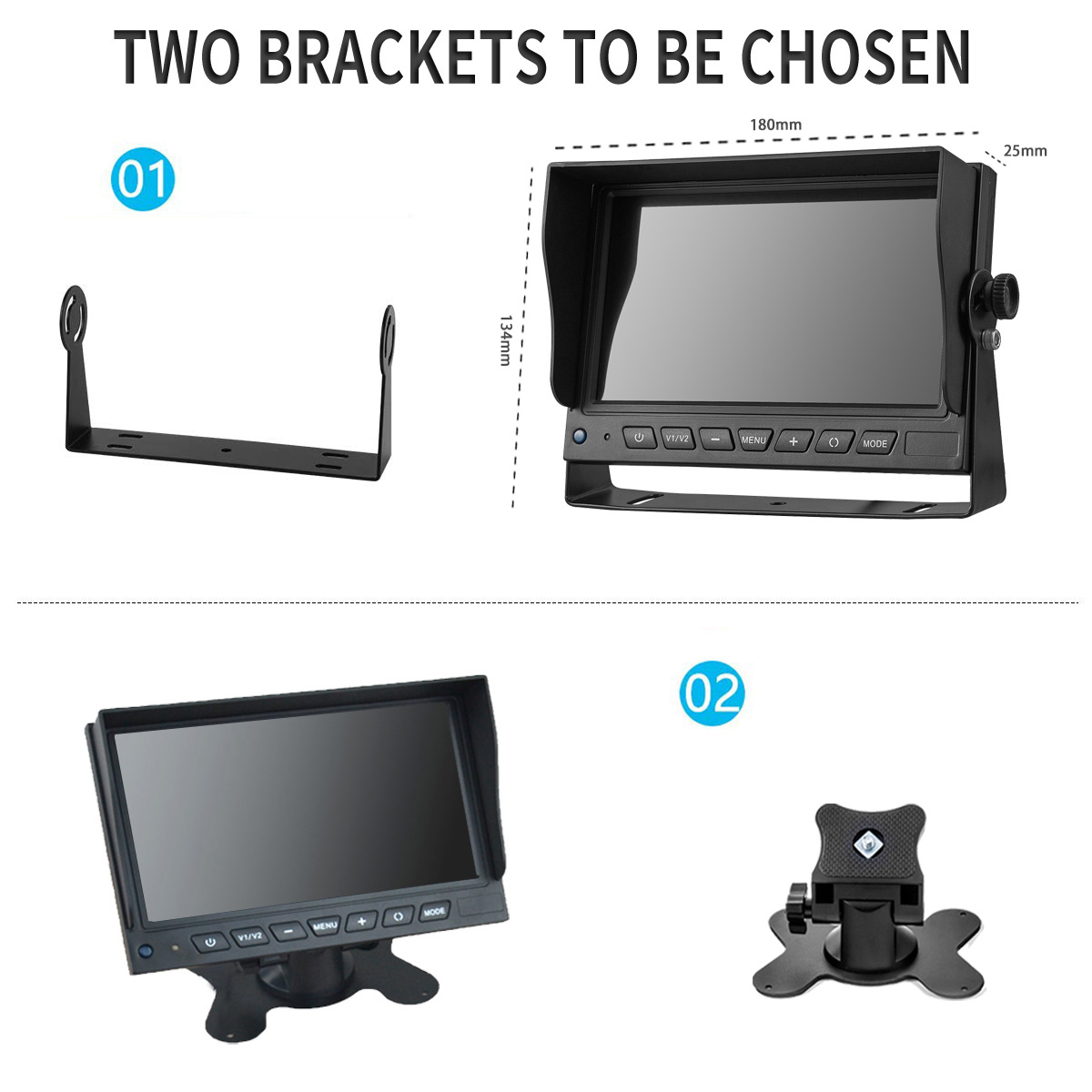

1 x Bracket
1 x U-shaped Bracket
1 x Detachable SunShade
1 x Remote Controller
1 x Monitor manual
4 x Screw
