170° Cámara de visión trasera de coche de trayectoria AHD 720P para Holden Buick Vauxhall Opel visión nocturna inversa 4 pin Estacionamiento de vehículos
- Línea guía: Sí
- Tipo de material: abdominales
- Longitud del cable de vídeo: 6METRO
- Material de la lente: Vaso
- Cableado o Inalámbrico: cableado
- Tipo de alarma: Vehicle Backup Cameras
- Tipo de alarma: Accesorios
- Tipo de alarma: Lado trasero
- Material de la carcasa: Plástico
- Píxeles: AHD 1280*720 or CVBS 960*720 Opcional
- Ángulo de visión: 170 Grado
- Visión nocturna: Apoyo
- Impermeable: Apoyo
- Fuerza: DC 12V~24V
- sistema de televisión: NTSC
- Balance de blancos: Auto
- Trajectory: Dynamic Trajectory Parking Line
- 6m Video Cable: Pure Copper Cable
- Use: reverse reversing 4pin vehicle parking backup camera

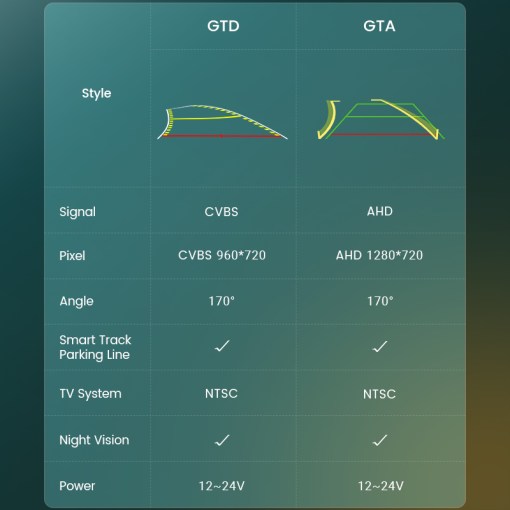

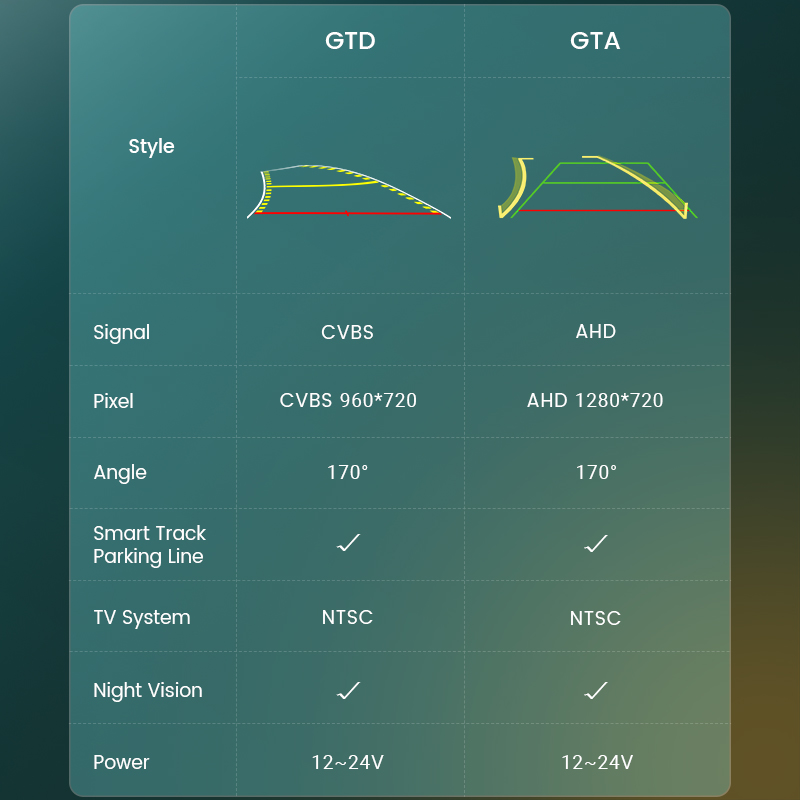

2 Cameras Style Optional
Consejos, About GTA Style: Please check whether the Android unit supports an AHD camera!
If AHD cannot be selected, AHD cameras are not supported!
Go to Car settings >> Factory settings >> Reverse (picture) settings >> Select AHD
Cameras with CVBS video signals are universal for all monitors, but AHD will only work with AHD monitors!
AHD Camera, Analog High Definition Technologie

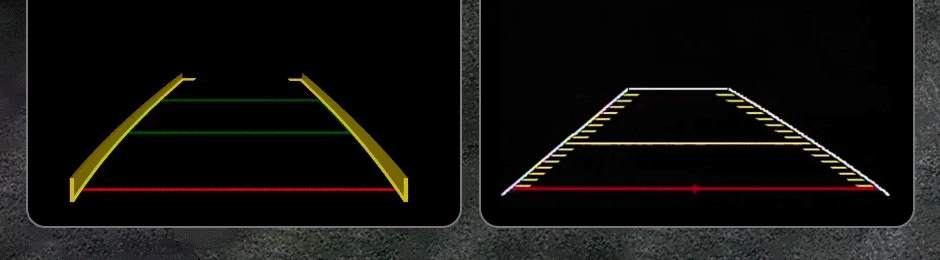

Support Intelligent Dynamic Trajectory (GTA/GTD Style)
Visión nocturna superior a la luz de las estrellas
Pure Copper 6m Video Cable
12V-24V Integrated Step-down Module
Installation Diagram

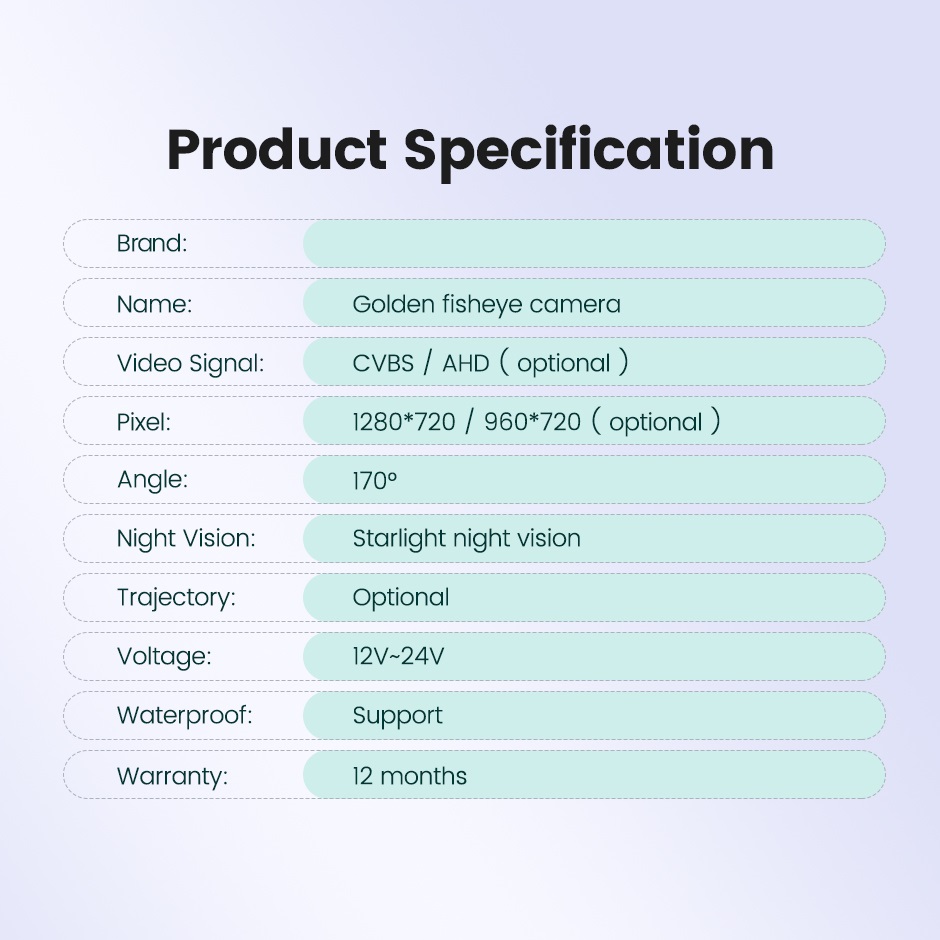

Product Specification

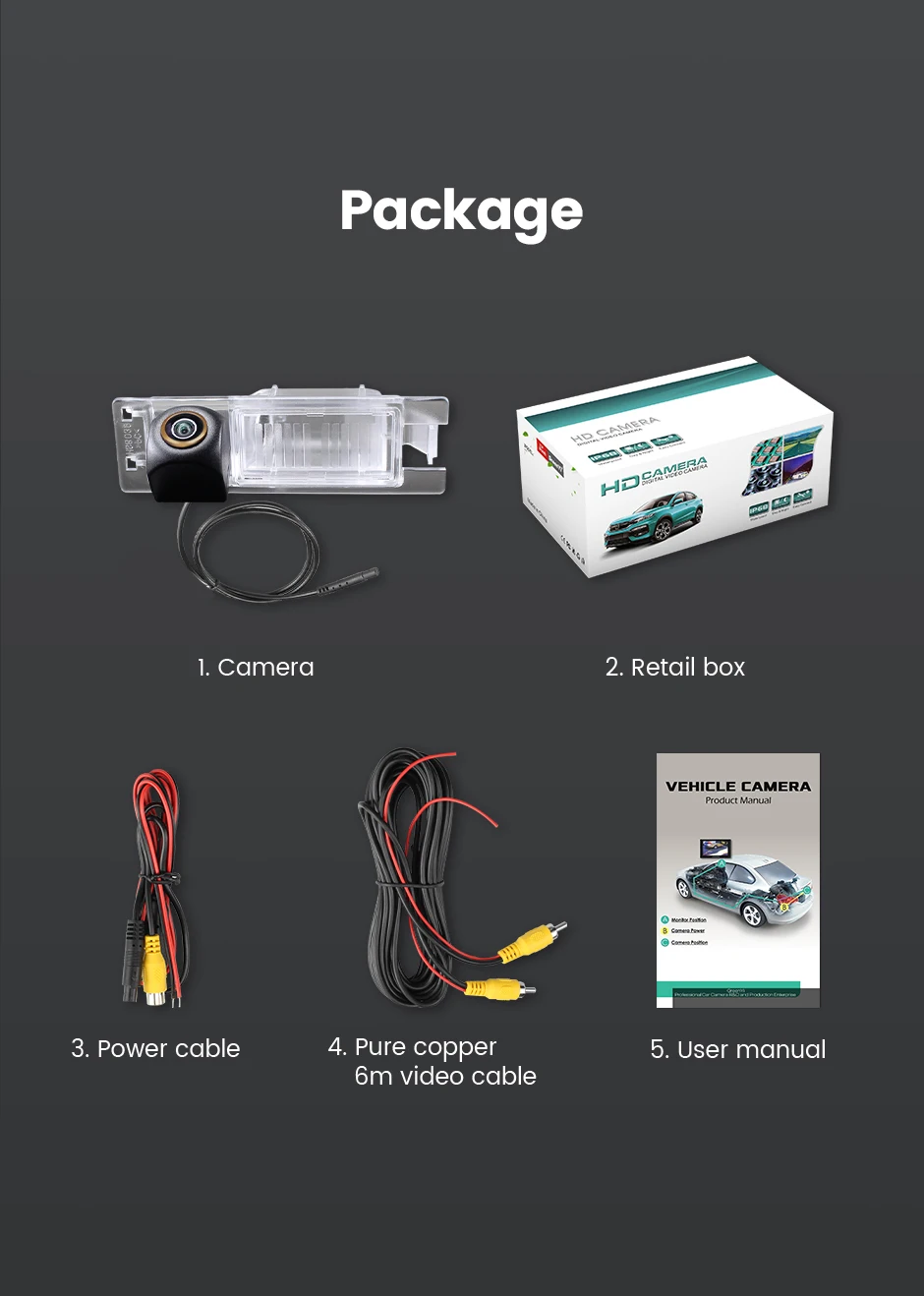

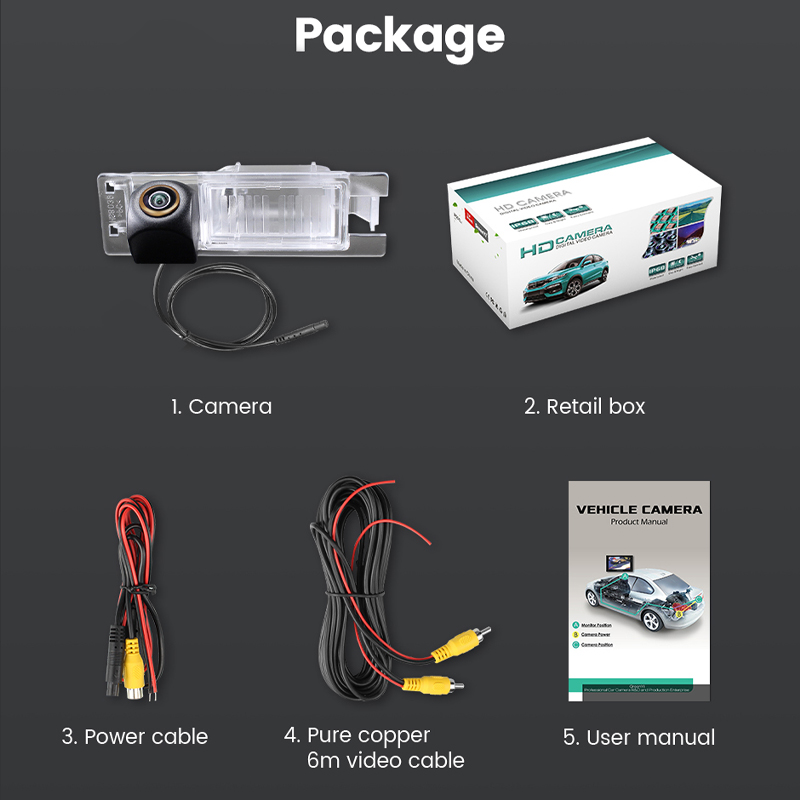

Paquete
1. Rear view camera
2. Caja de venta al por menor
3. Cable de alimentación
4. Pure copper 6m video cable
5. manual de usuario
Preguntas frecuentes：
How to choose a rearview camera that can be suitable for my car model?
A) According to the main car model, search in the shop, there will be several types of cameras, and then buy according to your actual original license plate/ handle.
B) Or you can measure your size and consult customer service to confirm the camera model.
Tip: because there may be slight differences between cars produced in different countries, please check the size before buying.
After connecting the rearview camera, the screen shows no signal, a black screen, and no picture, what should I do?
A) Please check your connection, red trigger line should connect to your reverse light and monitor the reverse-in cable.
B) Please check your signal format, and choose the right signal to run the camera.
do) If your monitor has an AUX-IN function, you can connect to the AUX-IN.
Tip: CVBS cameras can test the performance on the TV. Universal cameras with 4Pin plugs can only be installed with our cables. You can consult customer service if you encounter any problems during the installation process.
After connecting the rearview camera, the screen shows black and white, what should I do if there is no color?
A) Choosing the wrong camera system(such as PAL/NTSC) will cause the screen to be black and white. Please select the right system to run the camera and restart the camera power. CVBS camera is NTSC system, AHD1080P camera is PAL system.
B) Please check whether the 6M line is normal, please replace it with another 6M cable to test the camera.
How does the dynamic guideline rear view camera work?
The dynamic trajectory camera adjusts the guideline automatically according to the moving position and speed of the car’s body and angle, it does not move according to the steering wheel. The dynamic trajectory camera can’t disable the guideline.
