Caractéristiques
- AV Resolution:1024*R.G.B*600 (Résolution: 1024 x 600)
- Back Light Luminance： LED,500/㎡
- View angle: 180 degré
- 1 2 3 4 5 6 7 8 channel CVBS AHD video input, support 720P/ 960P/1080P
- Video Compatibility: CVBS/ AHD/ TVI
- 1-way audio input(V2)
- Automatically switch to V2 with reverse reference line when reversing
- System: COPAIN& NTSC auto-switching
- Alimentation: DC12V-36V input, 12V output
- Température de travail:-20℃ to 70℃
- Température de stockage:-30℃ to 80℃
- Taille: 257*170*33mm

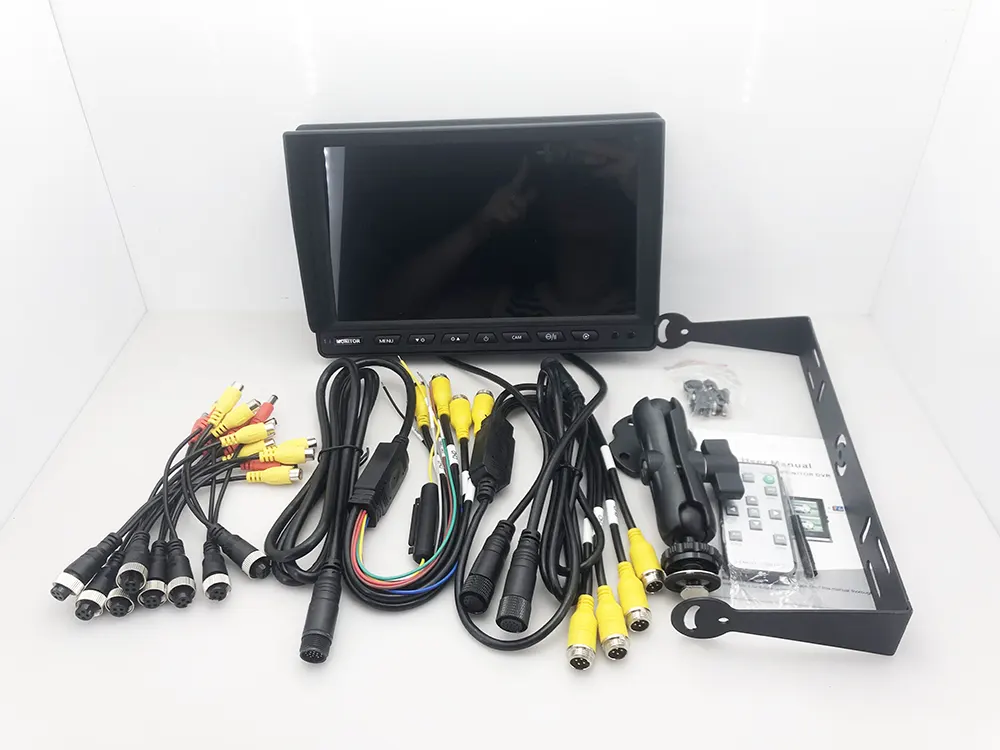

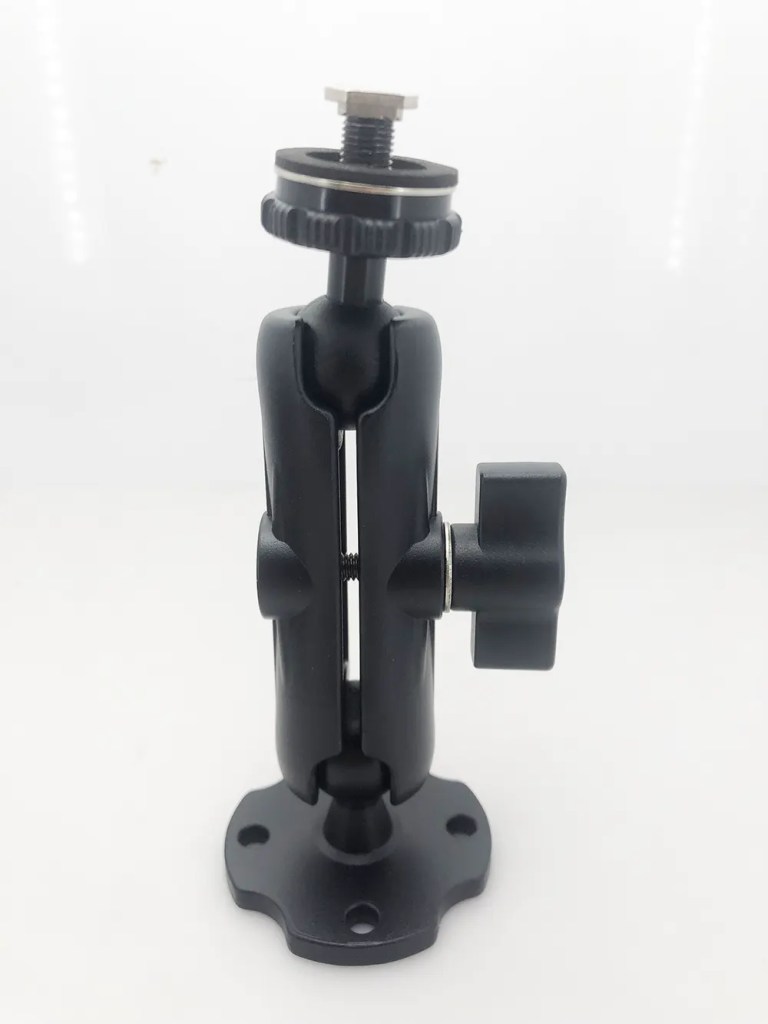

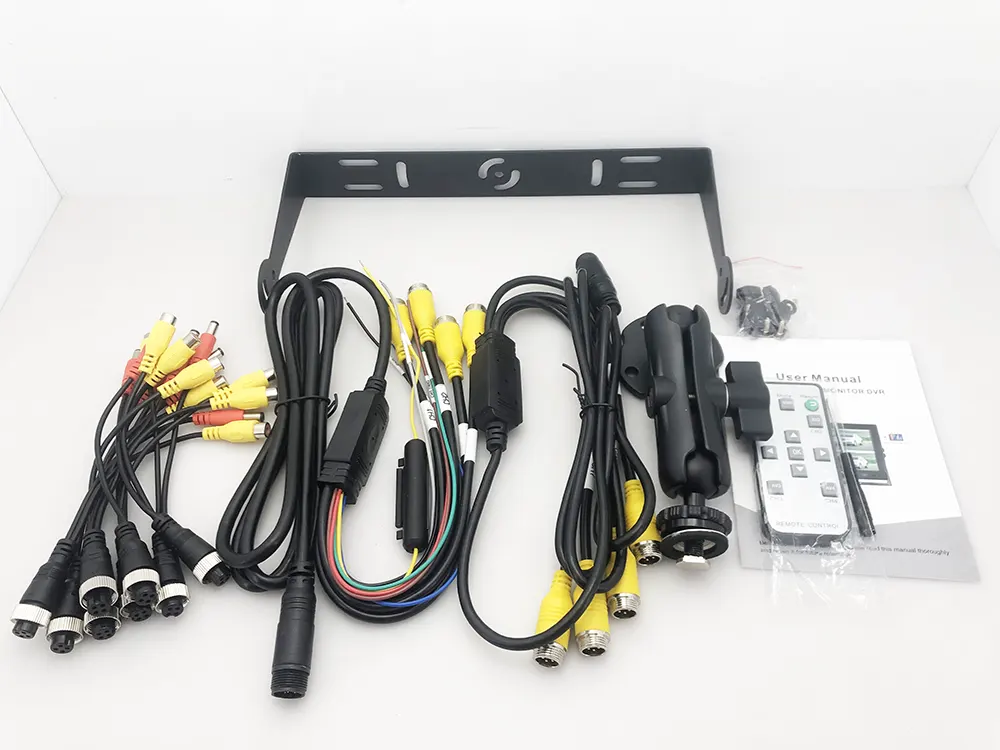

- Accessories included: Remote controller, Power supply cable, User manual, Support, the Connector conversion line
- Moniteur: 10,1“ HD screen
- System: PAL/NTSC 50 /60Hz
- Rapport hauteur/largeur: 16:9
- Video resolution when recording: 1280x720P, 1280x960P, 960H
- Compatible signal: AHD 720P @ 25/30, 960P @ 50/60, 1080P @ 25/30, CVBS 960H
- Inputs: 1, 2, 3, 4, 5, 6, 7, 8 AHD/CVBS channel
- Luminosity: 500-700cd/㎡
- Recording: Oui, 4 chaînes
- Cyclic recording: Oui

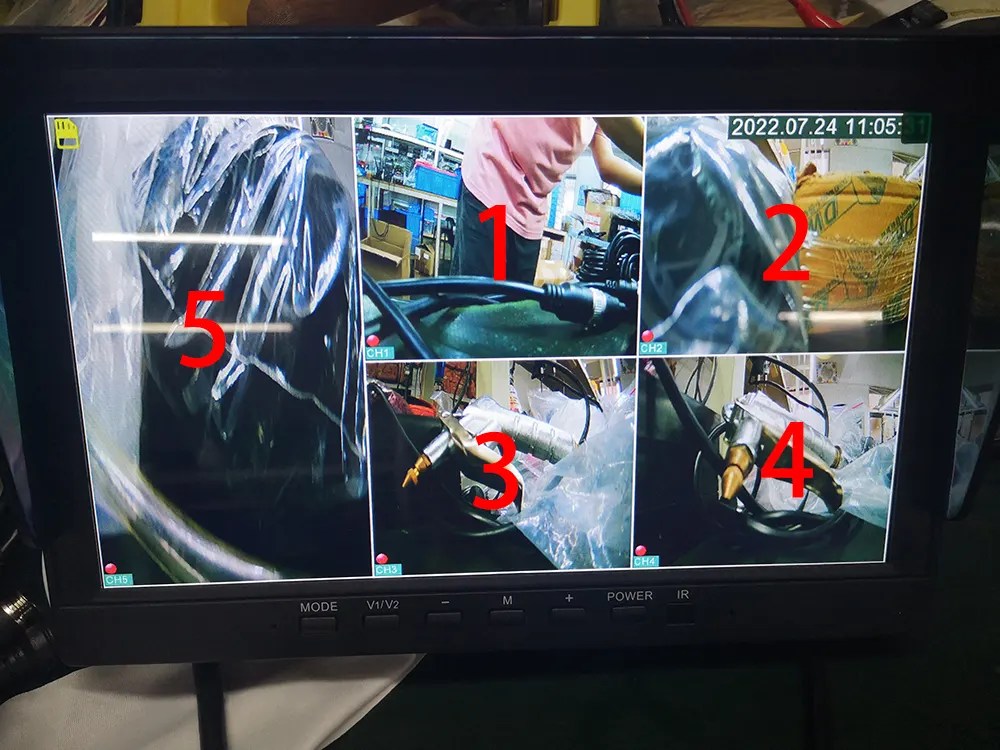

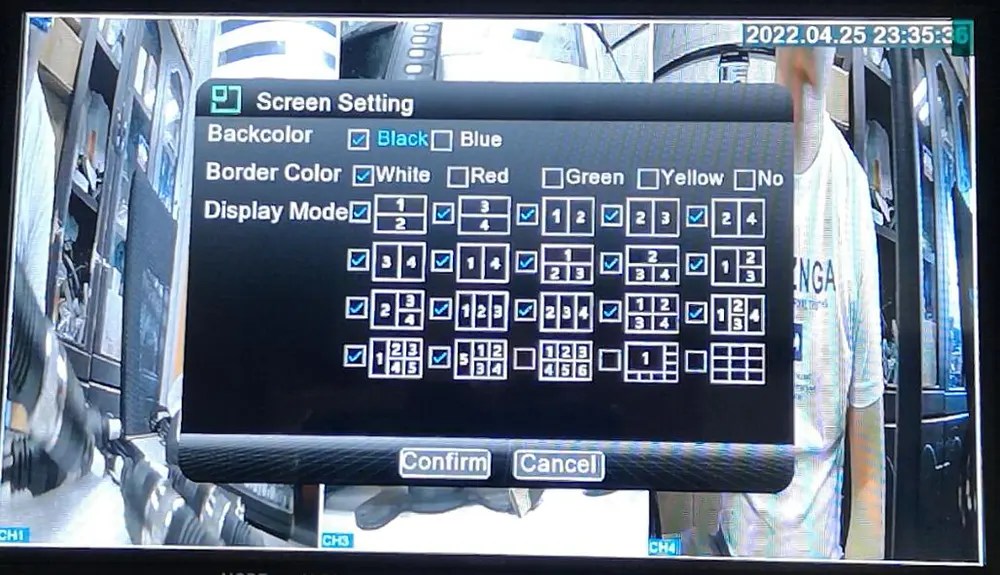

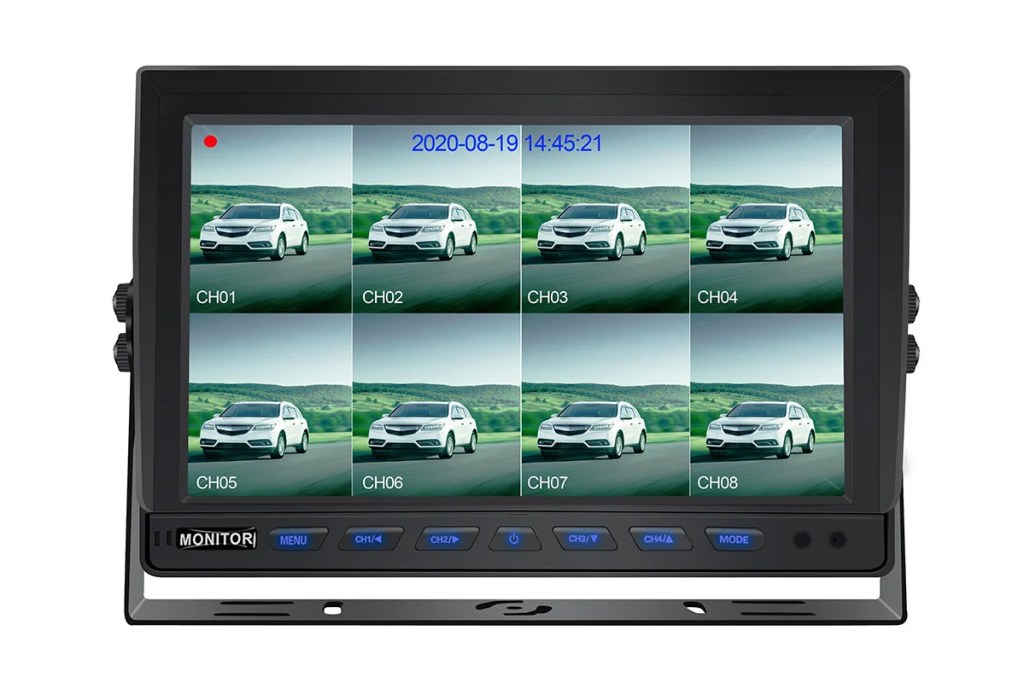

- Display layout: 1/2/3/4/5/6/7/8 caméra
- Format vidéo: AVI

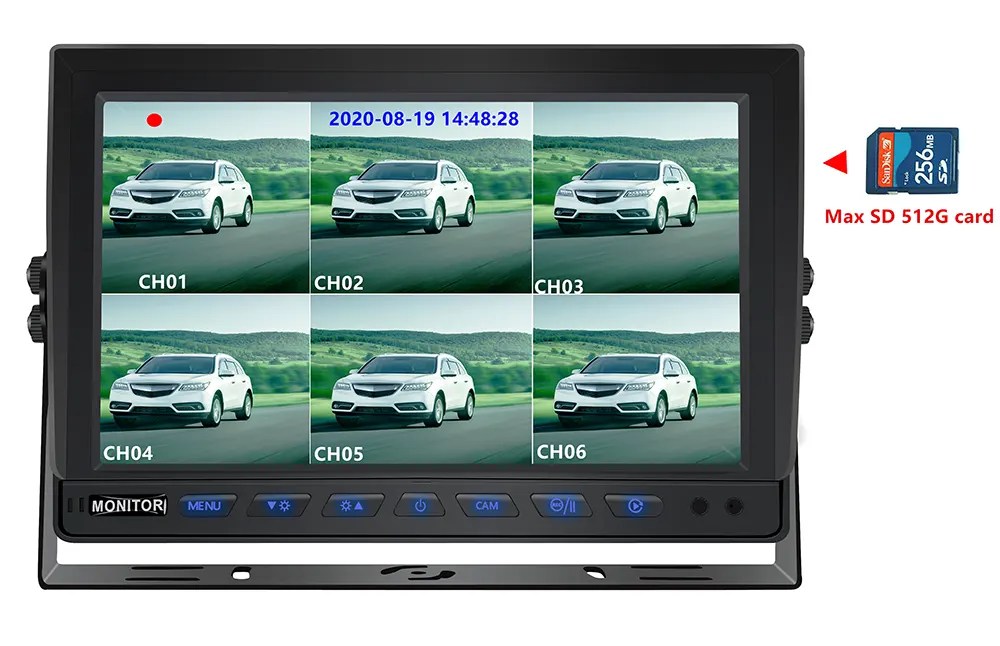

- Memory: support SD card class 10, jusqu'à 256 GB (memory card not included)
- Possibility to adjust the OSD: brightness, contrast, volume, language
- Alimentation: DC 12-36V (voltage 13V is required for power supply even with a camera)
- Output voltage: DC + 11,5V/3A
- Entrée audio: yes 1x
- Connecteur: 4pin connector
- Color: Noir
- Remote control: Oui

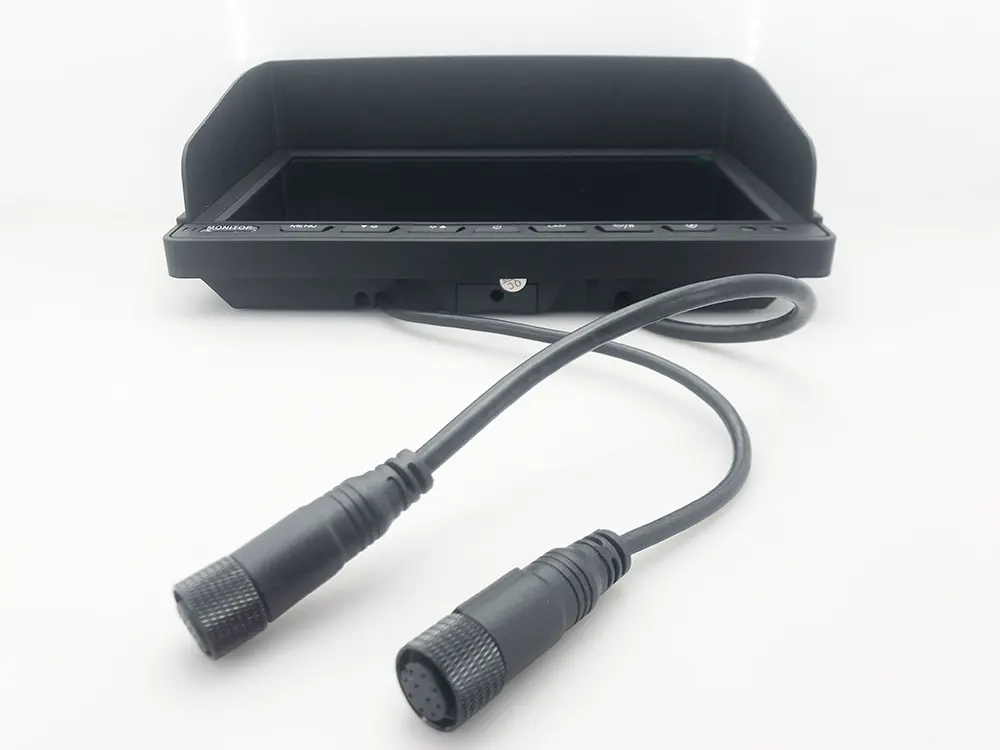

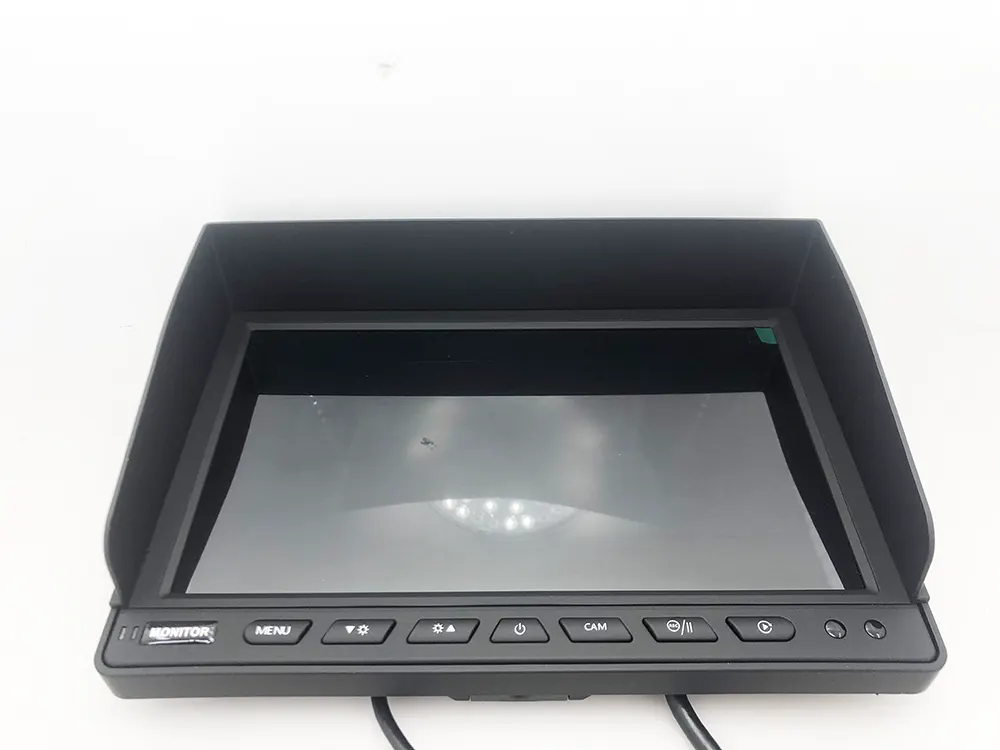

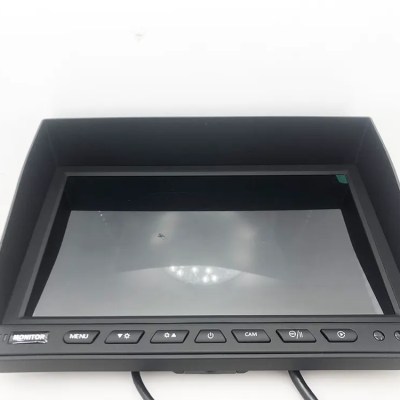

- Sun visor: Oui
- Température de fonctionnement: -20 to 70° C

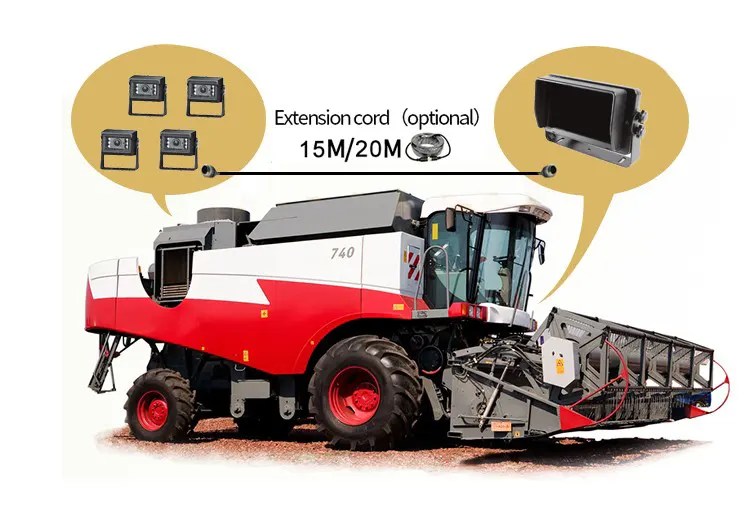

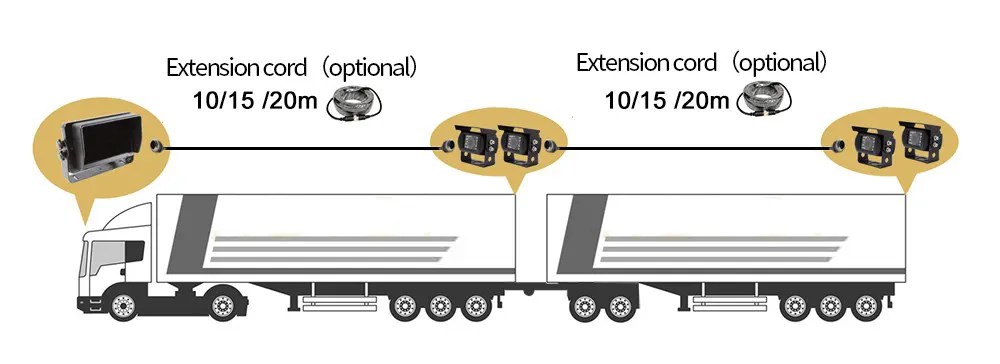

Up to 8 cameras can be connected to the monitor – AHD or CVBS. Depending on the need and type of vehicle, you can choose and combine cameras from our offer to meet your requirements. The cameras are connected to the monitor via 4-pin cables. The monitor has cables for connecting the cameras and powering the monitor.

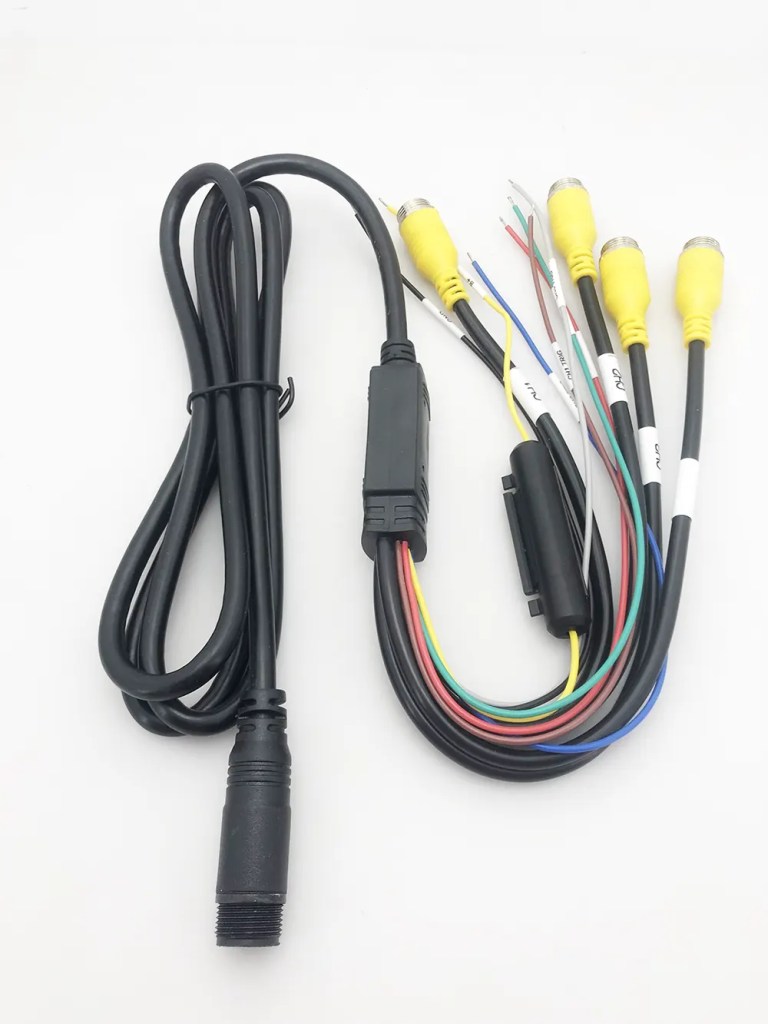

The cameras are powered directly from the monitor, so it is no longer necessary to connect them separately to the source, which simplifies installation and you can place the camera anywhere in the vehicle. The monitor also includes 4 switching cables, through which you can connect the selected cameras to the reversing lights. When the reverse gear is engaged, the selected reversing camera will automatically appear on the monitor—support for cyclic video recording and parking (24-hour parking monitoring function).
