Módulo binocular GC2053 SC200AI é adequado para reconhecimento facial RV1126/1109 RK3568 RK3399

Módulo binocular GC2053 SC200AI é adequado para reconhecimento facial RV1126/1109 RK3568 RK3399

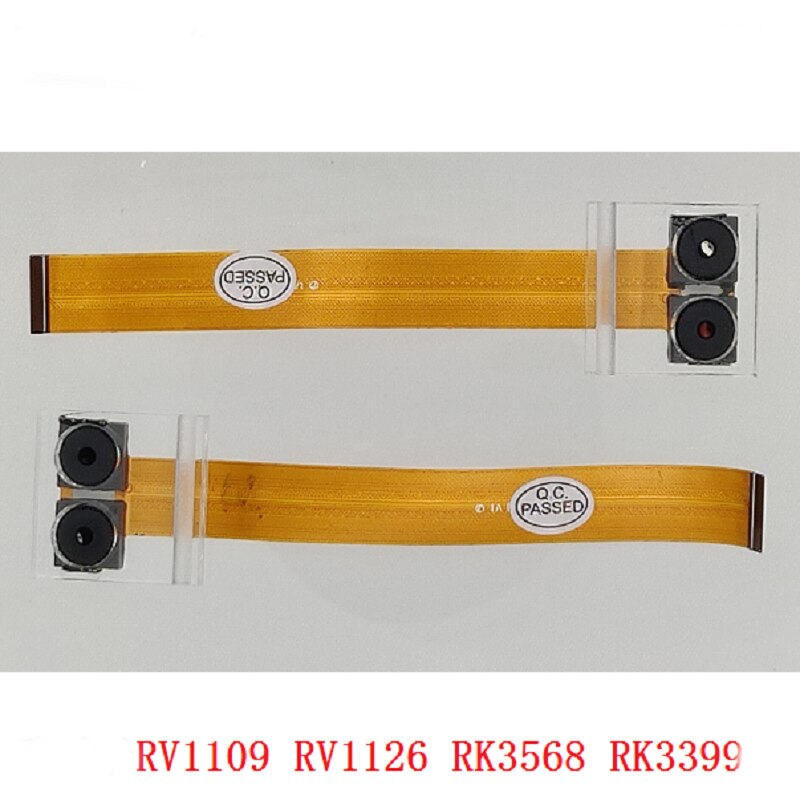

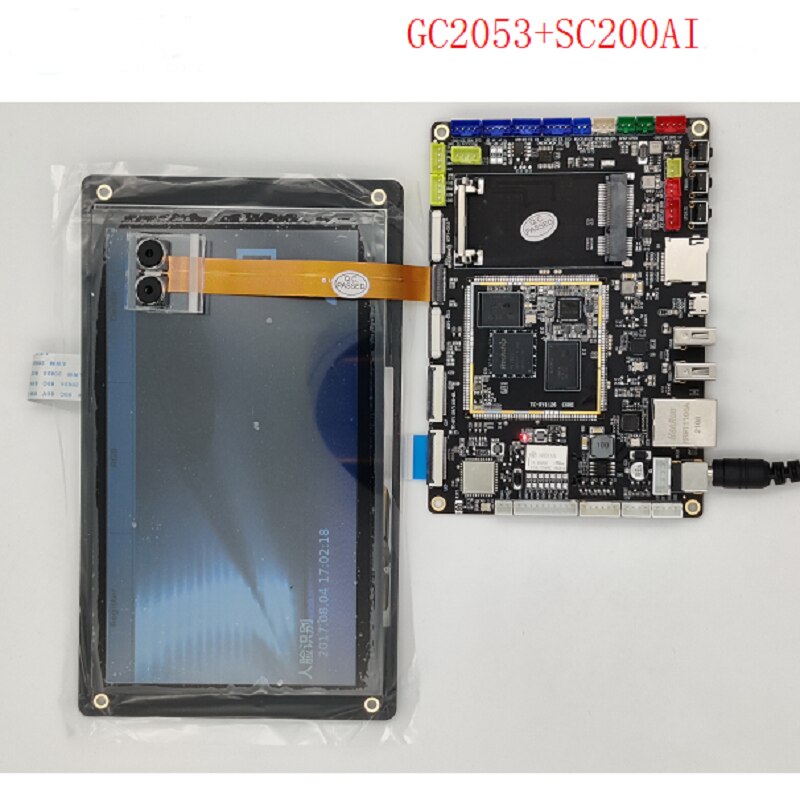

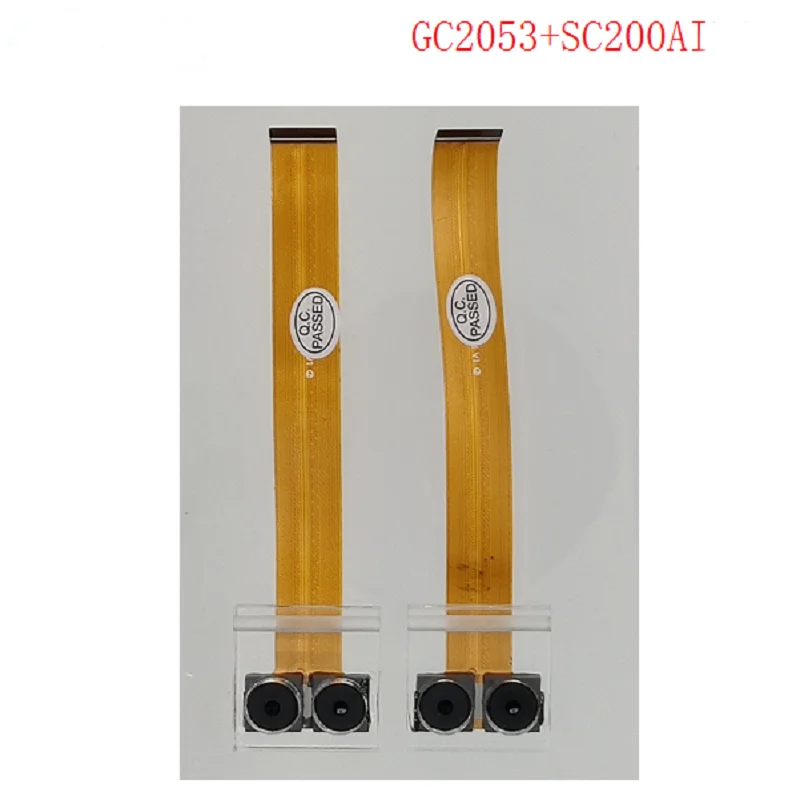

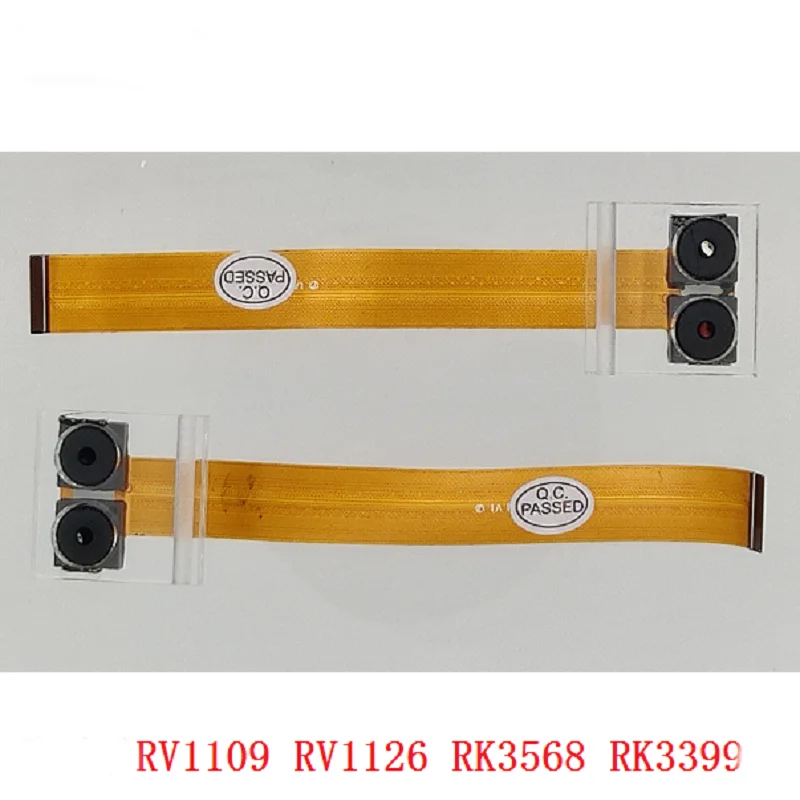

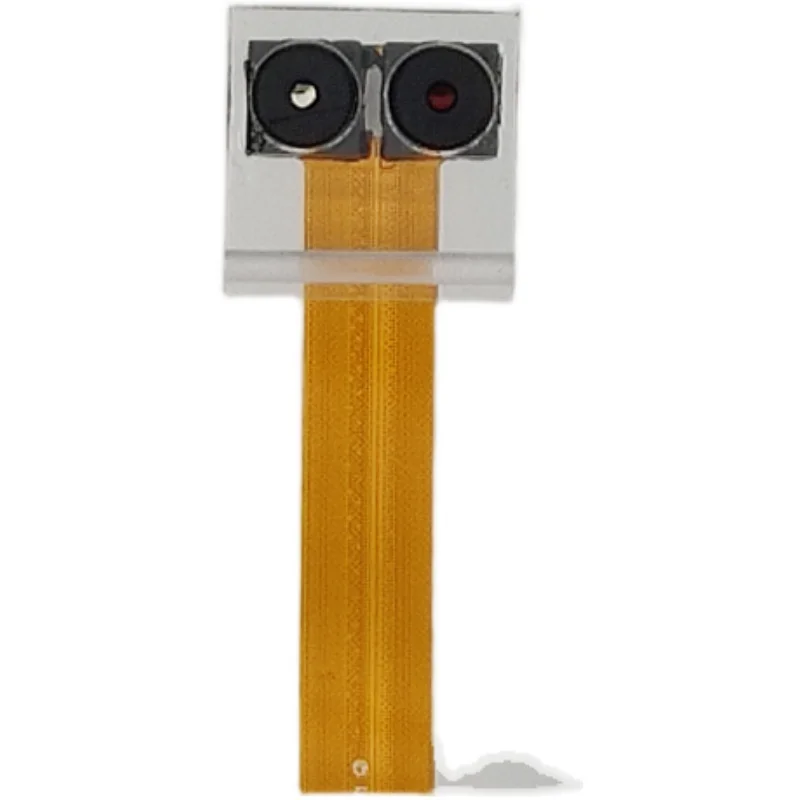

GC2053 + SC200AI binocular module

Suitable for RV1109, RV1126, RK3568, RK3399, RK3399pro, and other platforms

Technical parameters

SENSOR

• GC2053
• sC200AI

Lens Size

• 1/2.9
• 1/2.8

Most effective pixels

• 1920*1080
• 1920*1080

Data Format

• YUY/MJPG
• YUY/MJPG

Pixel Size

• 2.8*2.8um
• 2.9*2.9um

dynamic range

• 81DB
• >100DB

Lente

• FOV :D= 71.2°
• Optical length :8.25Milímetros
• lens construction: 2G3P
• mount: M8*P0.35mm

focusing

• (Fixed focus)

Taxa de quadros

• 3ofps

auto control

• Saturation, Contrast, acutance, White balance, exposure.

E

• 850nm 120°

Tensão

• 1.2-3.0V

working current

• MAX 500mA

Conector

• MIPI

Storage Temperature

• -20c to +70c

other

• Dual SENSOR black and white + color

Compatible systems

• Windows XP ( SP2, SP3 ). Vista. 7,8,10
• Linux or Os with uvC driver

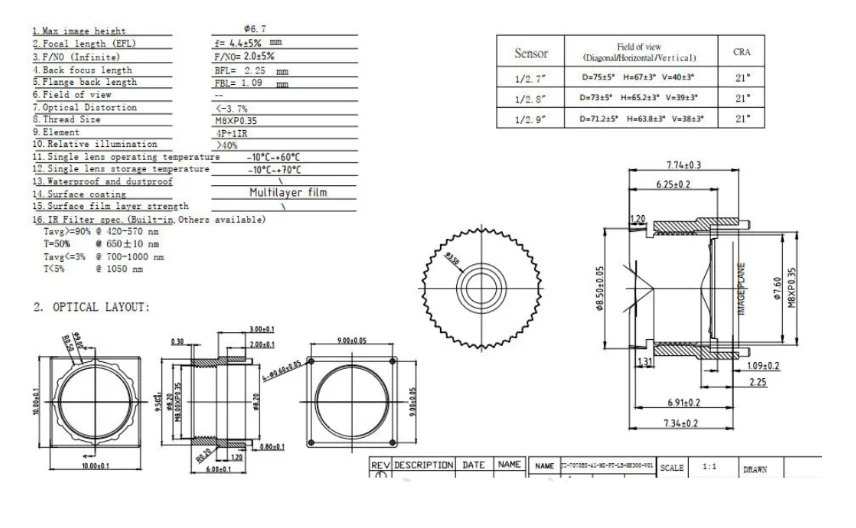

Lens Specifications
