Receptor sem fio à terra COFDM de controle remoto profissional de 100km
- Frequency/video: 300MHz – 6G(can be customized)
- Fonte de energia: DC12V
- Largura de banda RF: 2/2.5/4/8MHz(can be customized)
- Constellation: QPSK,16Controle de qualidade
- LCD monitor: 17inch Samsung LCD screen
- RF Level Input: -105dbm/2MHz, -95dbm/4/8MHz
- Data encryption: AES 128bits
- Tamanho: 1198*419*234milímetros
- Peso: 23kg

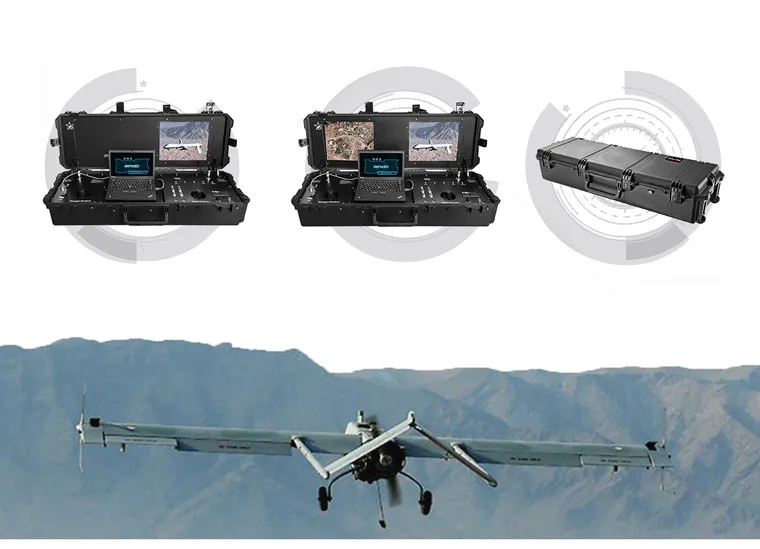

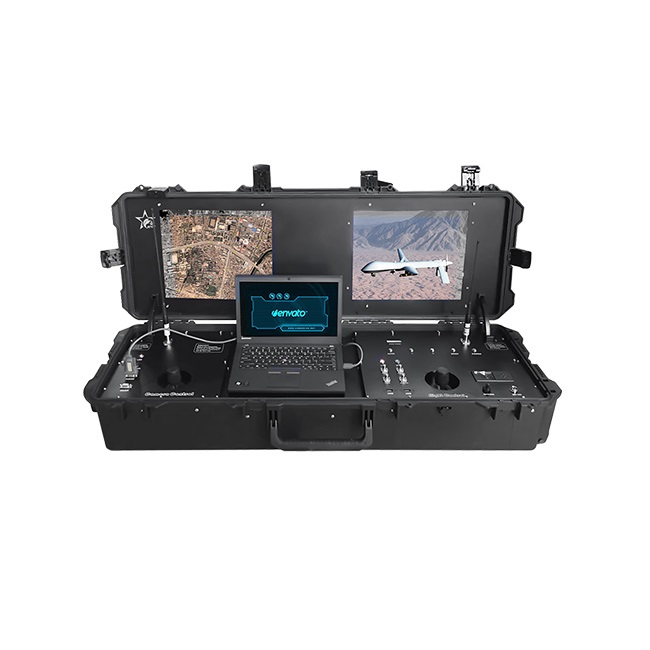

The is a fully integrated professional ground control station designed into a rugged Pelican case with dual 17-inch Ultra-light HD LCDs that are fully sunlight viewable.
This is an effective ground control station, which integrated wireless cofdm video downlink receiving, and data radio controlling, including drone telemetry downlink and command control uplink. With joysticks to control the camera and drone manually, the ground station fits all kinds of unmanned vehicle wireless communication applications.
The serial access port of the control station to the computer is available for software like mission planner to route setting and controlling of UAV. Another tailor solution for computer usage is to embed it into the ground station as a completed smart ground control station system.
Built with a 20A battery to support outdoor applications, the control station allows video playback as it has a 120G hard disk for real-time video recording.

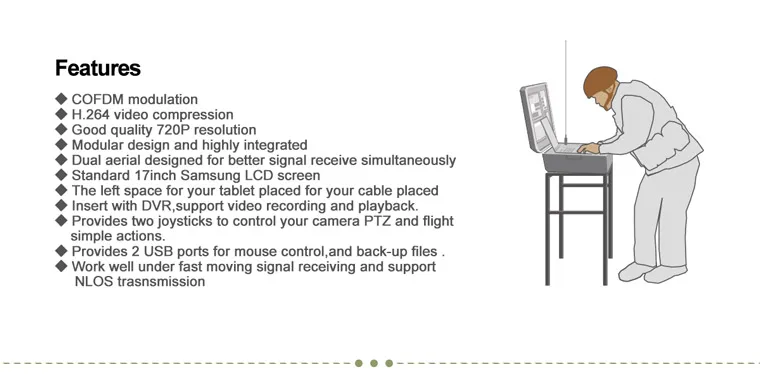

Características:
1. COFDM modulation of video receiving
2. H.264 /MPEG video decoding;
3. Supporting flight control data video audio receiving;
4. Up to 120G SSD for real-time wireless video recording;
5. Support computer integrated;
6. Joysticks embedded for camera and unmanned vehicle controlling

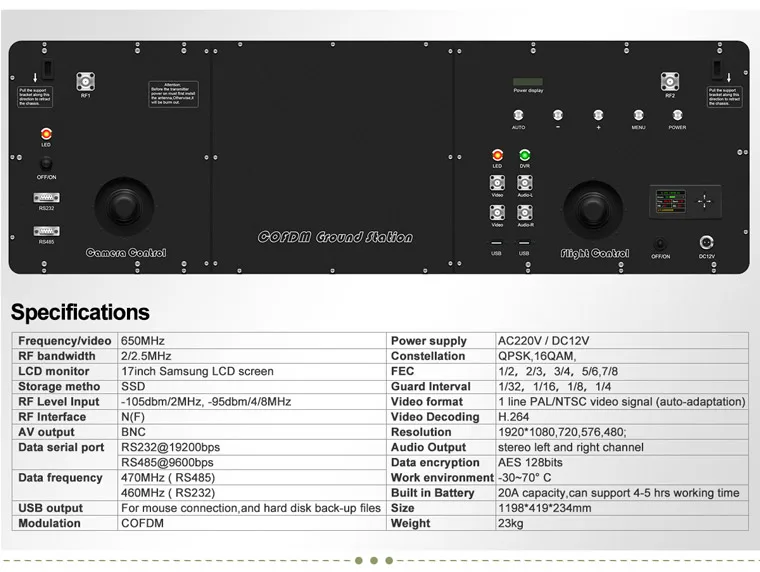

| Modelo | |
| Frequency/video | 300MHz – 6G(can be customized) |
| Fonte de energia | DC12V |
| Largura de banda RF | 2/2.5/4/8MHz(can be customized) |
| Constellation | QPSK,16Controle de qualidade, |
| LCD monitor | 17inch Samsung LCD screen |
| FEC | 1/2,2/3,3/4,5/6,7/8 |
| Storage method | SSD |
| Guard Interval | 1/32,1/16,1/8,1/4 |
| RF Level Input | -105dbm/2MHz, -95dbm/4/8MHz |
| Formato de vídeo | 1 line PAL/NTSC video signal (auto-adaptation) |
| RF Interface | N(F) |
| Video Decoding | H.264/MPEG-4 |
| Saída AV | HDMI |
| Resolução | 1920*1080,720,576,480; |
| Audio Output | stereo left and right channel |
| Data encryption | AES 128bits |
| Data frequency | 230 – 470MH ( RS485) /230 – 470MH ( RS232) |
| Work environment | -30~70° C |
| Built-in Battery | 20A capacity can support 4-5 hrs working time |
| USB output | For mouse connection, and hard disk backup files |
| Modulação | COFDM |
| Tamanho | 1198*419*234milímetros |
| Peso | 23kg |
Twelve months free warranty for equipment;
Three months for components;
Replacement parts will be charged after one year.
