Rockchip RV1126/ RV1109 Gold Finger Development kits Quad-core ARM Cortex A7 32 бит 1 ГБ 8 ГБ Поддержка Linux Buildroot
- Demo Board Type: ARM
- ROM Capacity: 8GB
- Номер модели: RV1126 Gold Finger Development Board
- Memory Capacity: 1GB
- Integrated Feature: 10/100/1000Mbps
- Интерфейс: USB OTG
Примечание: Please note the type that you want:
Bundle 1:RV1126 Gold Finger Development kits + 7-inch Screen
Bundle 2:RV1126 Gold Finger Development kits
Bundle 3:RV1109 Gold Finger Development kits+ 7-inch Screen
Bundle 4:RV1109 Gold Finger Development kits
Bundle 5:RV1126 Gold Finger Development kits + Screen + Binocular Camera

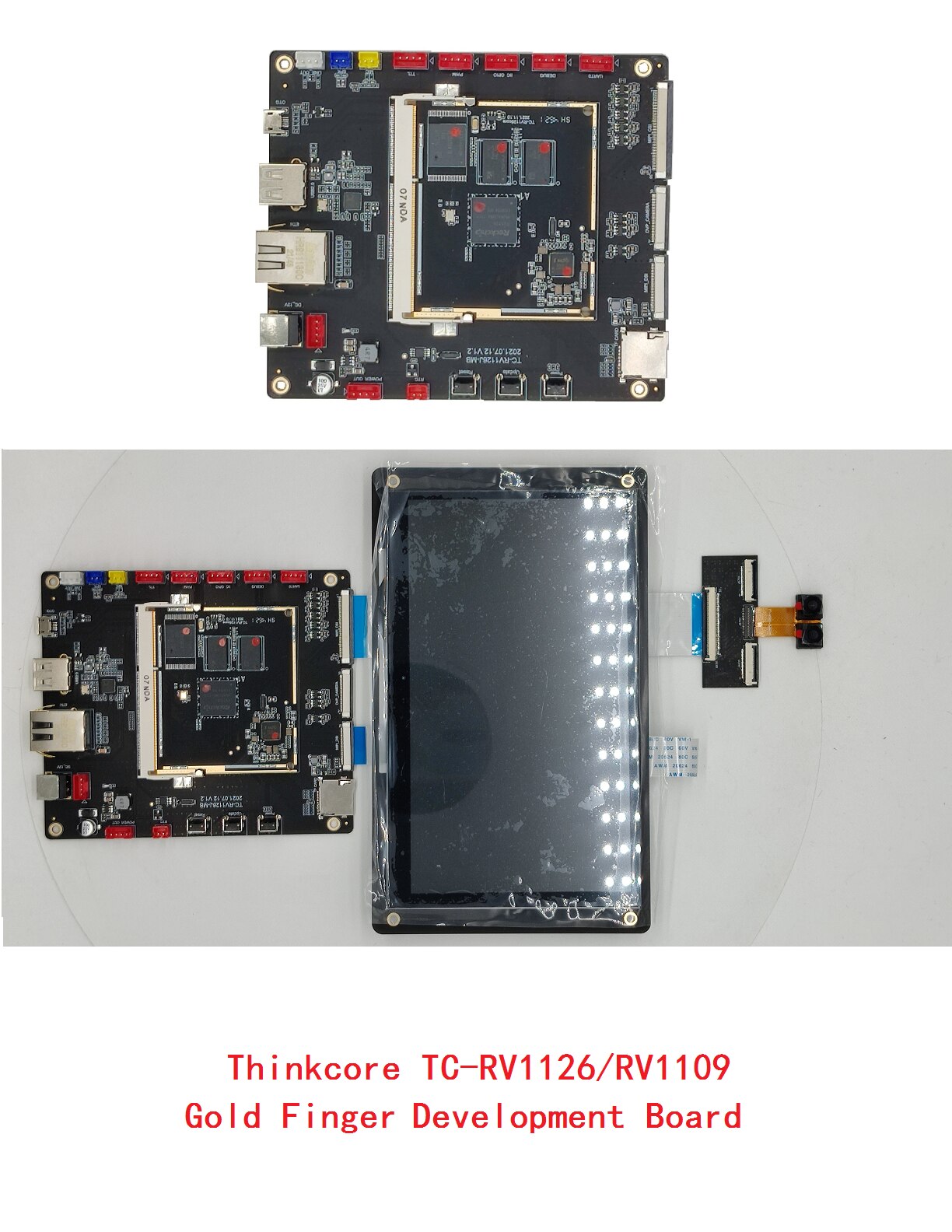

RV1126/RV1109 Gold Finger Development Board
Размер:108mm*124mm
Low-consumption AI vision processor Rockchip RV1126, с 2.0 Tops NPU
Supports 4K H.254/H.265@30FPS and multi-channel video encoding and decoding
Rich interfaces, Easy to insert and pull out with Gold Finger SOM
Supports Buildroot+QT OS -occupies small space, starts fast
Brief Introduction

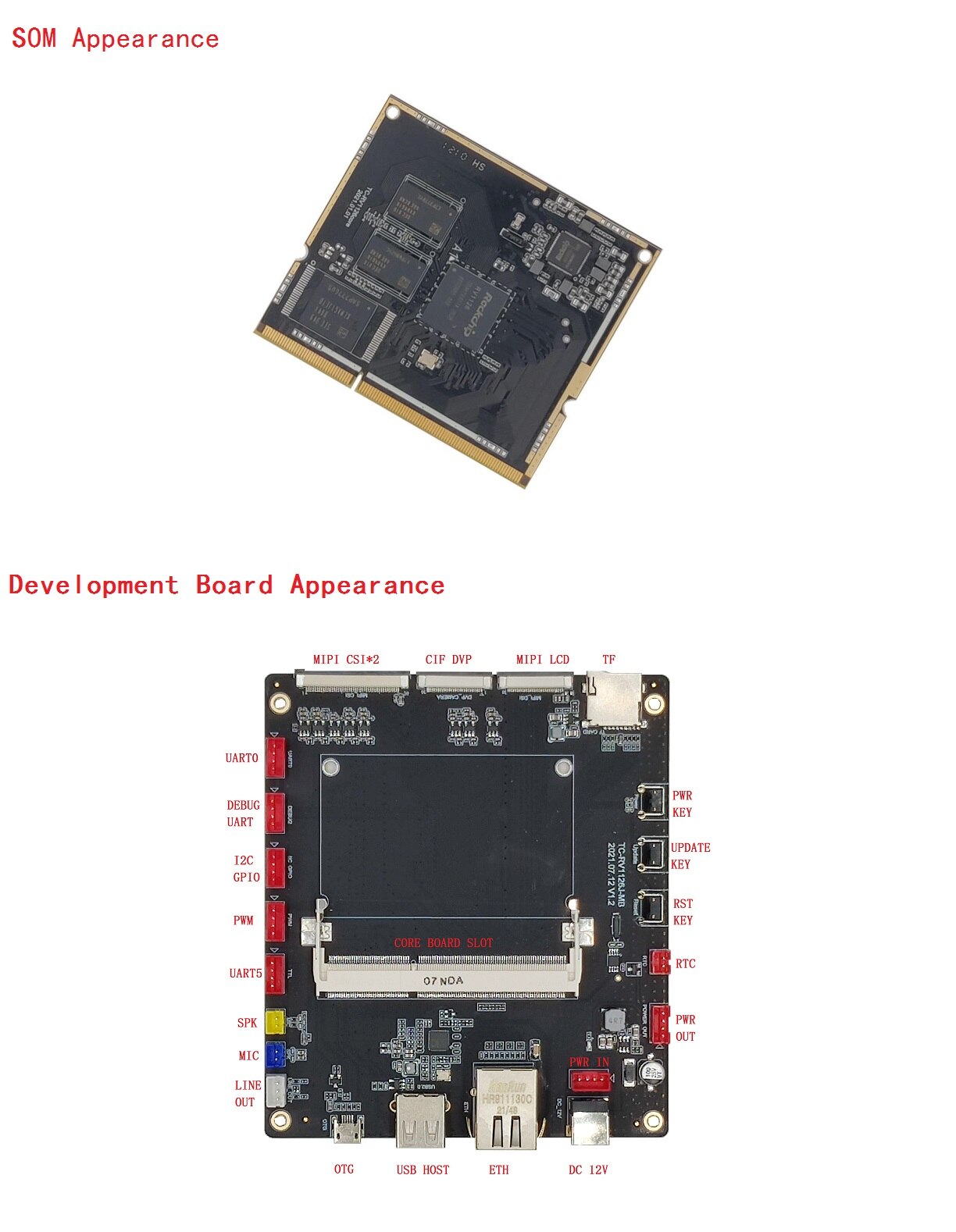

TC-RV1126 develop board consists of RV1126 Gold Finger sOM and carrier board.
TC-RV1126systemon module takes Low-consumption AIvisionprocessor Rockchip RV1126, with a 14nm lithography process and quad-core 32-bit ARM Cortex-A7 architecture, integrates NEON and- the frequency is up to 1.5GHz.
Built-in neural network processor NPU with computing power up to2.0 Tops realizes that the power consumption of AI computing isless than 10% of the power required by the GPU. With tools and supporting AI algorithms provided, it supports direct conversion and deployment of Tensorflow, PyTorch, Caffe, MxNet, DarkNet, ONNX, и т. д..
The soM is only 67.6*58.7 мм, ups to 204PIN. Includes I2C,SPI,UART,ADC,PWM,GPIO,USB2.0,SDIO,I2S,MIPI-DSI,MIPI-CSI,CIF,PHYand other interfaces are equipped,meeting needs of more usage scenarios.
It supports Buildroot+QT 0s – occupies small space, starts fast, and provides stable and reliable operation.
TC-RV1126 carrier board, its size is only108*124 mm, includes many interfaces and functions, such as Ethernet, OTG and USB2.0port, Audio input and output, MIPI display port, TF card slot, MIPI camera port, DVP camera port, TTL, Power output, and so on.
Application
TC-RV1126 develop board is a Linux Intelligent motherboard. It is widely used in face recognition, gesture recognition, gate access control, smart security, smart IP camera, smart doorbells/peepholes, self-service terminals, smart finance, smart construction, smart travel, and other industries.
