RV1126/RV1109 Основная плата с штампованным отверстием, четырехъядерный процессор ARM Cortex-A7, интегрированный NEON&FPU 2.0Tops поддерживает INT8/INT16

Примечание： Please note the type that you want:

Bundle 1：Stamp HoleRV1126 Core Board

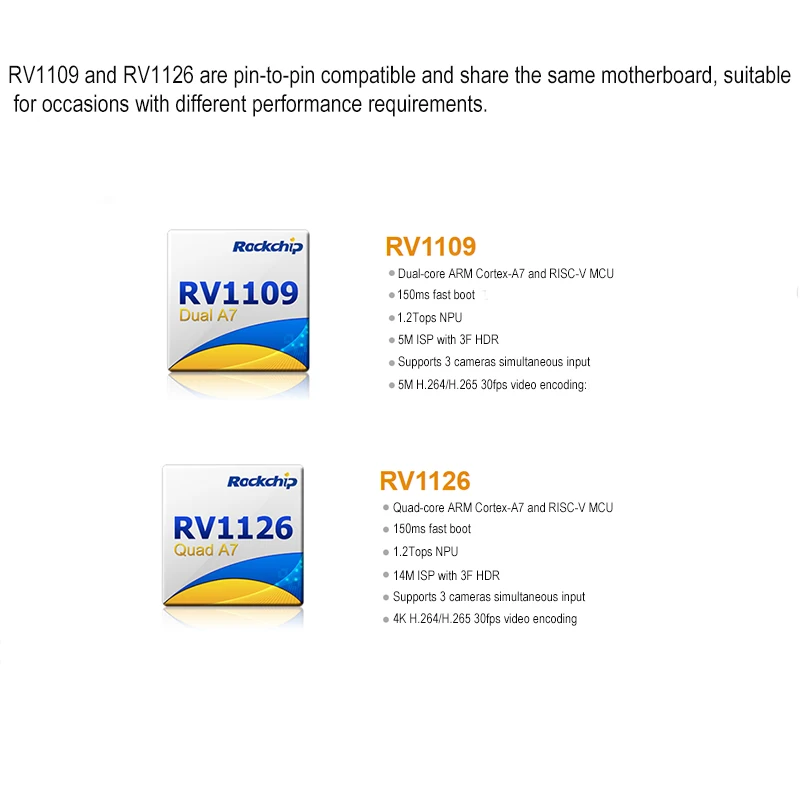

Bundle 2：Stamp HoleRV1109 Core Board

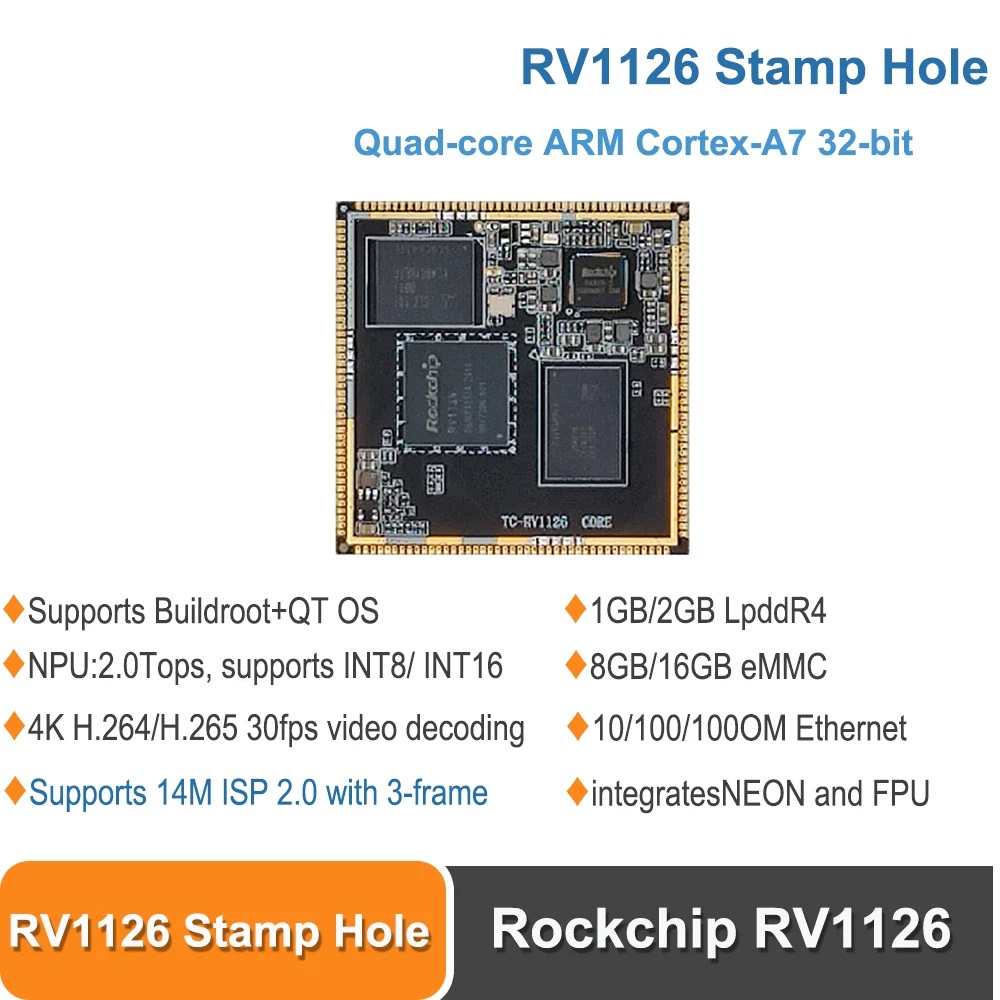

RV1126/RV1109 Stamp Hole Core Board

Размер: 48mm x 48mm

Low-consumption AI vision processor Rockchip RV1126, с 2.0 Tops NPU

Supports 4K H.254/H.265@30FPS and multi-channel video encoding and decoding

Ups to 172pin, rich interfaces

Supports Buildroot+QT OS — occupies small space, starts fast

1GB/2GB Lpddr4, 8GB/16GB eMMC storage

TC-RV1126 Stamp Hole system on module takes Low-consumption Al vision processor Rockchip RV1126, with 14nm lithography process and quad-core32-bit ARM Cortex-A7 architecture integrates NEON and FPU — the frequency is up to 1.5GHz.It supports FastBoot, TrustZone technology, and multiple crypto engines.

Built-in neural network processor NPU with computing power up to 2.0 Topsrealizes that the power consumption of Al computing is less than 10% of the power required by the GPU. With tools and supporting Al algorithms provided, it supports direct conversion and deployment of Tensorflow, PyTorch, Caffe, MxNet, DarkNet, ONNX, и т. д..

With multi-level image noise reduction，3F-HDR, and other technologies, RV1126 not only ensures the dynamic range of the scene but also meets the needs of outputting full color in darkness, making “clearly visible” a reality 一more conforms to the actual demands in the security field.

Built-in Video CODEC supports 4K H.254/H.265@30FPS and multi-channel video encoding and decoding, meeting the needs of low bit rate,low-latency encoding, and perceptual encoding, and making the video occupancy smaller.

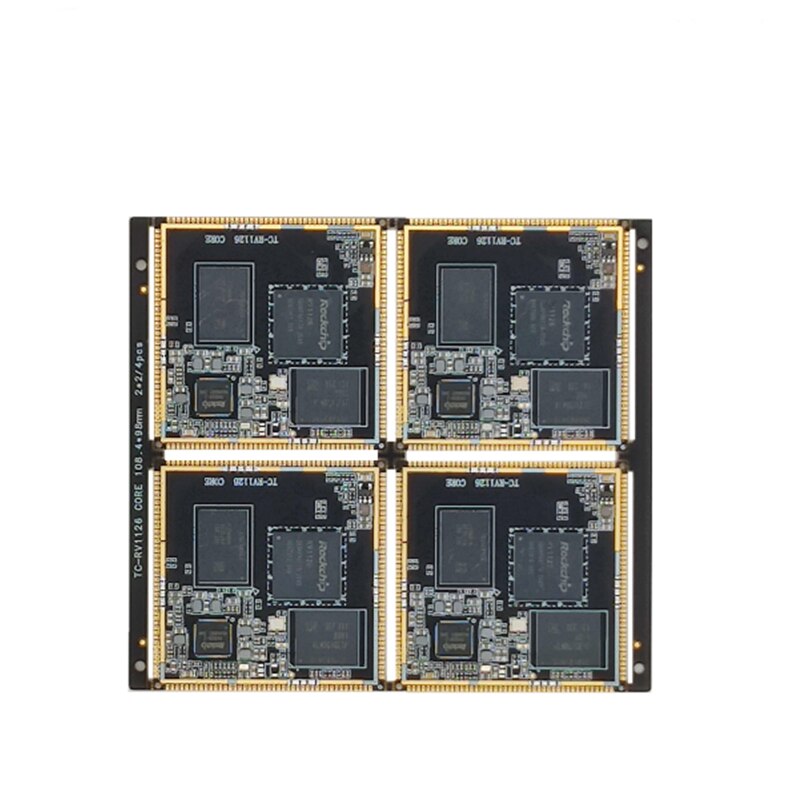

TC-RV1126 SOM takes Stamp Hole designed, its PCB takes 6-layer immersion gold designed, which is of strong scalability. The size is only 48mm, ups to 172PIN. Includes I2C, SPI， UART, ADC， PWM, GPI0， USB2.0， SDIO， I2S， MIPI-DSI， MIPI-CSI， CIF， PHYand other interfaces are equipped， meeting needs of more usage scenarios.

lt supports Buildroot+QT os – occupies small space, starts fast, and provides stable and reliable operation. Source codes are open.

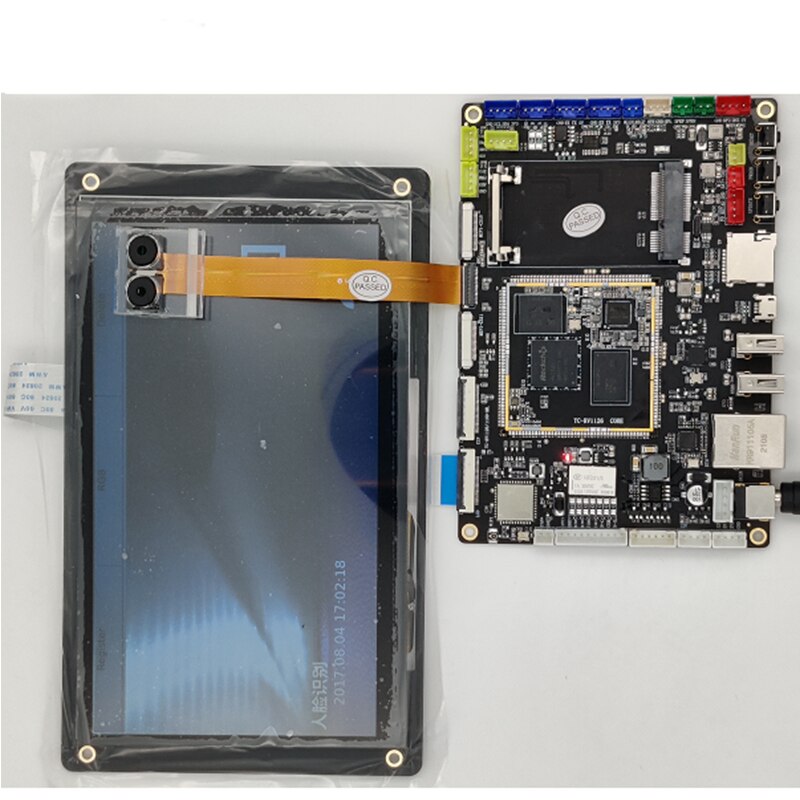

TC-RV1126 development board includes TC-RV1126 som and carrier board.

TC-RV1126-Y Features

1)Размер: 48MM *48MM .

2)Low-consumption Al vision processor Rockchip RV1126, with 2.0Tops NPU.

3)Supports 4K H.254/H.265@30FPS and multi-channel video encoding and decoding.

4)Ups to 172pin， rich interfaces.

5)Supports Buildroot+QT 0s — occupies small space, starts fast.

Application

It is widely used in face recognition， gesture recognition， gate access control， smart security， smart IP camera， smart doorbells/peepholes， self-service terminals， smart finance， smart construction, smart travel, and other industries.
