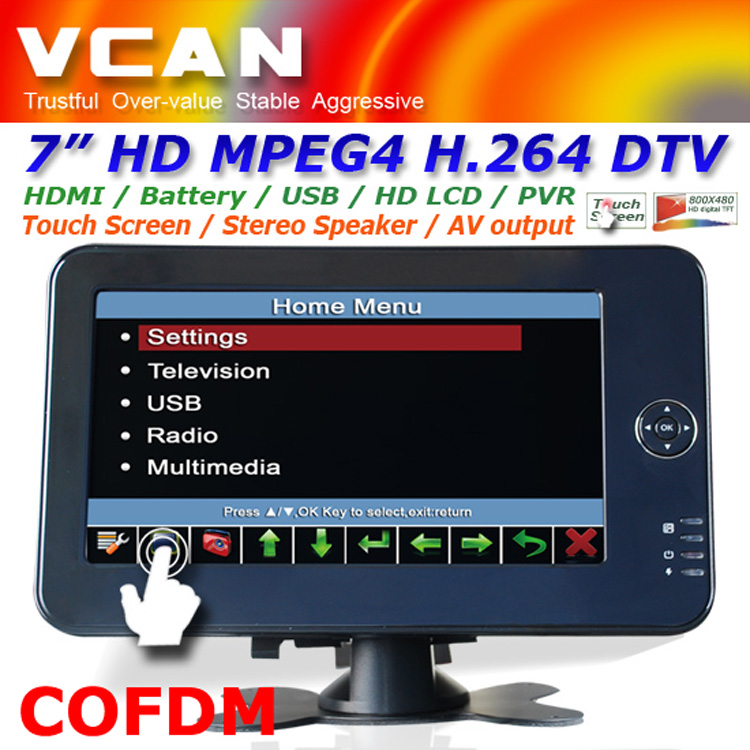

Беспроводной HD-приемник COFDM: 7 inch HD wireless COFDM receiver

Беспроводной HD-приемник COFDM

WV-7012HD 7 inch handheld HD wireless COFDM-приемник portable
Пункты продажи:
7 inch Wireless COFDM Digital AV Handheld receiver

MPEG4, H.264, Touchscreen

800 X 480 HD 1080p digital monitor

Built-in Li rechargeable battery

Recorder / USB Media player

Portable / In-car use / Anywhere

HDMI-выход

Sweep-frequency function

COFDM modulation and H.264 decoding

Multiband sweep function(English menu)

Small size, lightweight and high reliability

WV-7012HD 7 inch handheld COFDM wireless receiver portable

Six main functions in one set:

1. 7″ HD digital monitor, 800 х 480, digital TV signal, digital display

2. Handheld COFDM MPEG2-4 portable receiver, support h.264 High Definition

3. USB PVR function (Personal Video Recorder, digital video recorder)

4. AV / HDMI-выход, connect another big TV (Screen power off function)

5. Hi-capacity Rechargeable Li battery for anywhere TV in your hand. ( 3H at Max Power)

6. Touch screen, easy operation, friendly UI design, Bigger OSD

Функции:

1. Portable HD COFDM digital wireless receiver, Support MPEG2/MPEG4 HE-ACC/H.264/AVC

2. 7 inch TFT LCD Digital Panel wide display (16: 9)

3. Touch screen, easy operation

4. Разрешение: 800*480, true HD screen for MPEG4 HD TV signal

5. Built-in HD COFDM digital receiver.

6. HDMI Output

7. EPG function (Электронный программный гид)
8. PVR function, record TV anytime

9. Hi-capacity battery for long playback time (over 3h at Max Power)

10. Multi Language Support English, Hebrew, Greek, Persian, Русский, Spainish, Portuguese, French, German, Italian, Polish, Dutch, Danish or do what you need.

11. USB Upgrade, support AVI, AVI-Xvid, AVI-Xvid4, AVI-Xvid5, ПВР, МП3, JPG, БМП.

12. Auto searching and update bit rate information

13. Pre-store function for 1000pcs channels

14. Power Memory, EPG function, Remote control

15. Support Teletext, new BIG OSD menu

Технические характеристики:

1. DVB-T Input frequency: VHF 177.5MHz – 226.5MHz

UHF 474MHz – 858MHz

2. Модулировать: QPSK/16 – QAM/64-QAM

3. Стандарт декодирования: MPEG1, HD MPEG2, SD MPEG2,

MPEG4(H.264/AVC: HP@L4.1,MP@L4.1,VC-1:AP@L3,L2)

4. Стандарт декодирования звука: MPEG-1, and-2, layer 1 и 2,

MPEG-4, HE-AAC

5. Источник питания: DC 5V 8W

WV-7012HD New Design portable COFDM AV receiver(with sweep-frequency function),has advantages of small size and lightweight.Support high speed mobile transmission and NLOS reception.Using 7 inch TFT high resolution touch control and display,and providing concise control experience and perfect image,while adding spectrum scan function that can quick to search the current area caused by the same frequency interference from surrounding equipments which can provide reference quick data for installation.The product widely used in secuirty,fire,broadcasting and TV,emergency communications and other industries.

Технические характеристики:

Источник питания: DC5V/1.0A (Built-in battery,support about 3 hours continuously working time);

Видеовыход: CVBS interface; 3.5mm jack;HDMI-выход

Аудиовыход:option: ЦВБС,3.5mm jack headphone

Частота:VHF 177.5MHz – 226.5MHz

UHF 474MHz – 858MHz step in 1MHz;

Пропускная способность:6/7//8МГц(регулируемый);

Modulation:COFDM/DVB-T2

Decoding mode:H.264/MPEG-2

Sweep-frequency function:Built-in frequency sweep function options menu

Parameter control method:Easy to set up parameters via touch-screen by user

RF signal receiving interface: IEC type（50Ω）

HD Wireless COFDM Receiver — Беспроводной HD-приемник COFDM

WV-7012HD support to manual input special frequency, then it will get the TV reception at this frequency as wireless HD video transmission transmitters.

Цифровой ТВ-ресивер,Беспроводные видеопередатчики

7 дюймовый портативный беспроводной HD-приемник COFDM
