4Caméra de recul pour stationnement, vue arrière latérale, broches 9LED, pour camion, Bus, moniteur de véhicule, caméra de vue latérale 12V IP69K

Notice

It is a CVBS camera, it can work with normal monitors. only when your devices support the CVBS camera, can work well. please connect this camera with a CVBS monitor, not an AHD camera, Thank you!



Description

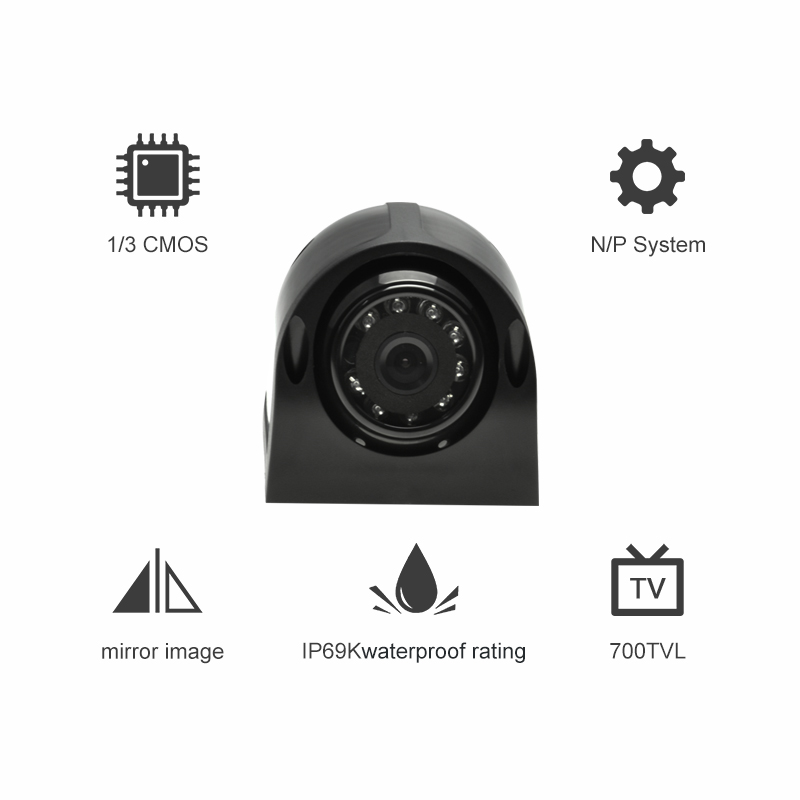

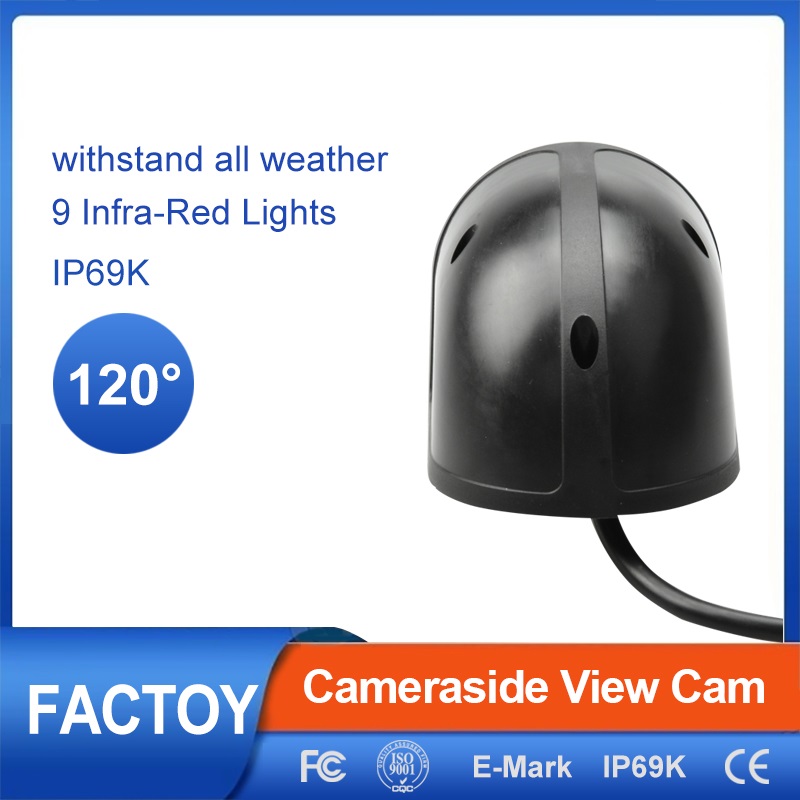

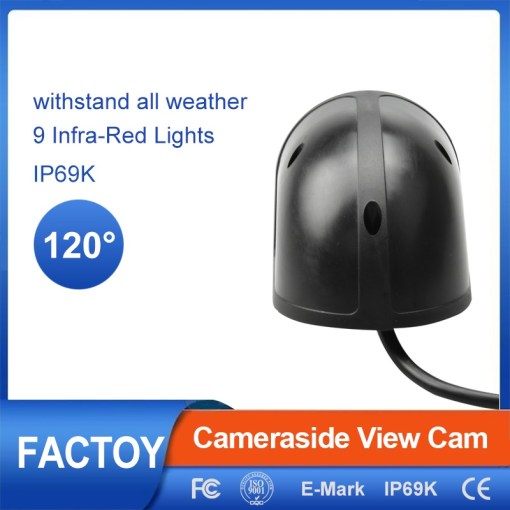

This camera has a wide viewing angle of 133° and 720P for the greatest image beside your vehicle. This image will remain great even at night as its 9 infrared lights will provide perfect night vision. It is completely waterproof with an IP69K rating. With a robust encasing, this backup camera will be fit to withstand all weather conditions.



Spécification

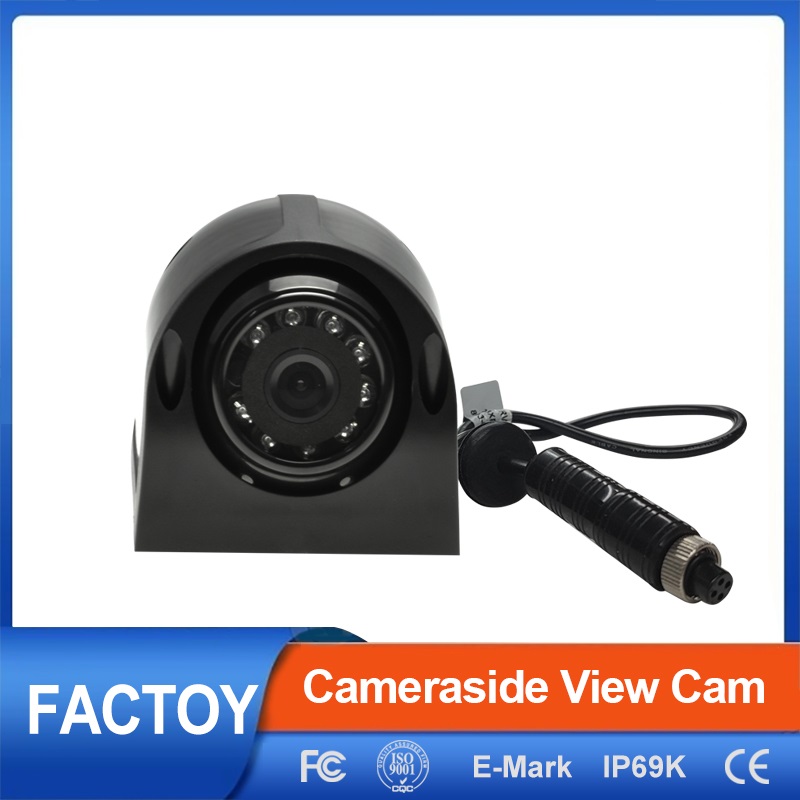

Produit: Standard Side View Camera

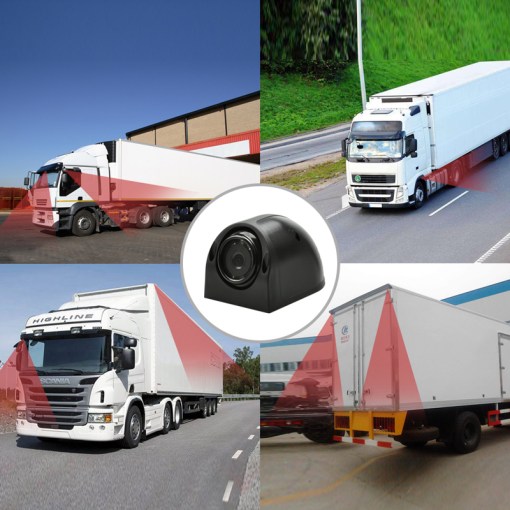

Applicability: Suitable For All Kinds Of Large Vehicles As Large Vehicles Such As Trailers, Buses, Trucks, Campers, And RVs

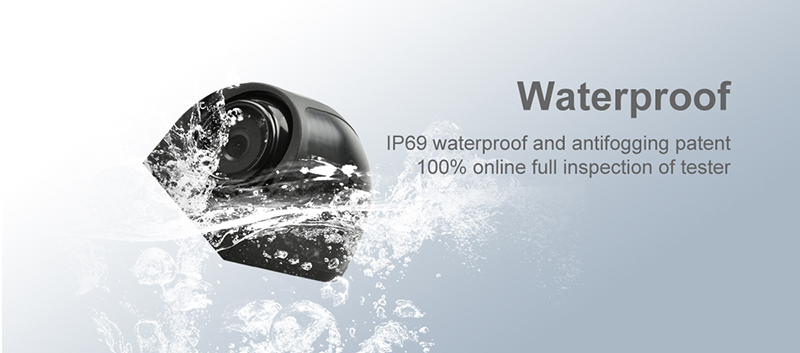

Waterproof Level: IP69K Waterproof Rating

Normal Image: Soutien

N/P System： COPAIN

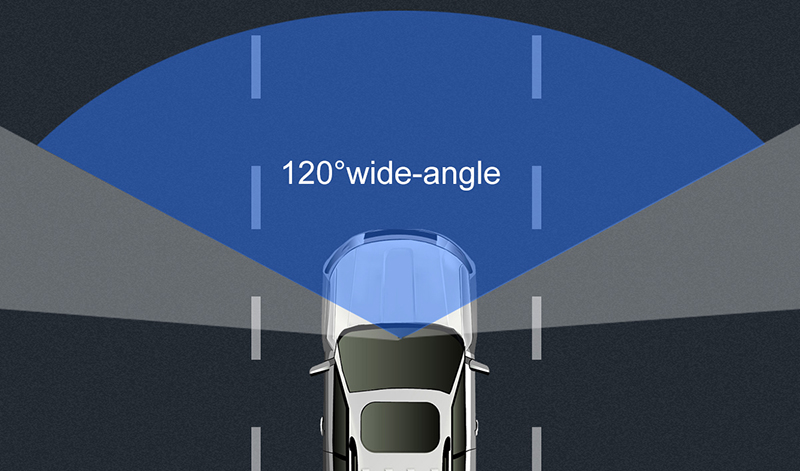

Camera Degree: 120 Degré

Connecteur: 4P Lock Connector

Input Power: 12V Power Input

Operating Temperature： -30C° To +70C°



Camera Details

Lens Material: Glass

Sensor: 1/4 CCD

TV System: COPAIN

Ligne de stationnement： No Parking Line

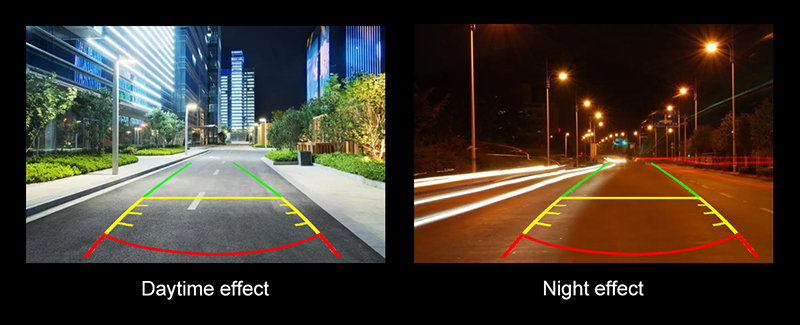

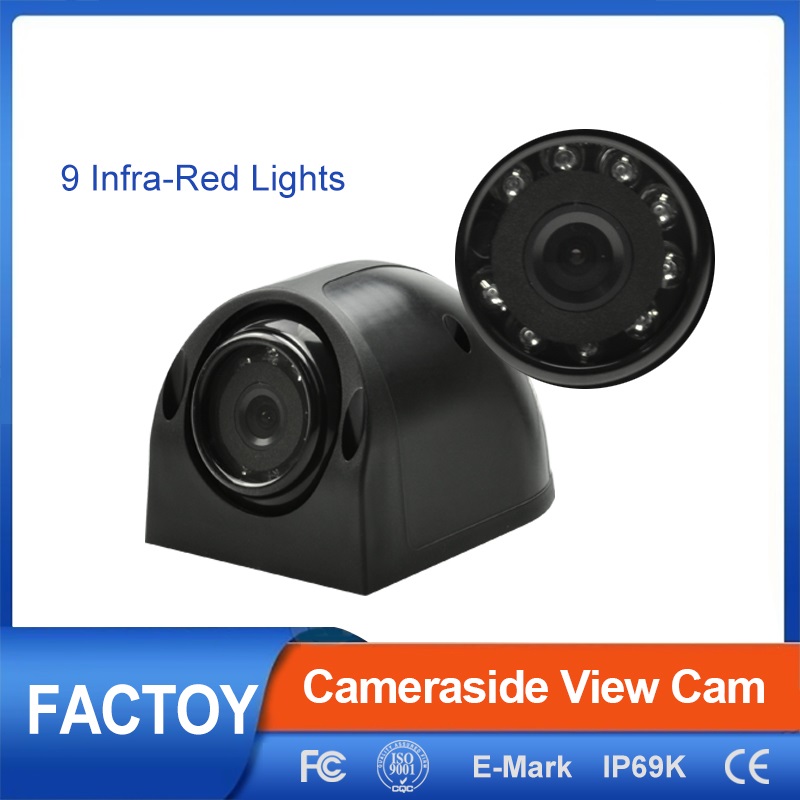

Camera IR LED: 9pcs IR Lamp With Excellent Night Vision

Electronic Shutter : Auto:PAL 1/50s(NTSC 1/60s)~1/100,000s

Focus: 2.4mm

Lens Interface: M12

F.O.V: 133° (D)、106°（H）、76°（V）

Backlight Compensation: Auto

Résolution : 700TVL(AHD 720P)

Signal to Noise Ratio: Better than 48dB

Connect: 4 Pin Aviation Female Interface

Sortie vidéo: VP-P Composite Output(75Oh)

Entrée audio: NONE

Audio Output: NONE



Emballage

1 x Left Side View Camera ( Not extension cable)
