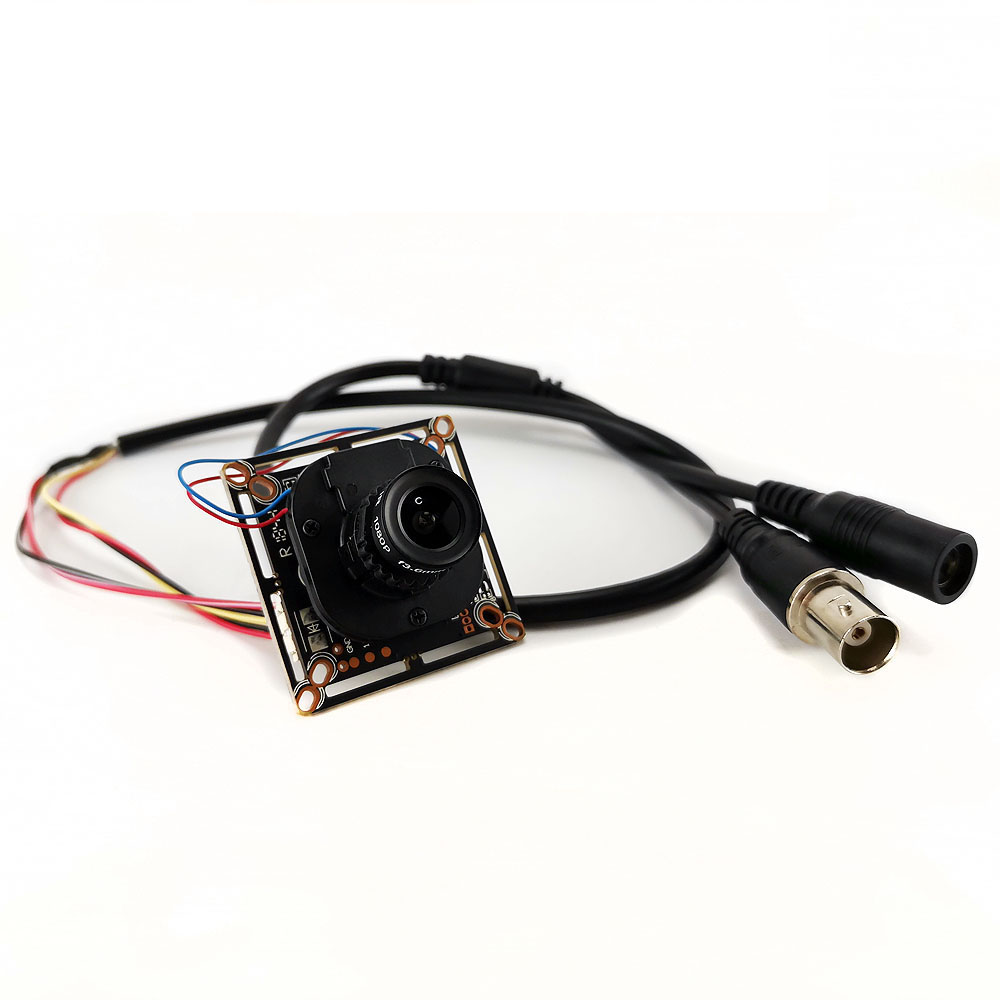

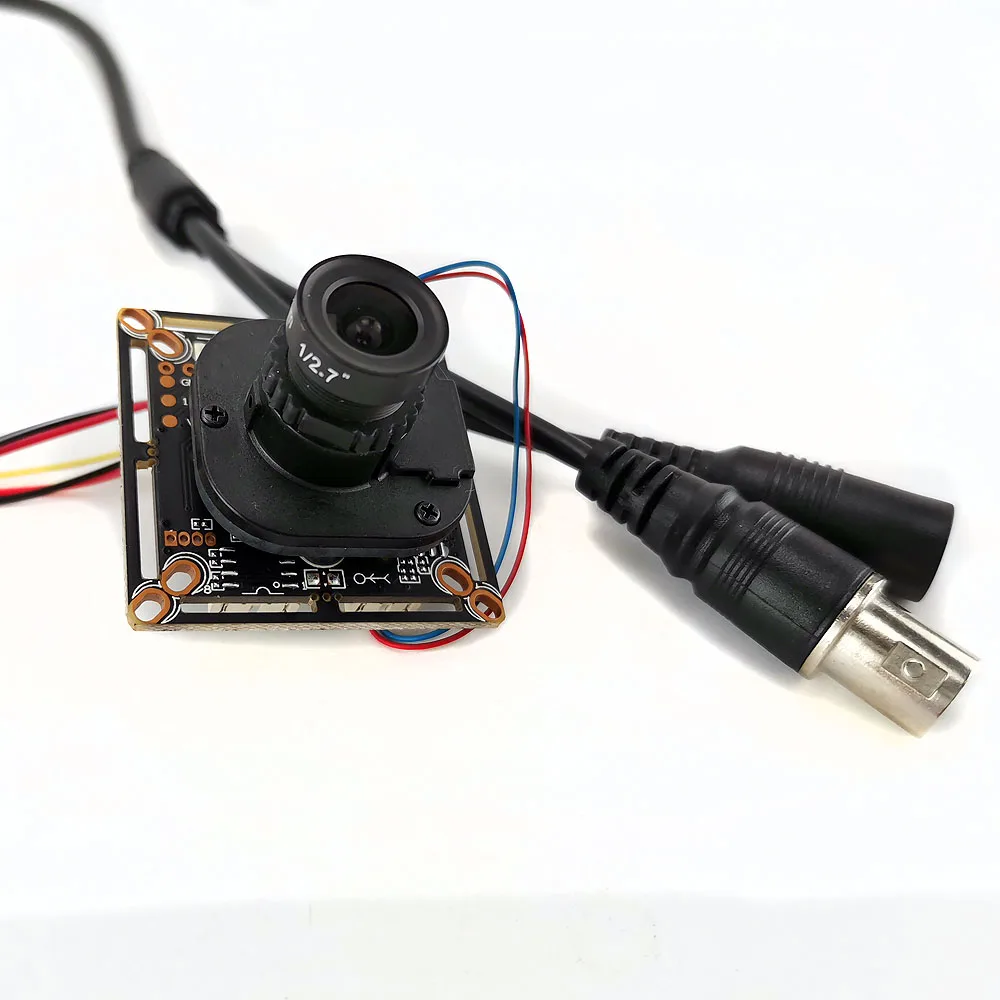

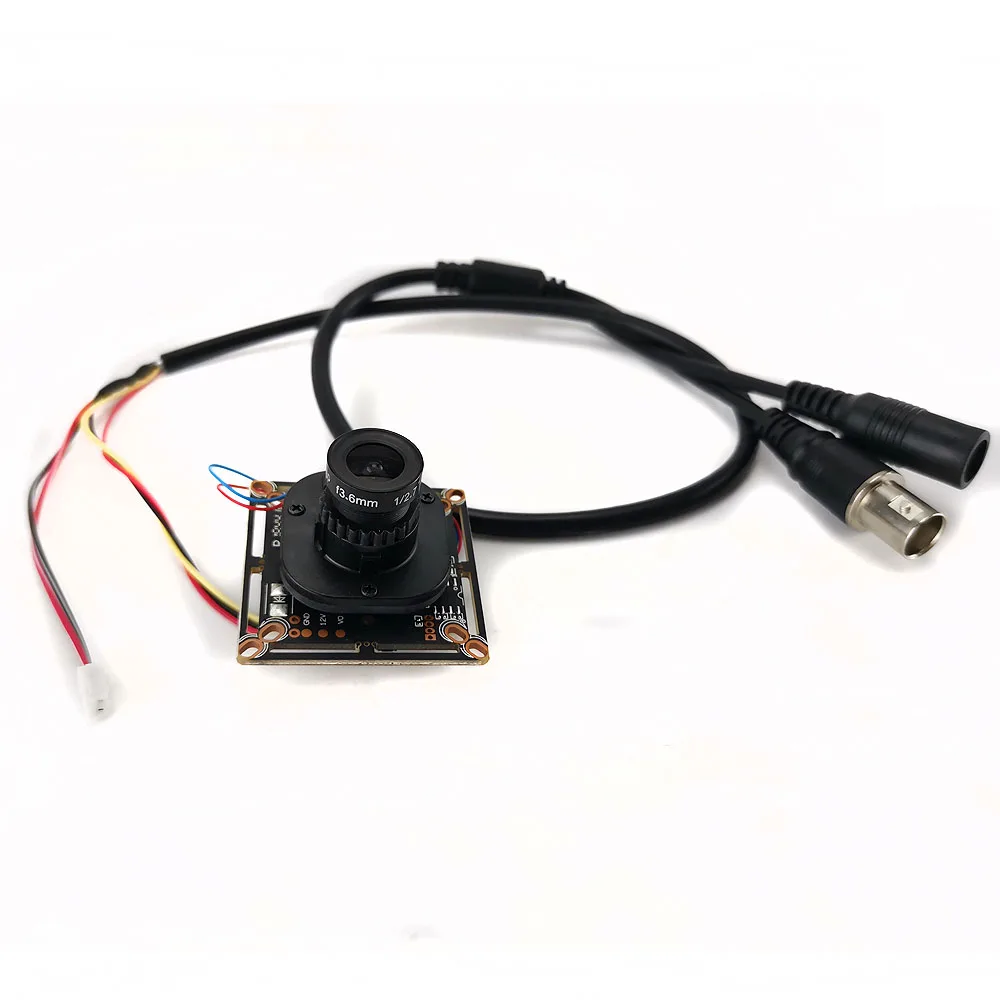

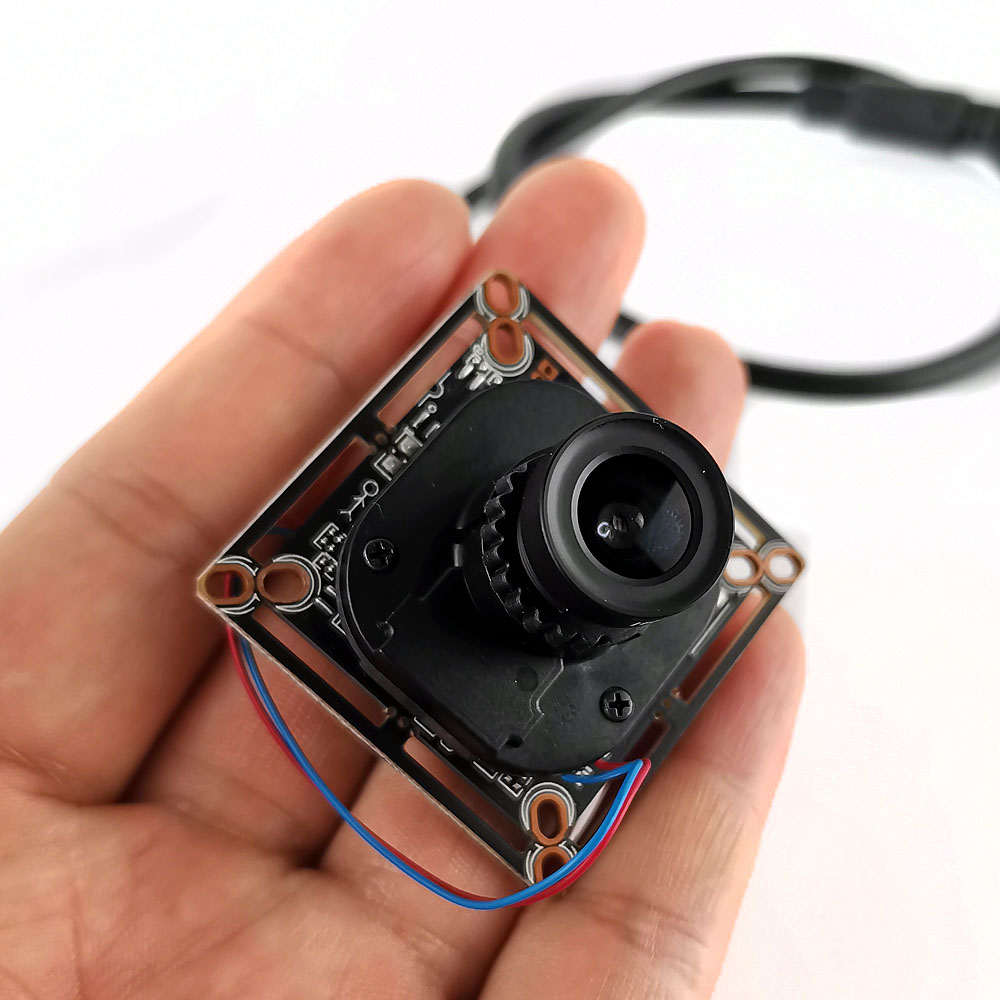

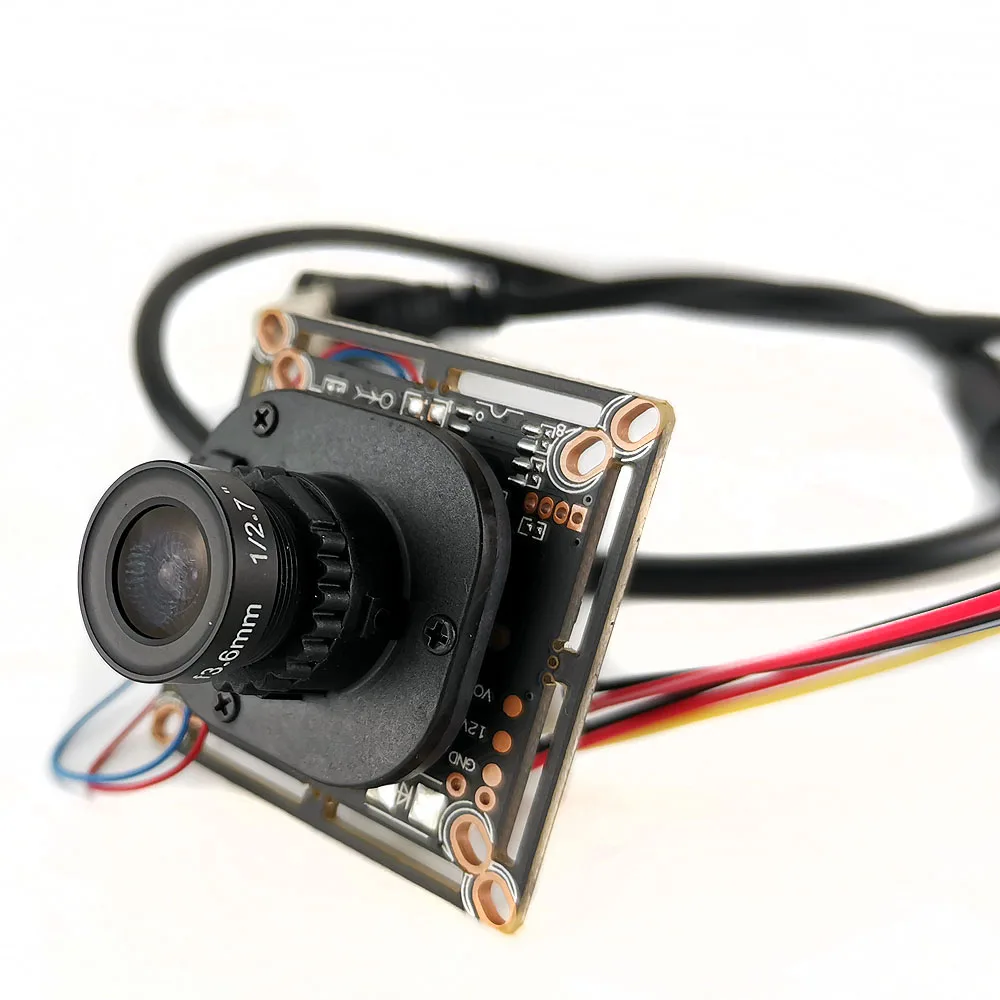

Module de caméra AHD à faible éclairage, carte PCB 2MP IMX323 2000TVL AHD HD 5MP 1080P IRCut Vision nocturne, objectif M12 CCTV, sécurité venue
- High Definition: 1080P.(Full-HD)
- Supported Operating Systems: Windows XP, Windows 7, Windows 10
- Lens (mm): 3.6mm,6mm,8mm,2.8mm,12mm
- Style: Mini Camera
- Connectivity: Closed System/CCTV Wired
- Installation: Normal
- Megapixels: 2MP
- Storage: None
- Certification: NONE
- Dimensions (L x W x D)(mm): 38*38mm
- Model Number: AHD-MB2MP
- Smart home platform: Other
- Carte TF: None
- Alimentation(V): 12V
- Sensor: CMOS
- Alimentation: Normal

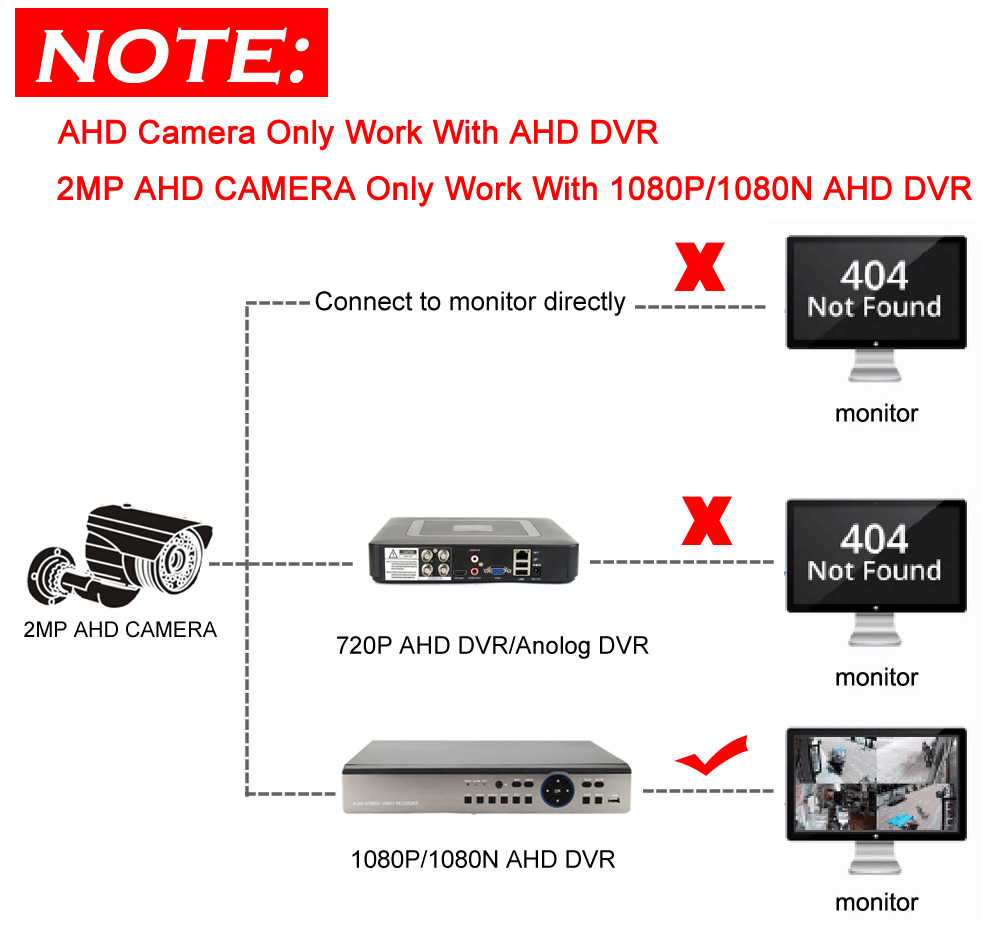

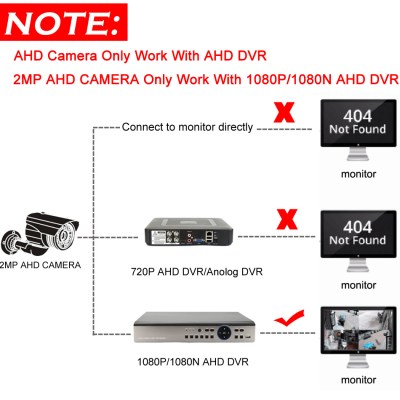

5MP AHD Camera Need Work With 5MP AHD DVR.8MP AHD Camera Need Work With 8MP AHD DVR.

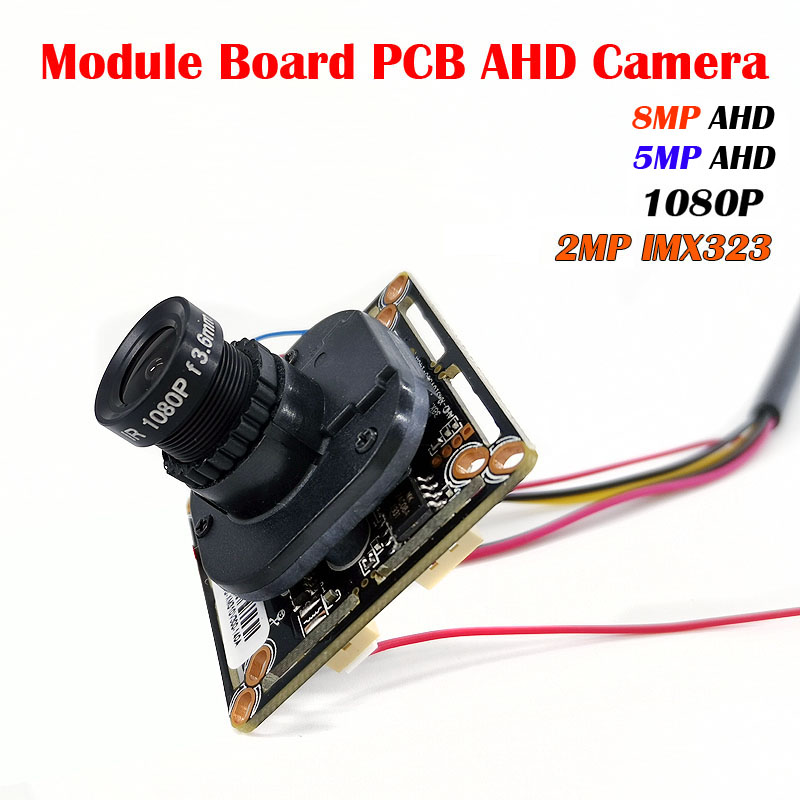

Low illumination AHD Camera Module Board PCB 2MP IMX323 2000TVL AHD HD 5MP 1080P IRCut Night Vision M12 Lens CCTV Security Camera
| Caractéristiques | |
| Sensor | 1/4 inch Color sensor |
| Video Resolution | PAL/NTSC: 1280*720 |
| Minimum Illumination | color：0. 1Lux@（F1.2， AGC ON），0Lux with IR |
| Noir & White：0.01Lux@（F1.2， AGC ON），0Lux with IR | |
| Photosensitive Resistance | 1 photosensitive resistance interface, support the photosensitive resistor input signal and image, IR-CUT, infrared lamp linkage |
| Shutter | 1/50(1/60) seconds to 1/10,000 seconds |
| Day and Night Function | Support IR-CUT |
| Lens Parameters | M12 3.6mm Lens |
| Synchronous Mode | inter-sync |
| Noise-signal Ratio | >58dB |
| Temperature and Humidity | – 10 ℃ ~ 60 ℃, humidity is less than 90% (no condensation) |
| Pouvoir | DC12V±10% |
| Consumption | <5W |
| Taille | Standard 32*32 positioning hole, compatible with 38*38 hole |
5MP AHD Camera Need Work With 5MP AHD DVR.
