CCD AHD Starlight Vision nocturne vue de face objectif Fisheye Logo caméra pour Audi A1 A3 A4 A5 A6 A7 Q3 Q5 Q7 TT véhicule de voiture
-
- Lens Material: Plastic Glass
-
- Matériau de la coque: Plastique
-
- Wire or Wireless: Wired
-
- Material Type: Abs
-
- Length of Video Cable: 6M
-
- Système de télévision: NTSC
-
- View Angle: 175 Degré
-
- Capteur d'images: CCD / COMS
-
- Pouvoir: C.C 12 V
-
- Parking Assistance Type: Caméra de vue de face
CCD AHD Starlight Vision nocturne vue de face objectif Fisheye Logo caméra pour Audi A1 A3 A4 A5 A6 A7 Q3 Q5 Q7 TT véhicule de voiture

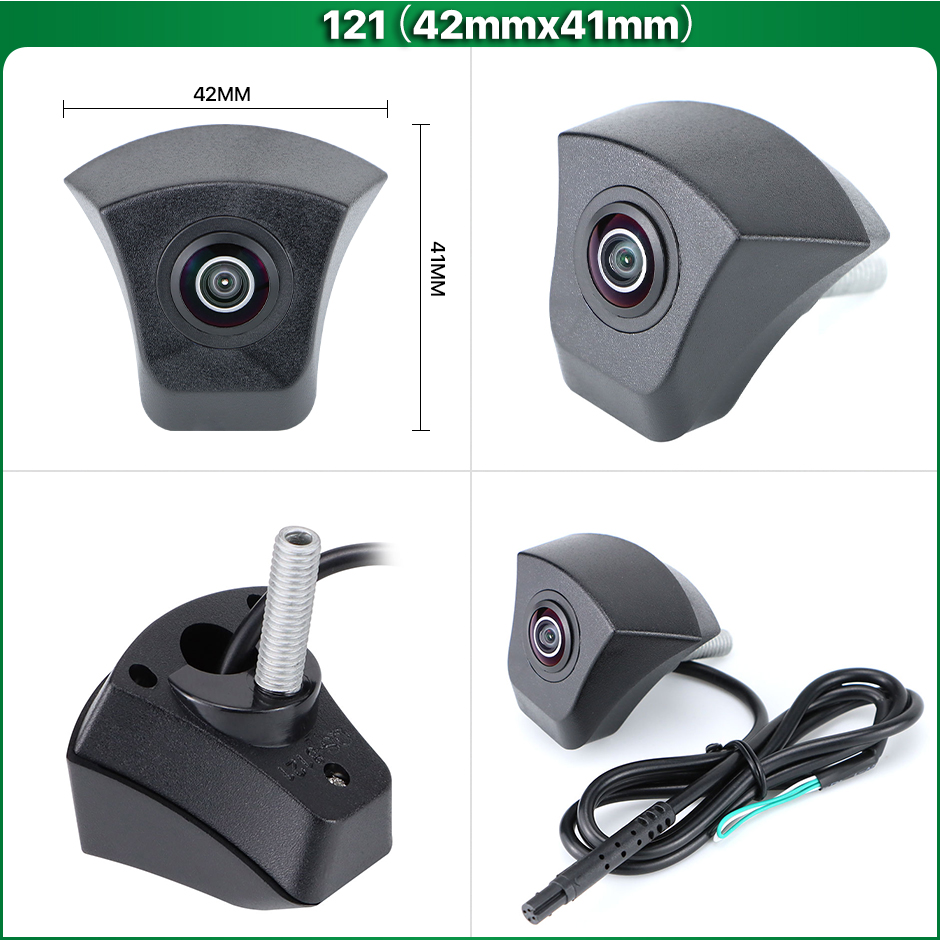

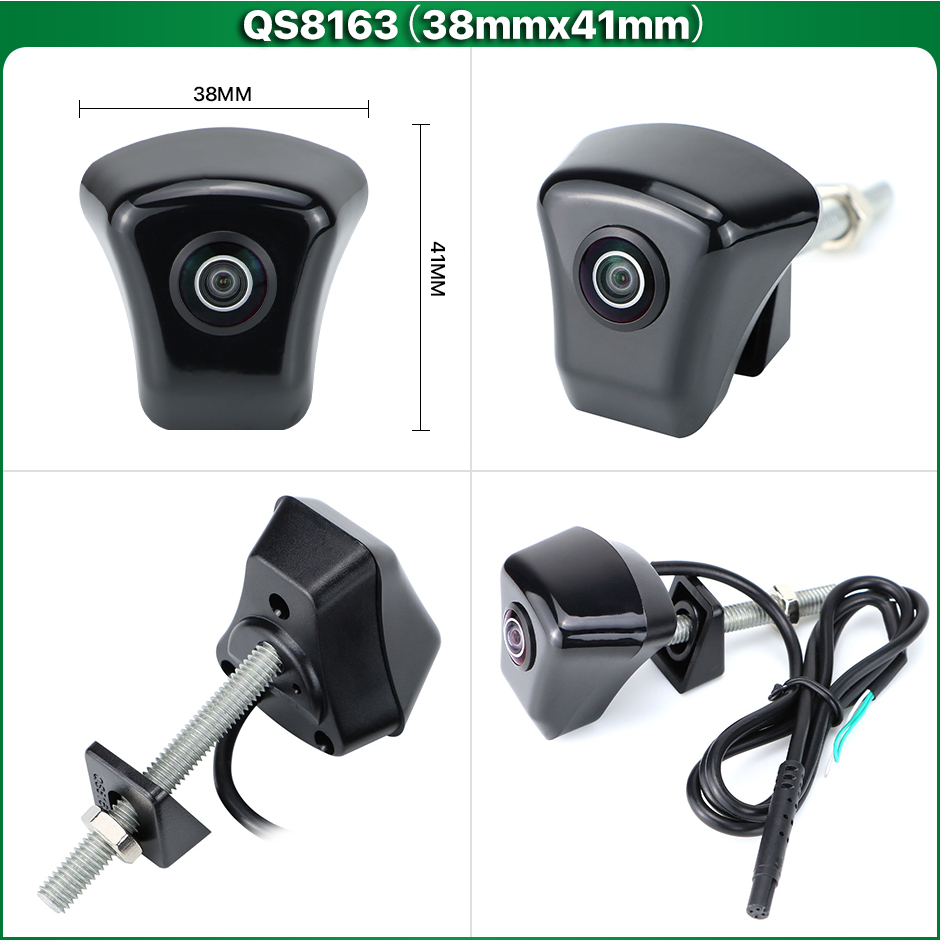

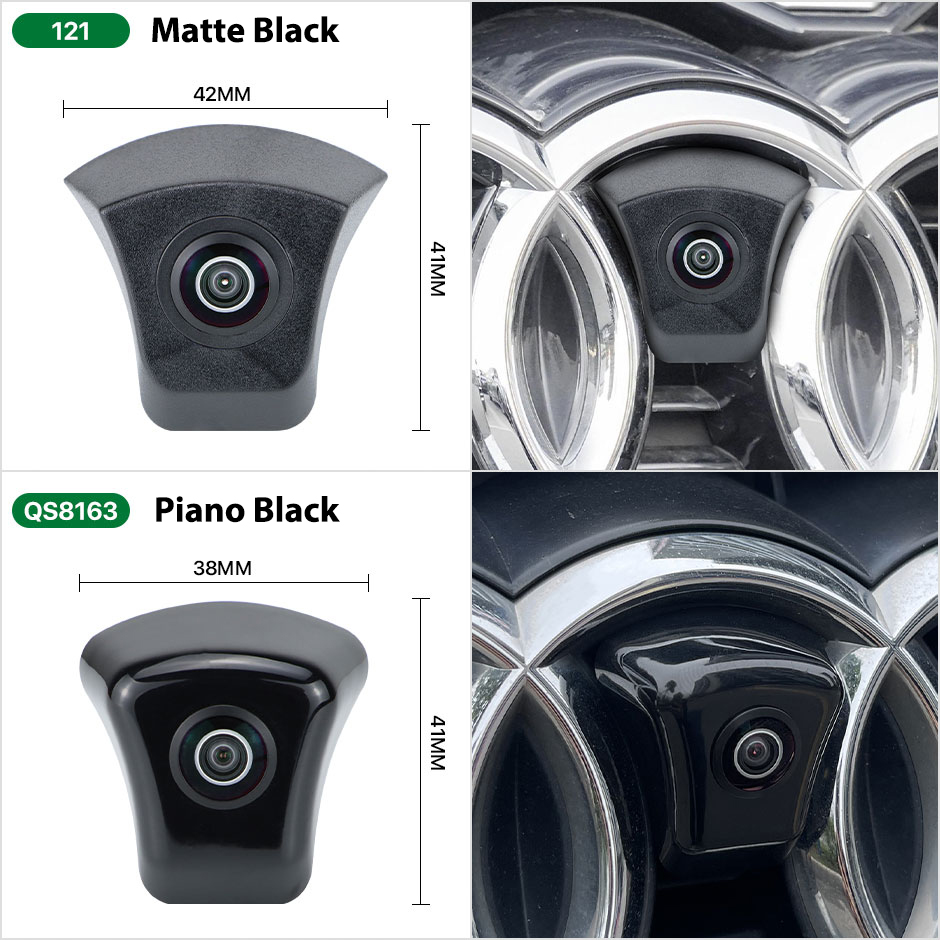

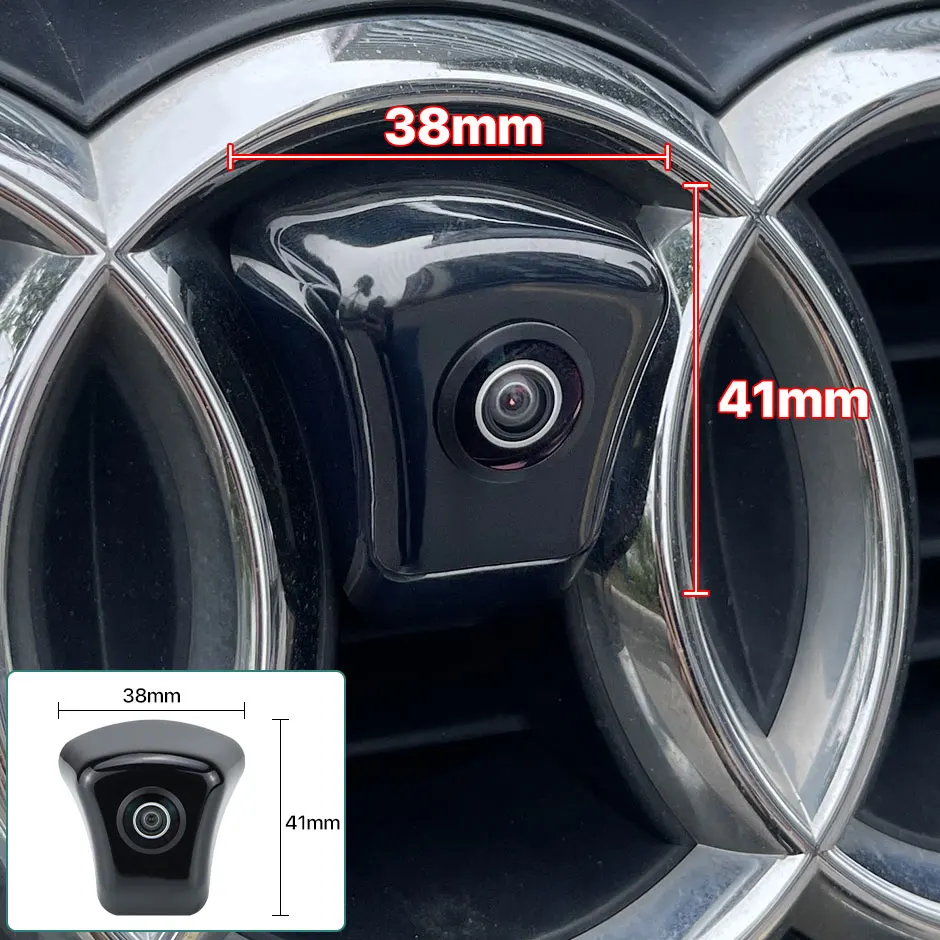

Tip: Please check if the size suits ( the logo camera have 2 kinds of size optional )
About AHD1080P options:

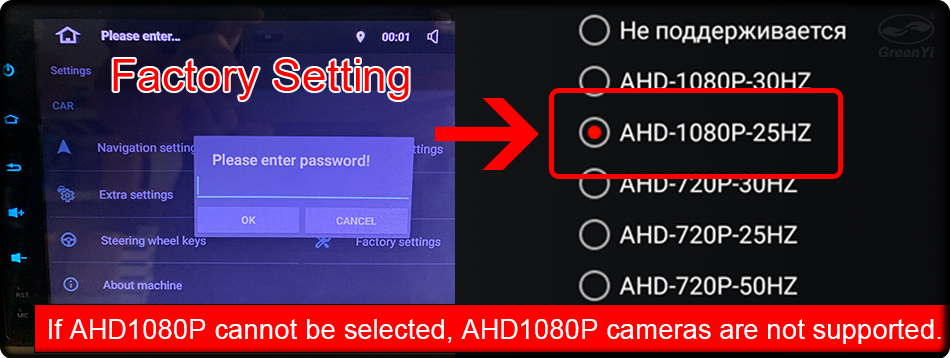

Please check whether the Android unit supports the AHD1080P camera! If AHD1080P cannot be selected, AHD1080P cameras are not supported!
Go to Car settings >> Factory settings >> Reverse (picture) settings >> Select AHD1080P
3 Kinds of Product Parameters Optional :
↓↓ AHD Camera, Analog High Definition Technology (Option B, D, E)
• AHD 1920*1080P or CCD/CVBS 720*480P Peffective pixels ( Facultatif )
• Top GC2053 or 7080 AHD Chips
• Waterproof IP68
• 2000000 pixels
• Clearer and advanced bright color separation, signal filtering, 3D noise reduction technology, higher image clarity, and better image reproduction.
• zero-delay front-end data is not encoded and compressed to the back end, fully real-time, high fidelity.
• Highly integrated AHD front-end chip, high-definition quality products.

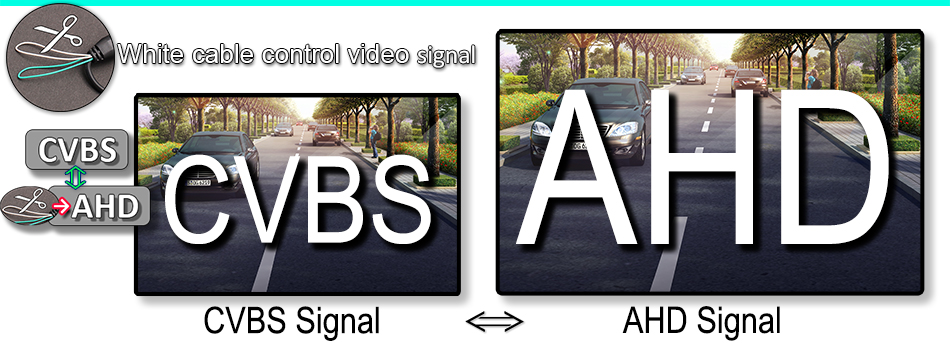

↑↑ Support video signal control AHD/CVBS (Option B, D, E)
Through signal control, it can support CVBS and AHD displays.
• C camera
( CVBS )+( 1280×720 )+( 170° )
Cut the white cable→( AHD )+( 1280×720 )+( 170° )
• D camera
( AHD1080P )+( 1920×1080 )+( 175° )
Cut the white cable→( CVBS )+( 1280×720 )+( 125° )

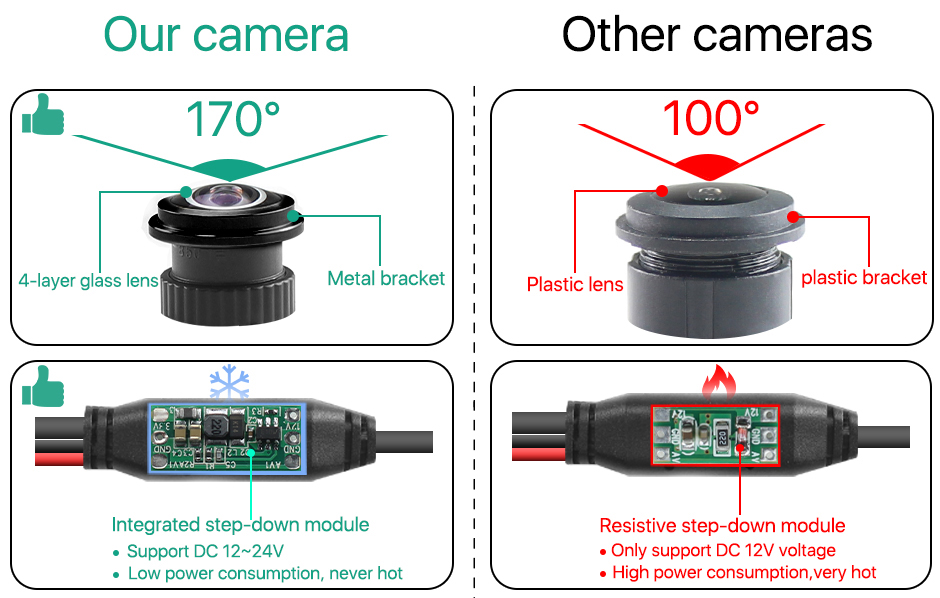

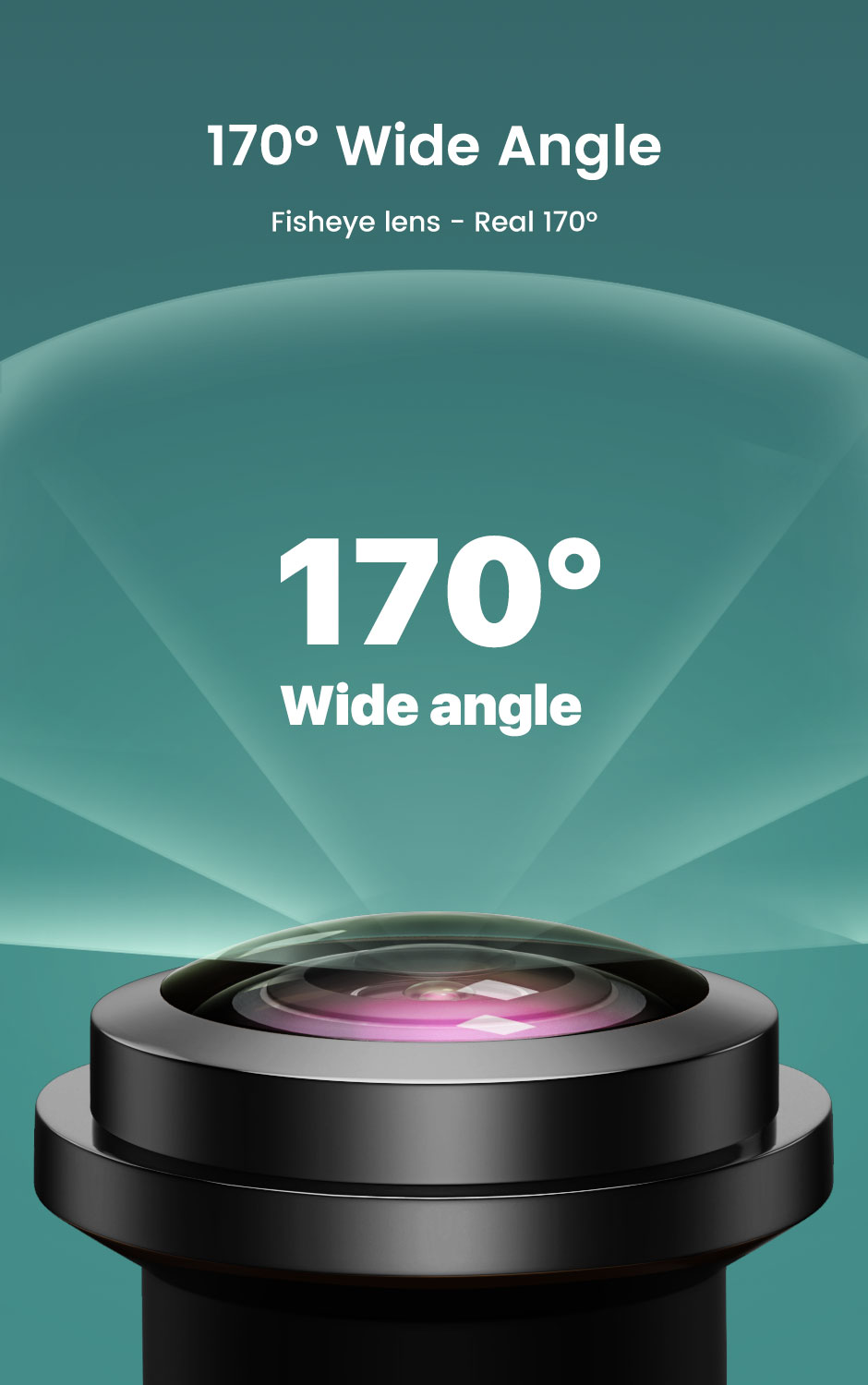

↓↓ 170° View Angle (Option B, D, E)
• Real 170° wide viewing angle. the display looks like a fisheye, a glass lens, with a wide field of vision, dangerous blind spots are a thing of the past.
↑↑ Support parking reference line switch on/off
Some monitors come with a parking reference line that coincides with the camera’s reference line and interferes with the line of sight.

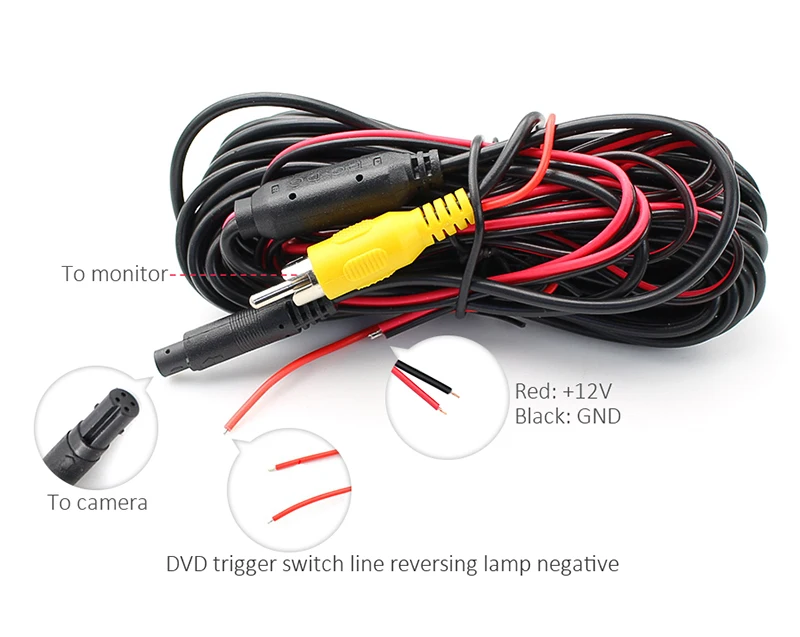

Wiring Diagram:
Support Waterproof
Product includes:
1. Front Camera
2. Package
3. 6m Power Cable
4. Manual
