Caméra avec Logo de vue avant CCD AHD1080P, pour Honda CRV Accord Fit City Civic Odyssey Spirior U-RV X-RV voiture Jade
-
- Guiding Line: Non
-
- Material Type: Abs
-
- Length of Video Cable: 6M
-
- Lens Material: Plastic Glass
-
- Wire or Wireless: Fil
-
- Type d'alarme: Front
-
- Matériau de la coque: Plastique
-
- Système de télévision: NTSC
-
- View Angle: 175 Degré
-
- Capteur d'images: CCD / COMS
-
- Pouvoir: C.C 12 V
-
- Parking Assistance Type: Caméra de vue de face
Caméra avec Logo de vue avant CCD AHD1080P, pour Honda CRV Accord Fit City Civic Odyssey Spirior U-RV X-RV voiture Jade

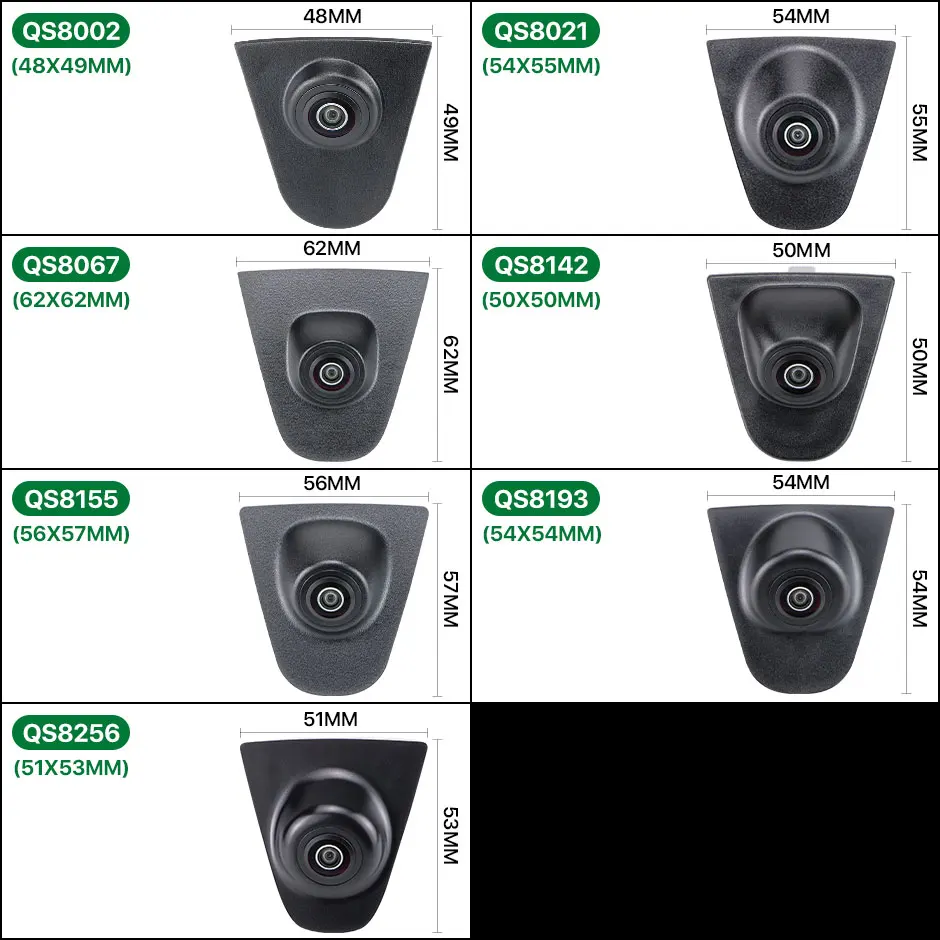

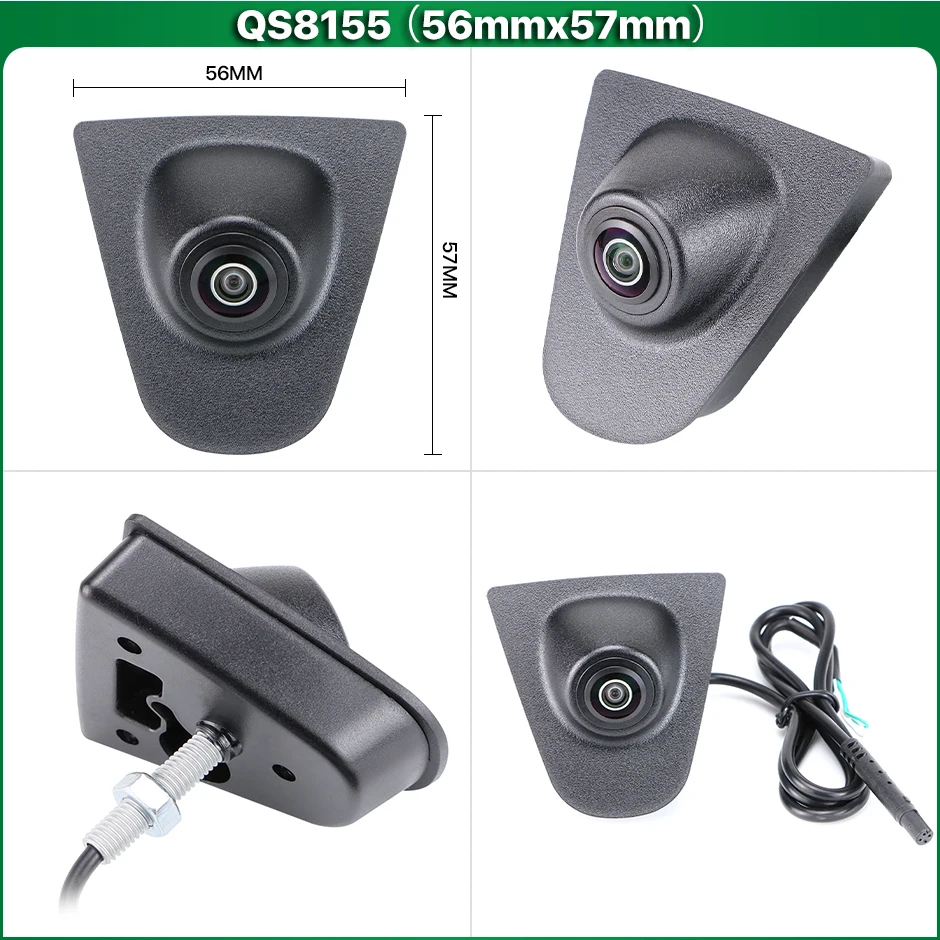

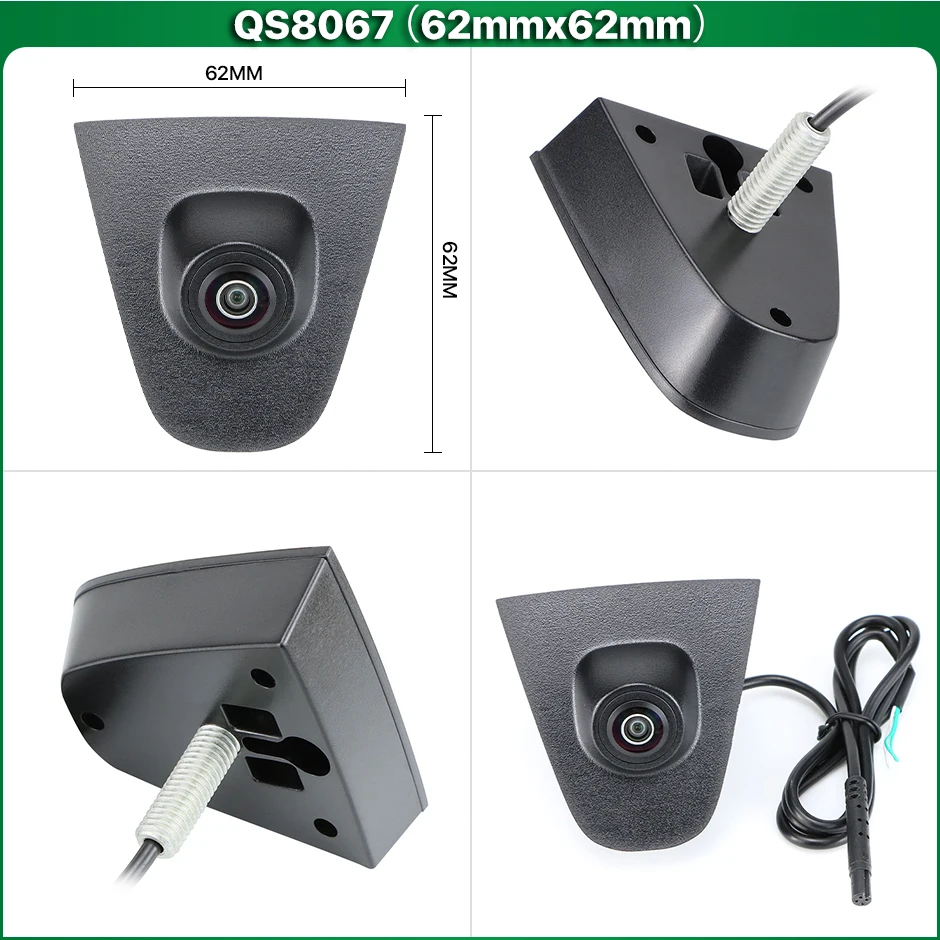

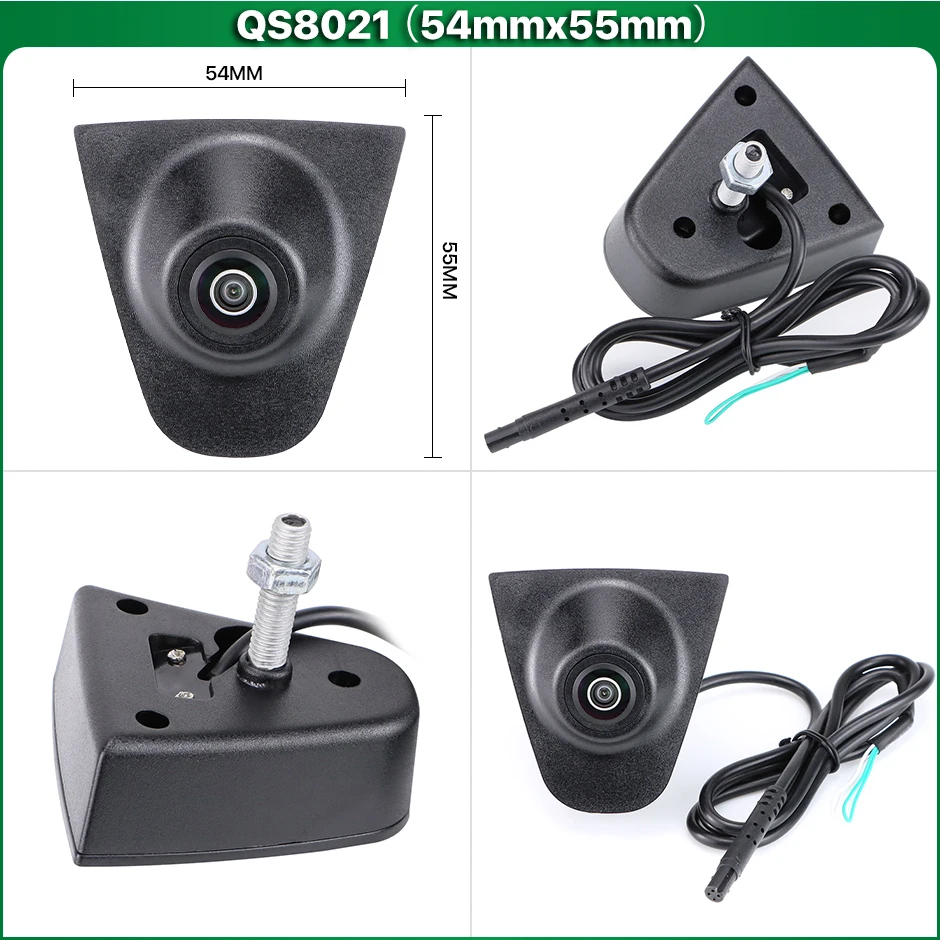

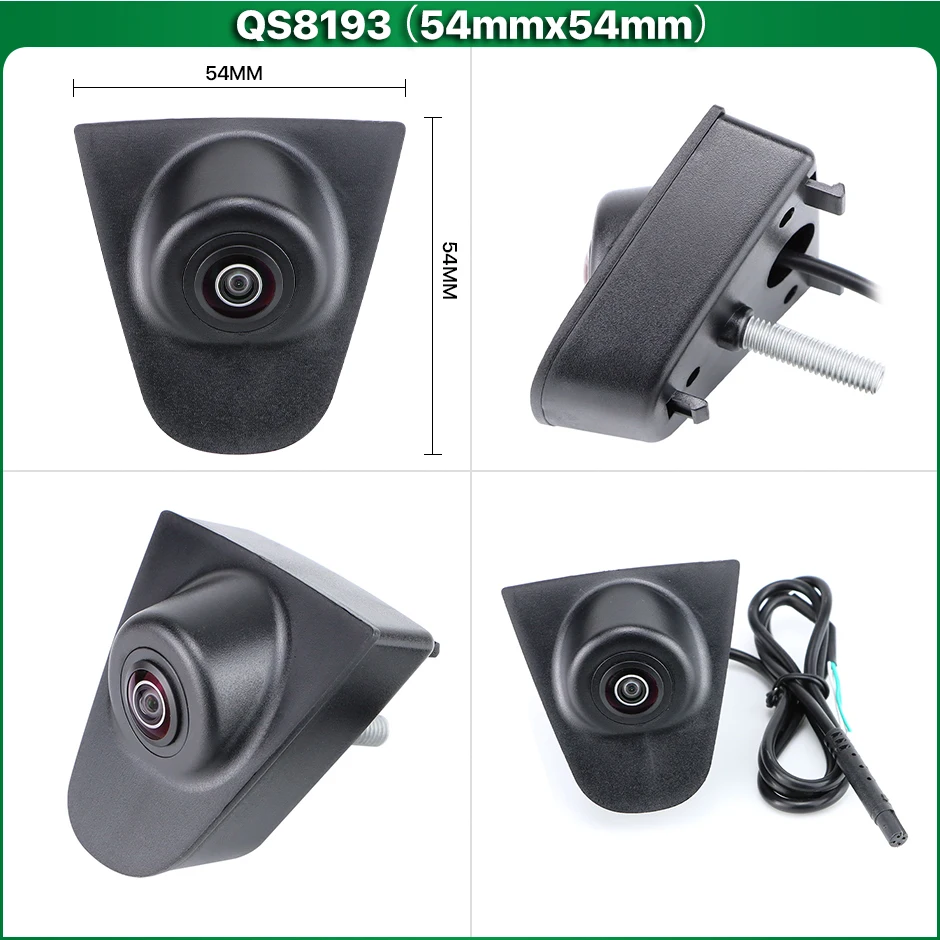

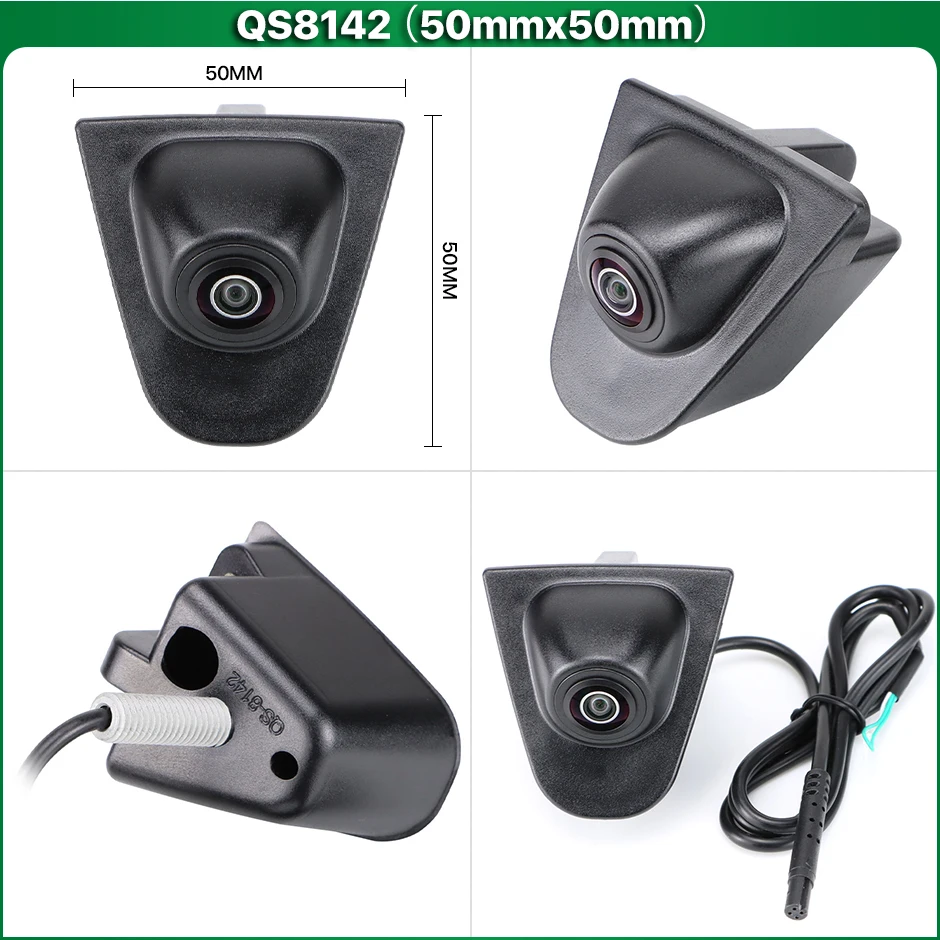

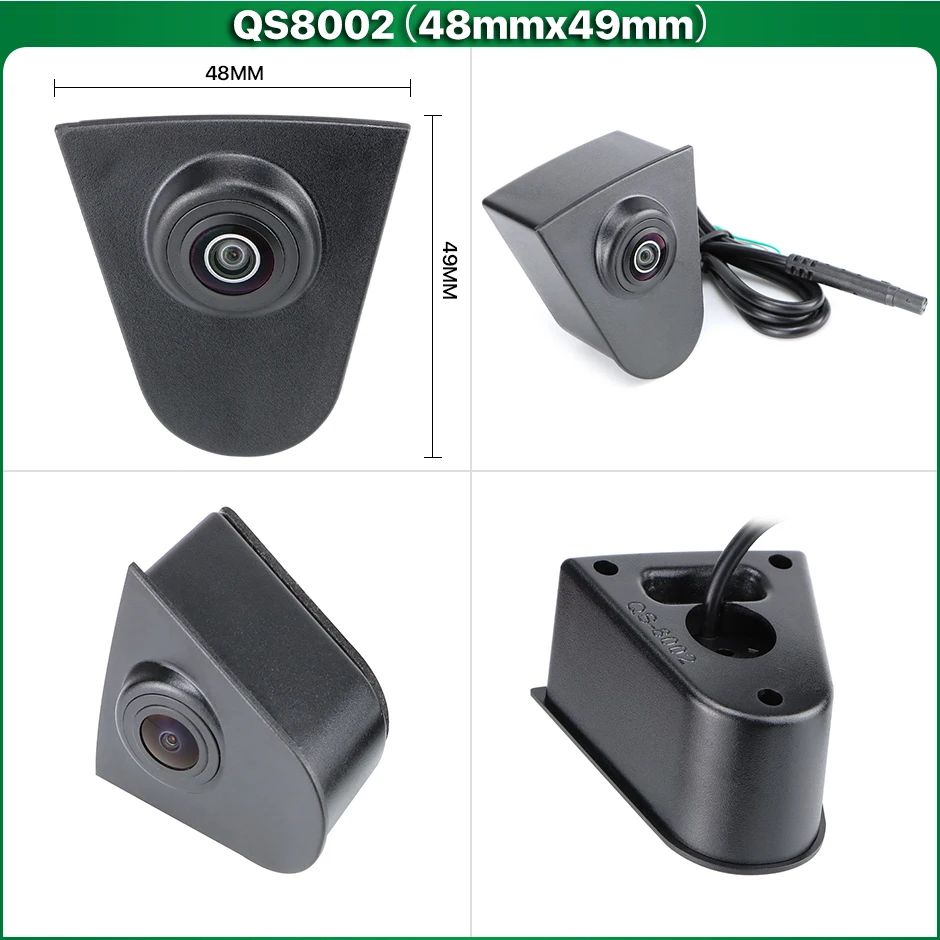

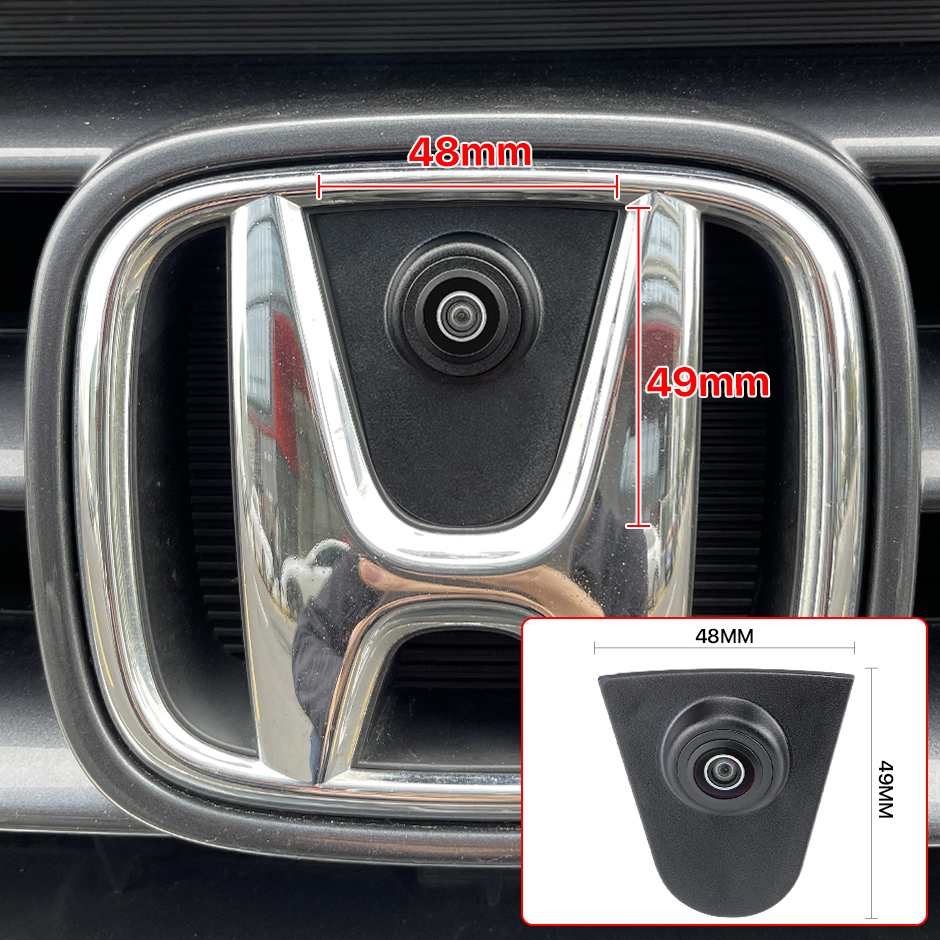

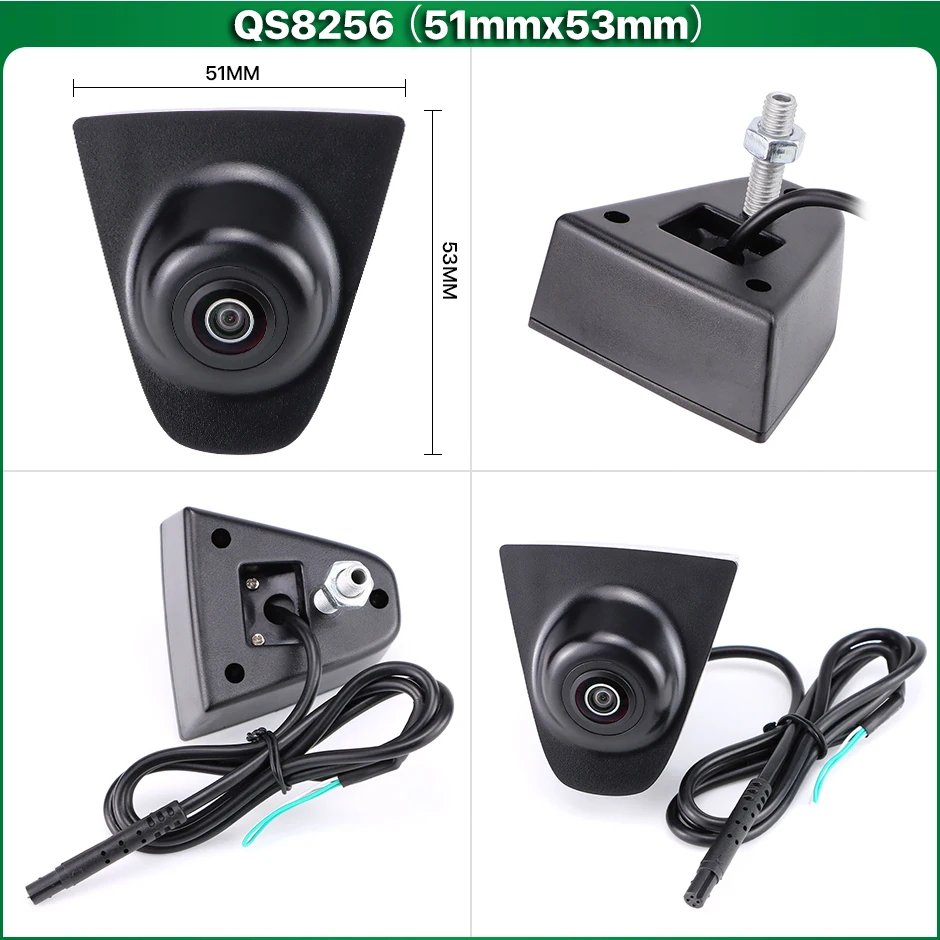

Tip: Please check if the size suits ( the logo camera have 7 kinds size optional )
About AHD1080P options:

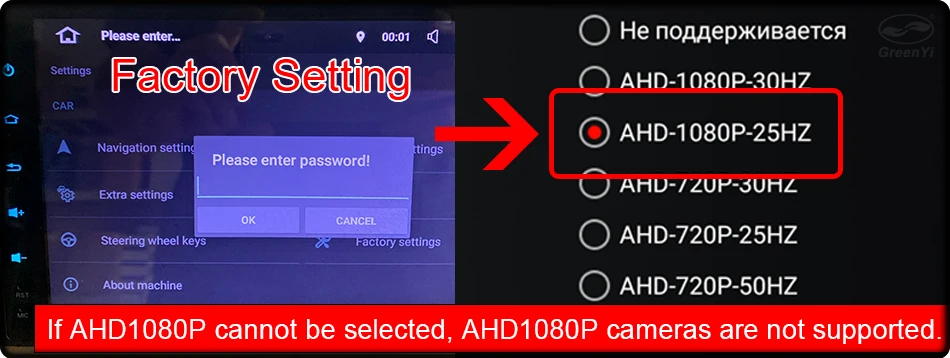

Please check whether the Android unit supports AHD1080P camera! If AHD1080P cannot be selected, AHD1080P cameras are not supported!
Go to Car settings >> Factory settings >> Reverse (picture) settings >> Select AHD1080P
3 Kinds of Product Parameters Optional :
↓↓ AHD Camera, Analog High Definition Technology (Option B, D, E)
• AHD 1920*1080P or CCD/CVBS 720*480P Peffective pixels ( Facultatif )
• Top GC2053 or 7080 AHD Chips
• Waterproof IP68
• 2000000 pixels
• Clearer and advanced bright color separation, signal filtering, 3D noise reduction technology, higher image clarity and better image reproduction.
• zero-delay front-end data is not encoded and compressed to the back end, full real-time, high fidelity.
• Highly integrated AHD front-end chip, high-definition quality products.

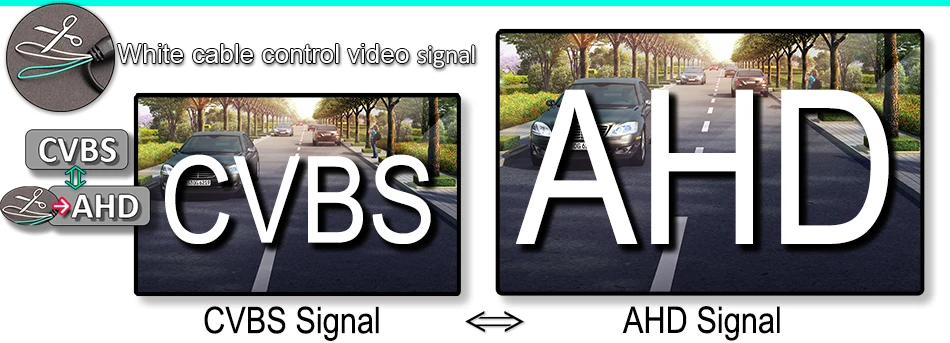

↑↑ Support video signal control AHD/CVBS (Option B, D, E)
Through signal control, it can support CVBS and AHD displays.
• C camera
( CVBS )+( 1280×720 )+( 170° )
Cut the white cable→( AHD )+( 1280×720 )+( 170° )
• D camera
( AHD1080P )+( 1920×1080 )+( 175° )
Cut the white cable→( CVBS )+( 1280×720 )+( 125° )
↓↓ 170° View Angle (Option B, D, E)
• Real 170° wide viewing angle. the display looks like fisheye, glass lens, with a wide field of vision, dangerous blind spots are a thing of the past.

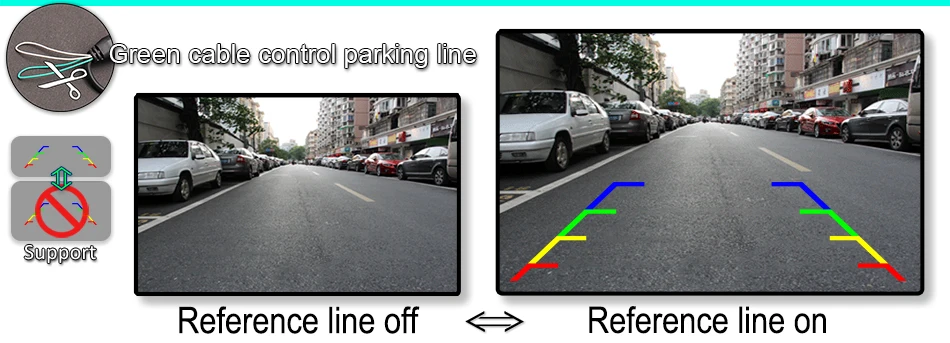

↑↑ Support parking reference line switch on/off
Some monitors come with a parking reference line that coincides with the camera’s reference line and interferes with the line of sight.
Wiring Diagram:
Support Waterproof
Product includes:
1. Front Camera
2. Package

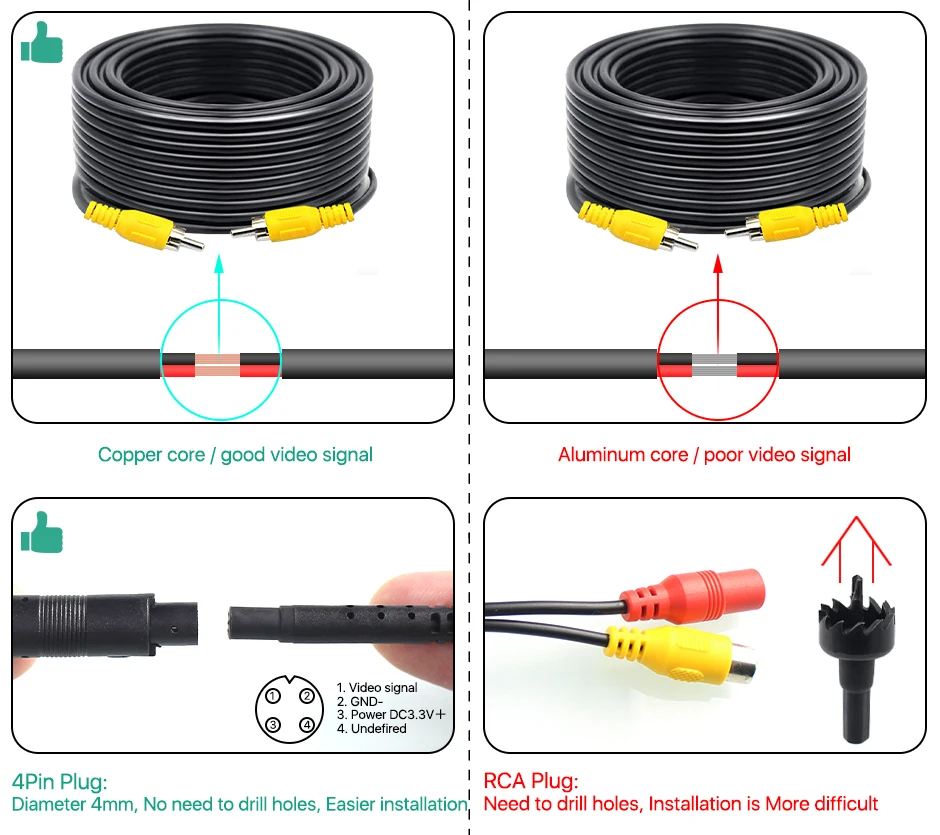

3. 6m Power Cable
4. Manual
