1080P HDMI Recorder Multi-track Industrial Grade Recording Box Videotape Device Live-streaming DVR with Remote Controller
- Video input: HDMI
- Video output: HDMI VGA CVBS
- Memory type: Micro SD/Flash Disk/Portable HDD
- Resolution: 720P 1080P
- Code rate: 4Mbps 6Mbps 8Mbps
- Sample rate: 16000 32000 44100 48000
- Language: Chinese/English/Japanese/Russian
- TV Mode: PAL/NTSC
- Recording mode: Power up/Manual
- Clip length: 5 10 15 30 minutes

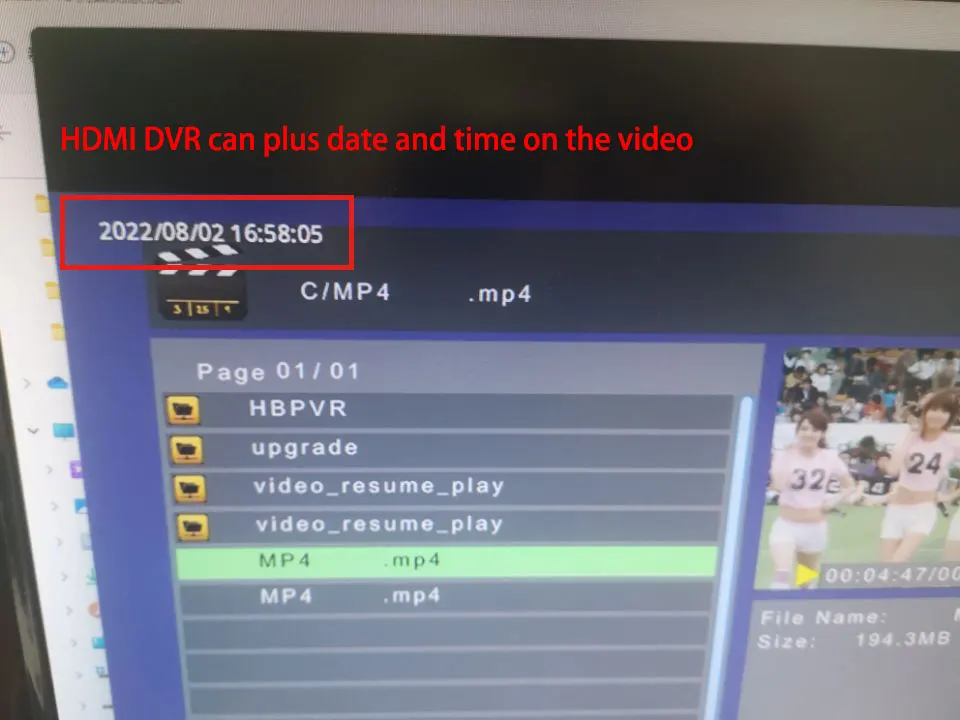

- Time/Device ID: Optional
- Overwrite: Support
- Password: 6 numbers
- Input power: 8V-30V
- Power consumption: 3.6W
- 1: HDMI RECORDER
- 2: NVR
- 3: DVR
HDMI Recorder DVR OVERVIEW

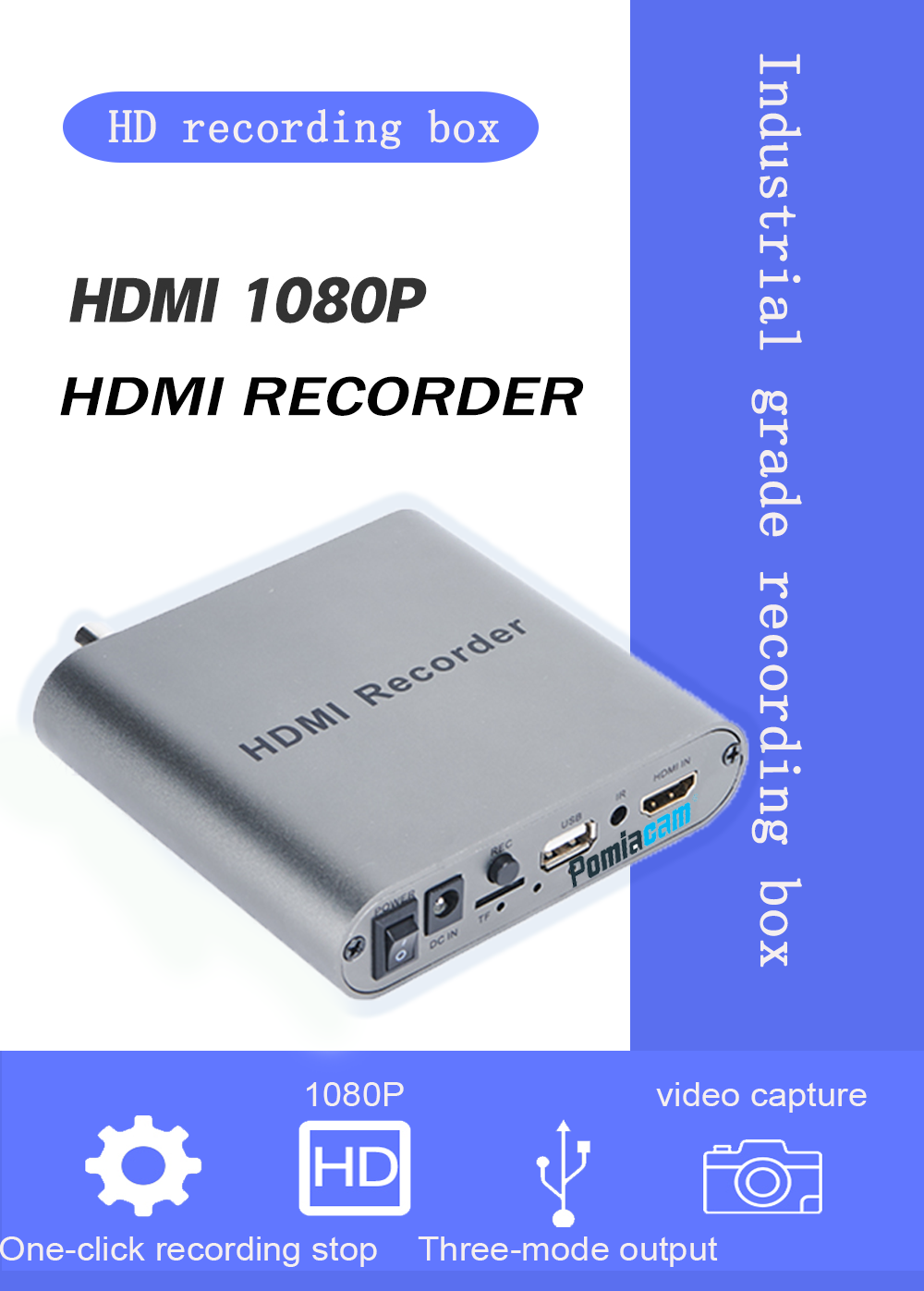

multi-track industrial grade recording box HDMI recorder Micro SD card videotape device live-streaming DVR with remote controller
HDMI Recorder DVR Features:
- HDMI recorder with 1080P / 720P resolution HDMI recorder signal input HDMI recorder

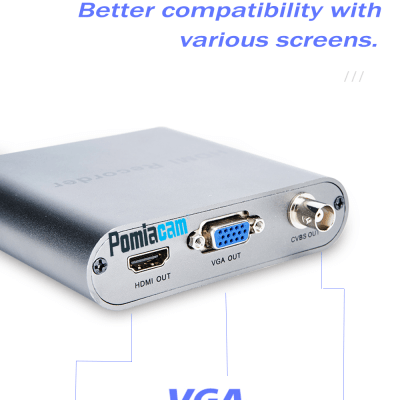

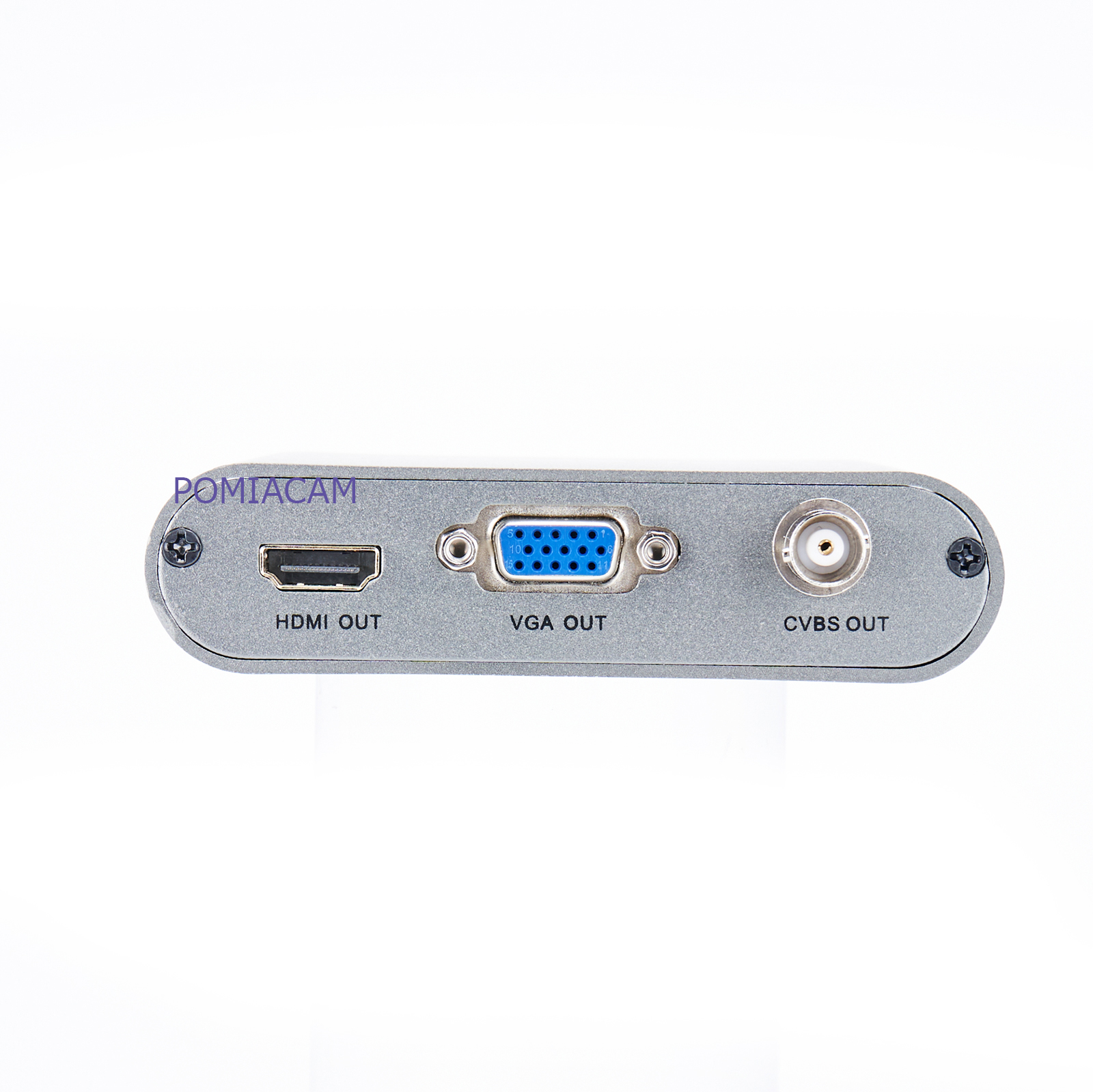

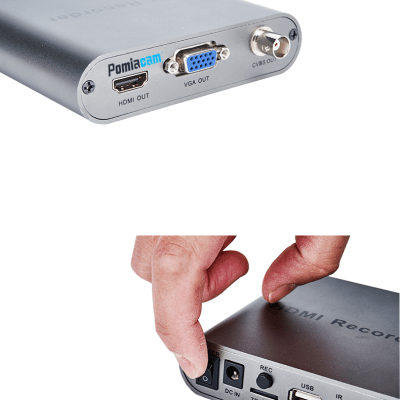

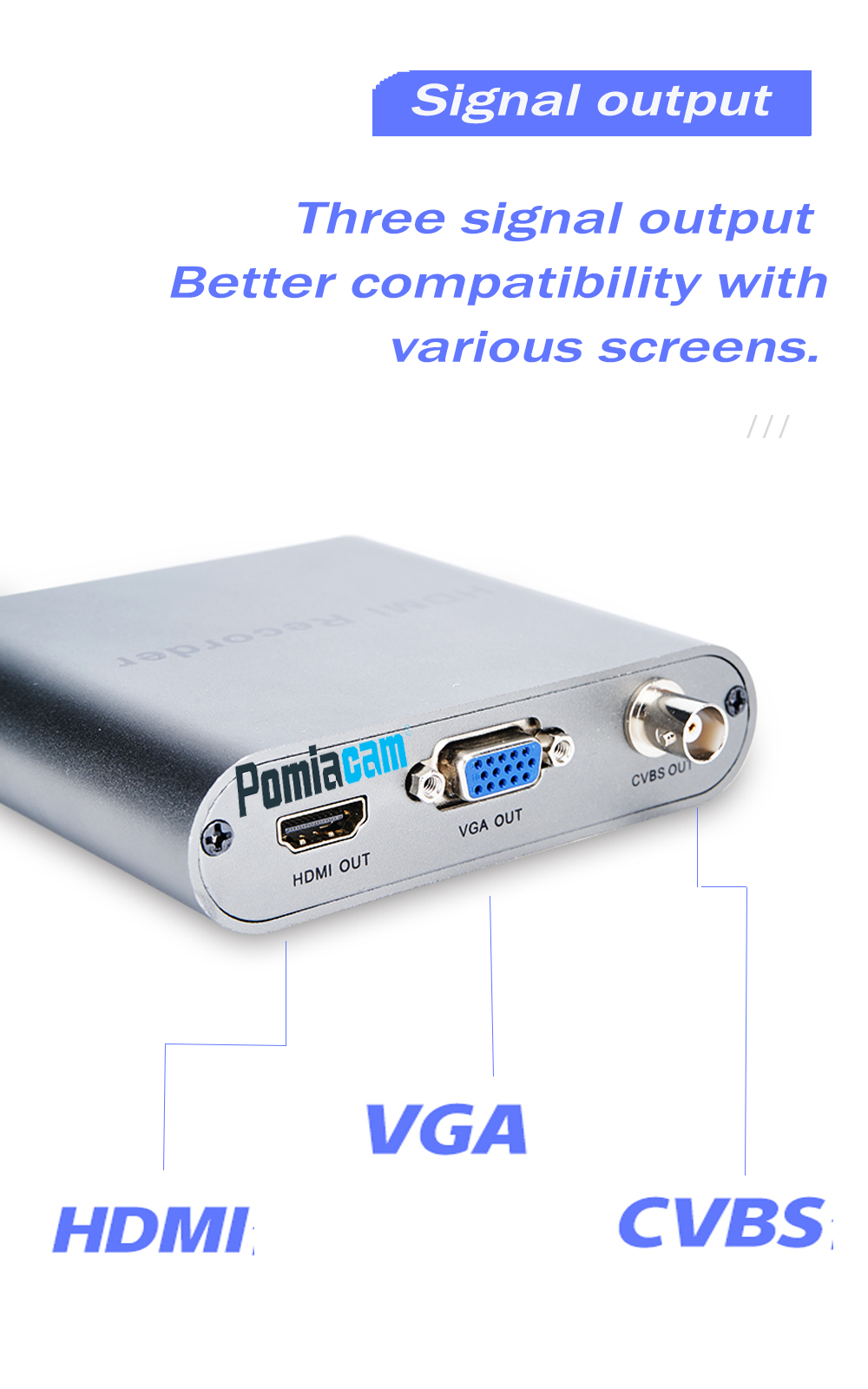

- supports HDMI / VGA / CVBS signal output HDMI recorder
- supports Chinese, English, Russian, and Japanese.
- There are menu options in the HDMI recorder.

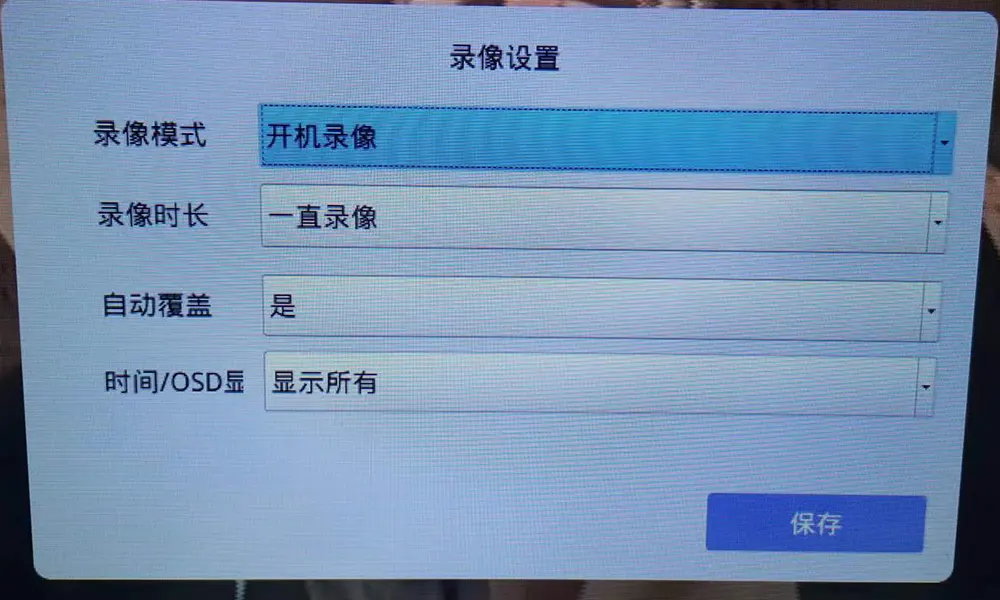

- HDMI video recorder on / manual recording mode optional
- 5-30 minutes of recording time in an HDMI recorder is optional
- HDMI recorder uses 8V-30V wide voltage
HDMI Recorder DVR Description

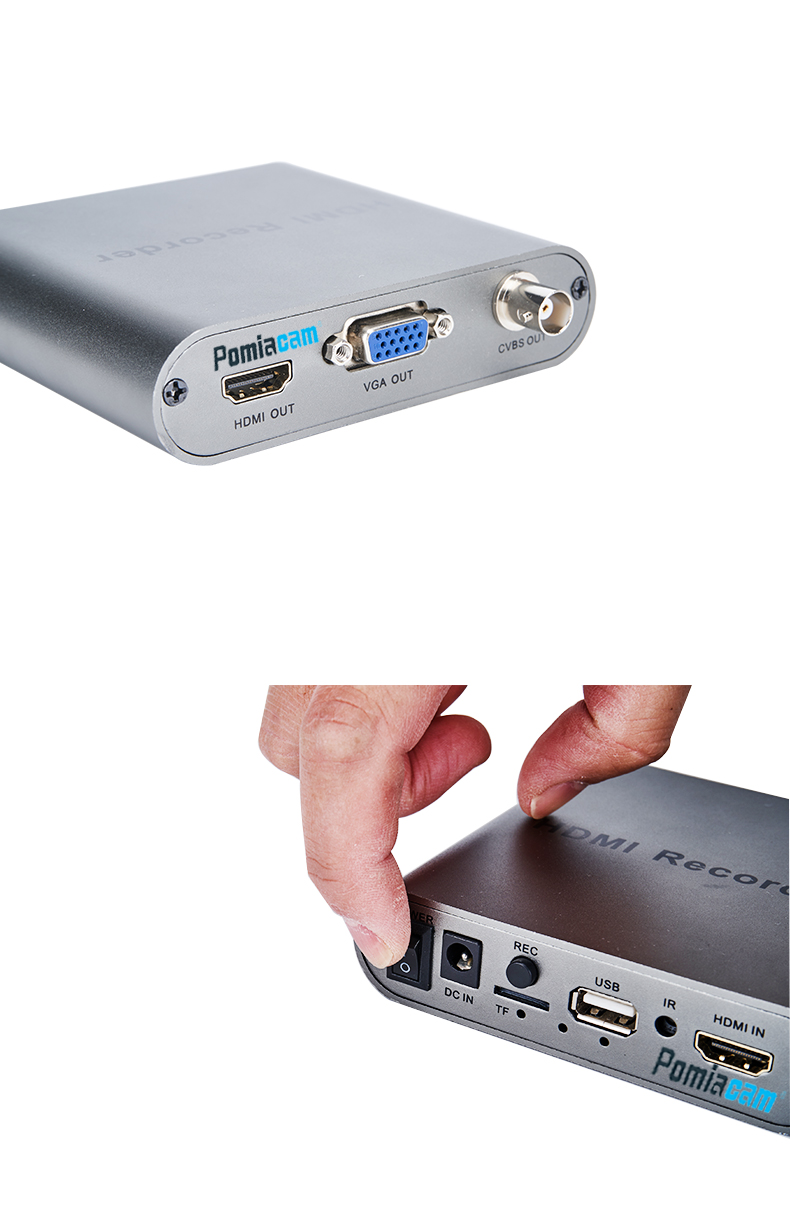

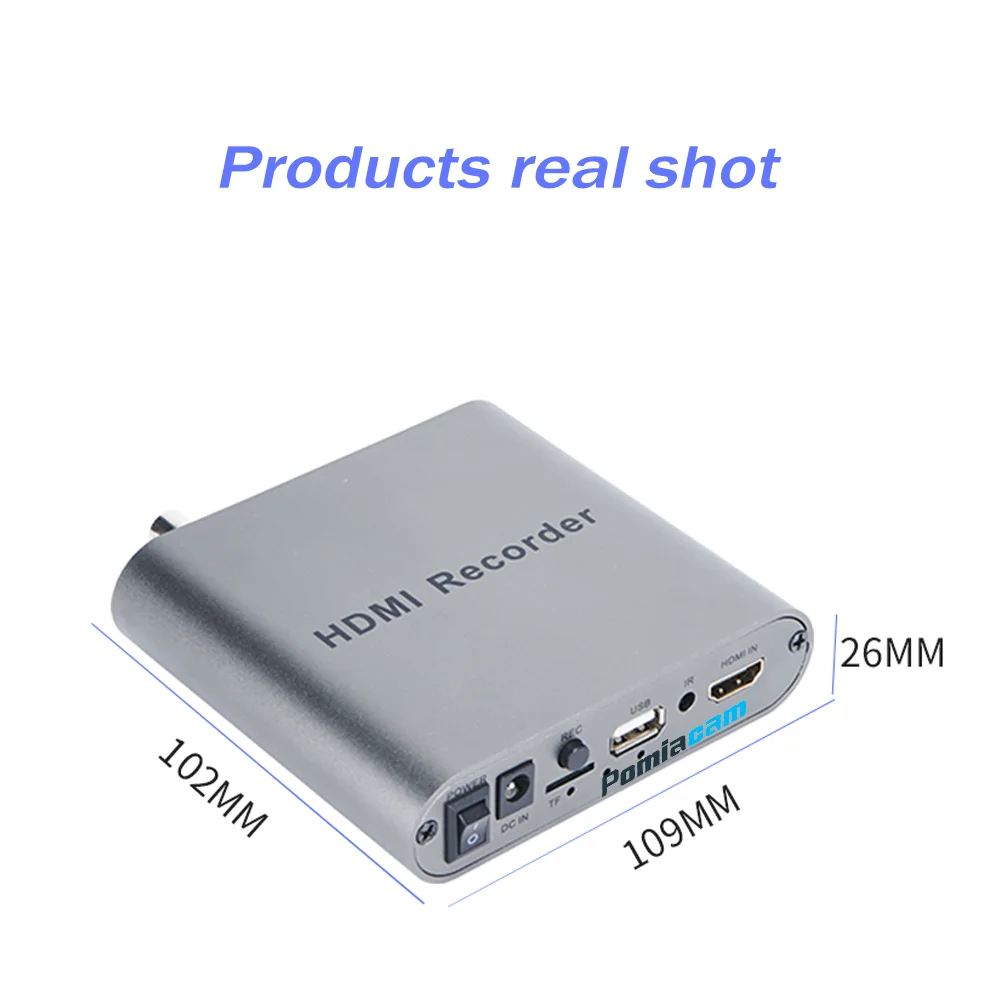

This is an HD Recorder that supports 1080P and 720P HDMI video input, it also supports HDMI/VGA/CVBS video output. Recording media including Micro SD card, Flash disk, and also portable HDD.
FAQ
Q: Hi, does this box allow an HDMI source to be recorded on an external Hard drive powered by the USB port, and played back in HDMI?
A: Yes, our HDMI recorder supports the external Hard drive and playback via HDMI output.
Q: If both the TF card and U disk are connected, can they be supported at the same time?
A: The machine first recognizes the TF card, and secondly recognizes the U disk, which will not be
recognized at the same time.
Q: Why does the remote control not respond?
A: Please check whether the remote control TV is out of power and remove the gasket from the machine’s IR port during operation.
Q: Can you show me the user manual?
A: HDMI Recorder Users Manual (PDF online)
Q: This device only records HDMI directly from cameras, not edited camera files from my computer; therefore, it’s unsuitable for my needs.
A: We tested the HDMI signal output from other devices to our HDMI recording device. I don’t know which parameters you changed in the HDMI signal you mentioned after editing. If you have relevant video files, please send them to us for verification.
Our equipment is only for the general HDMI signal standard. We do not make any promises to guarantee the use of any specially processed HDMI signal. Regarding the failure to burn, a big reason is related to the TF card. Because it is an HDMI signal and has 1080p, please check whether your TF card is a high-speed card. You cannot use a low-speed card. The capacity should be less than 1TB.
