170° AHD 720P Trajectory Car Rear View Camera For Great Wall Hover H3 H5 H6 Haval Night Vision Reverse Vehicle Parking
- Guiding Line: Yes
- Material Type: Abs
- Length of Video Cable: 6M
- Lens Material: Glass
- Wire or Wireless: Wired
- Alarm Type: Vehicle Backup Cameras
- Alarm Type: Accessories
- Alarm Type: Rear Side
- Shell Material: Plastic
- Pixels: AHD 1280*720 or CVBS 960*720 Optional

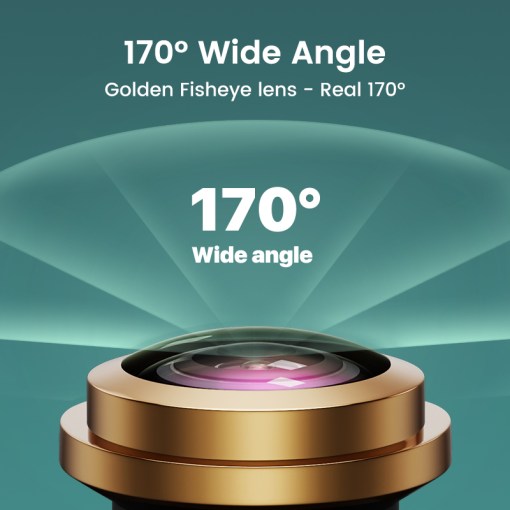

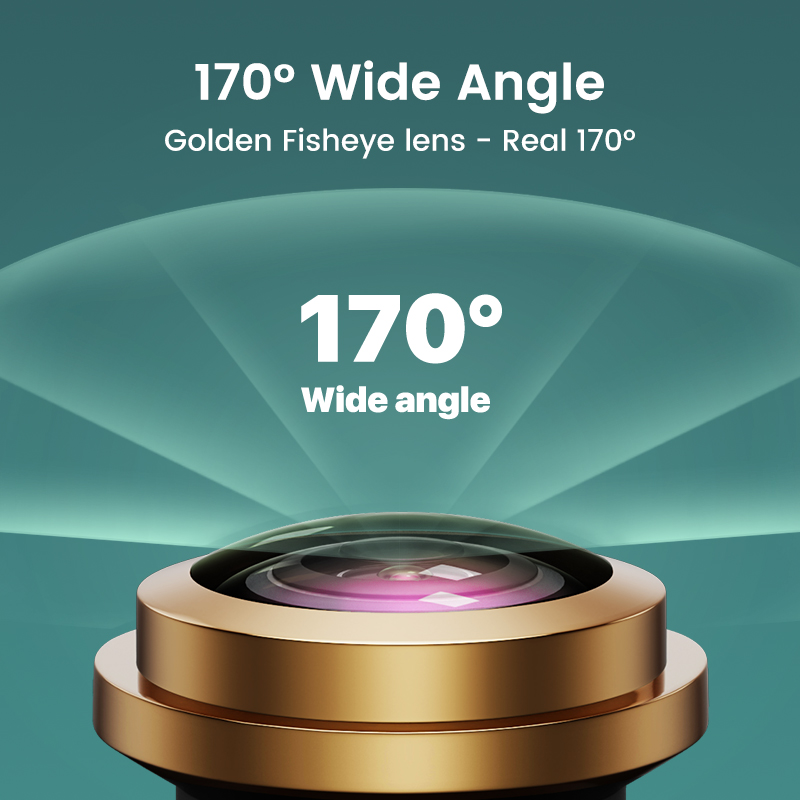

- View Angle: 170 Degree
- Night Vision: Support

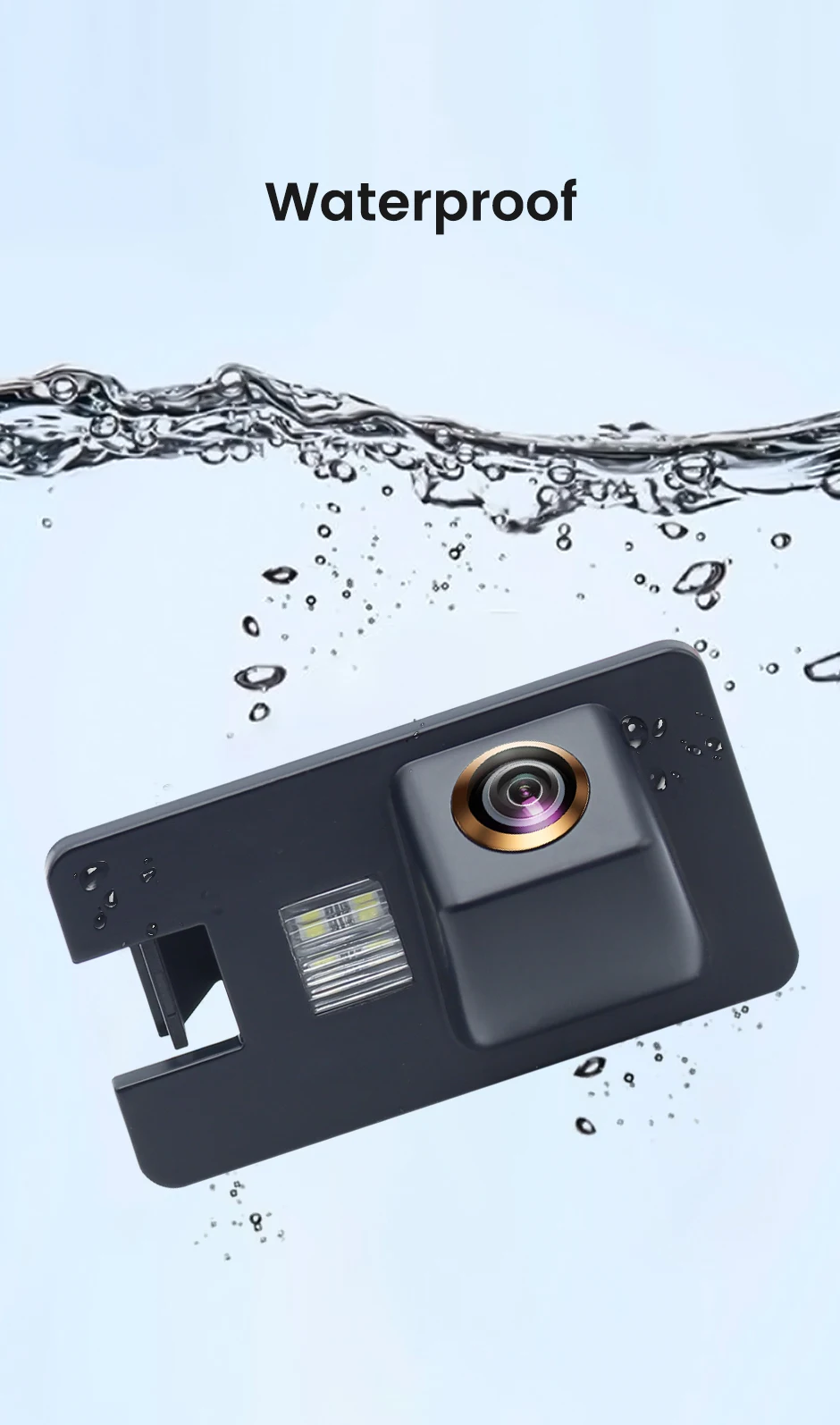

- Waterproof: Support
- Power: DC 12V~24V
- TV System: NTSC
- White Balance: Auto

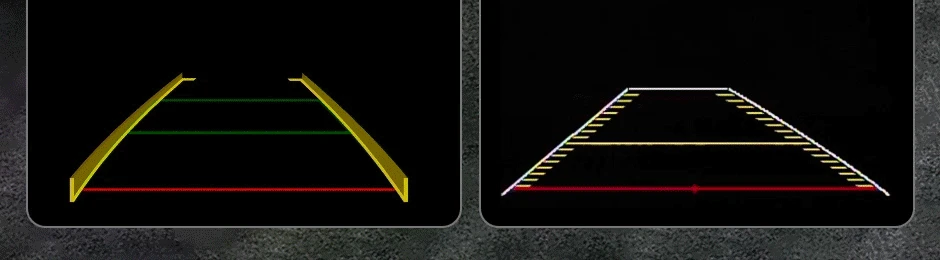

- Trajectory: Dynamic Trajectory Parking Line
- 6m Video Cable: Pure Copper Cable
- Use: reverse reversing 4pin vehicle parking backup camera

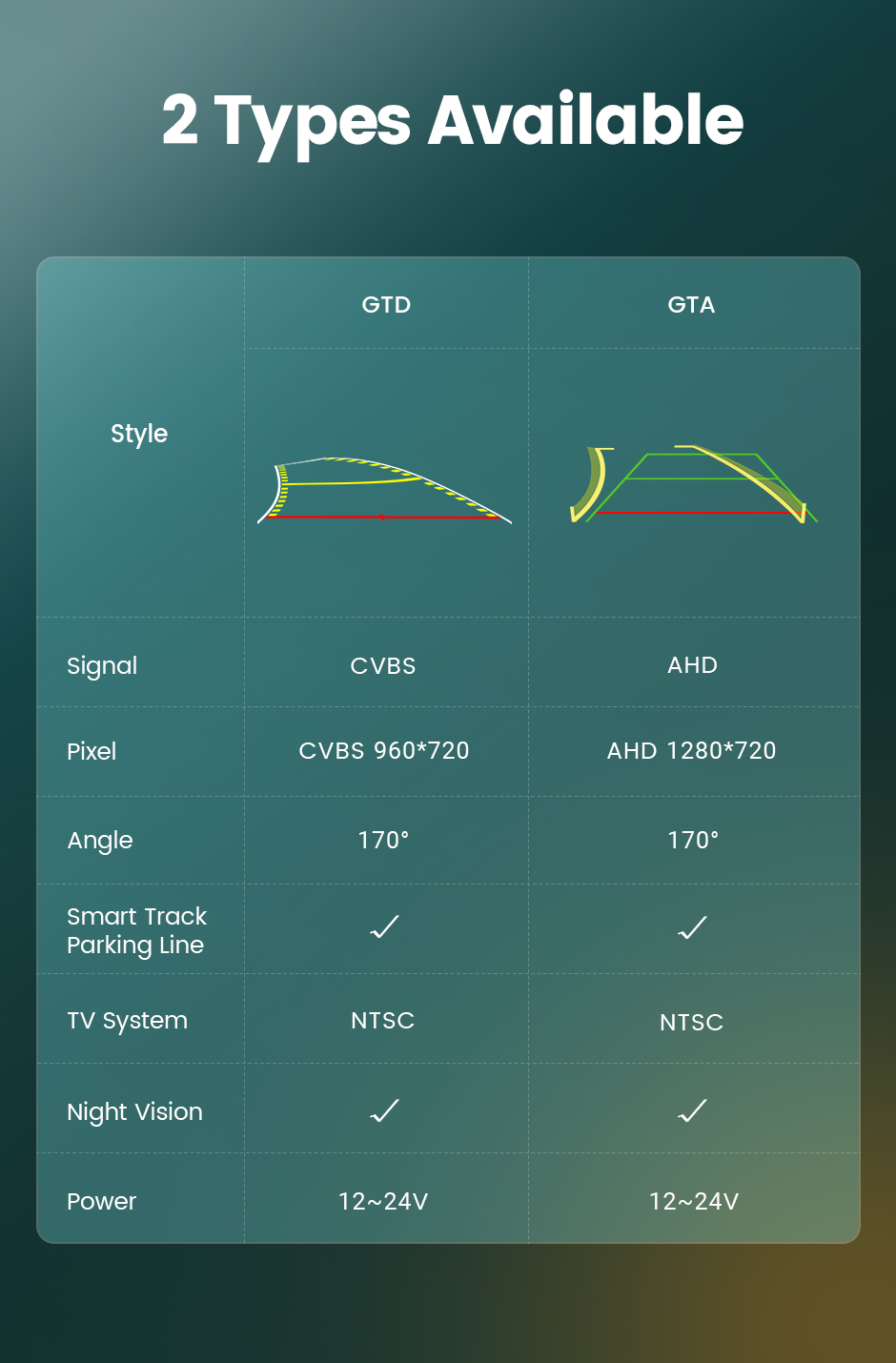

2 Cameras Style Optional

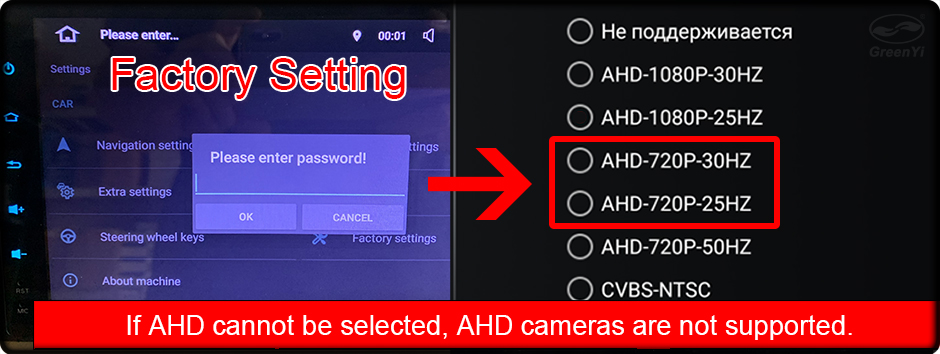

Tips, About GTA Style: Please check whether the Android unit supports an AHD camera!
If AHD cannot be selected, AHD cameras are not supported!
Go to Car settings >> Factory settings >> Reverse (picture) settings >> Select AHD
Cameras with CVBS video signal are universal for all monitors, but AHD will only work with AHD monitor!

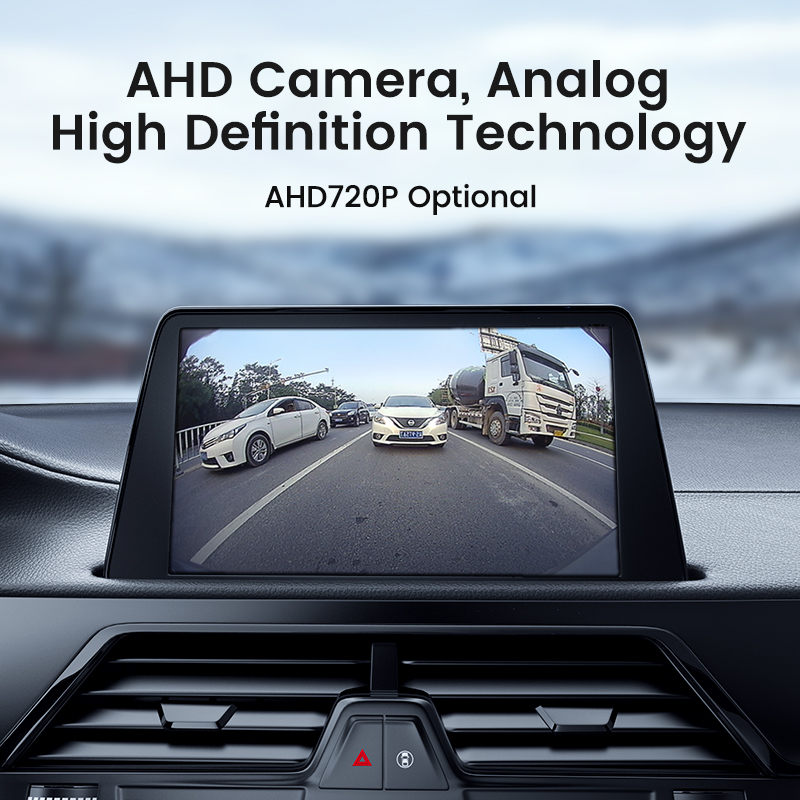

AHD Camera, Analog High Definition Technologie
Support Intelligent Dynamic Trajectory (GTA/GTD Style)

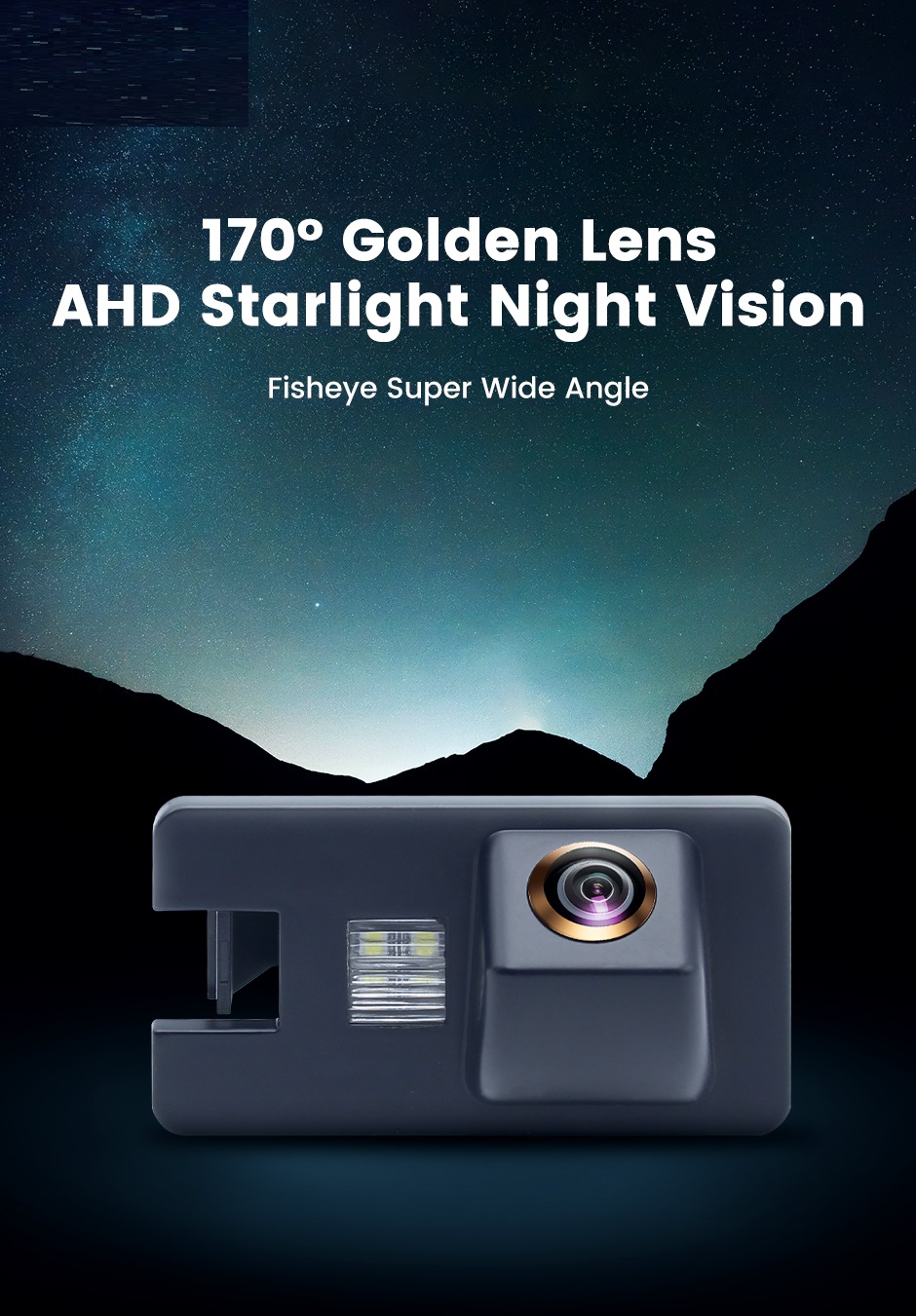

Top starlight night vision
Pure Copper 6m Video Cable
12V-24V Integrated Step-down Module
Installation Diagram

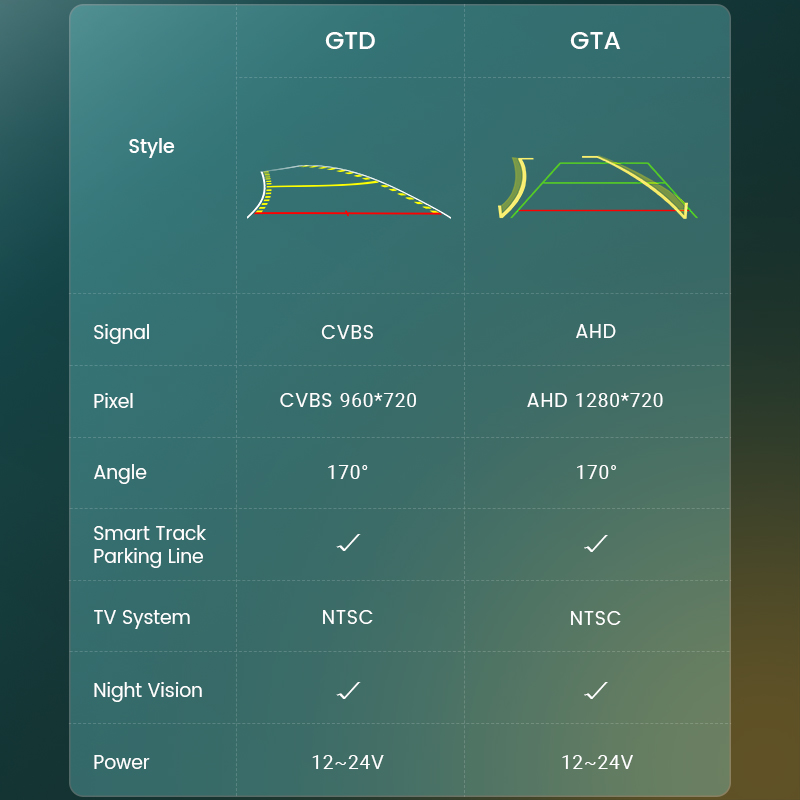

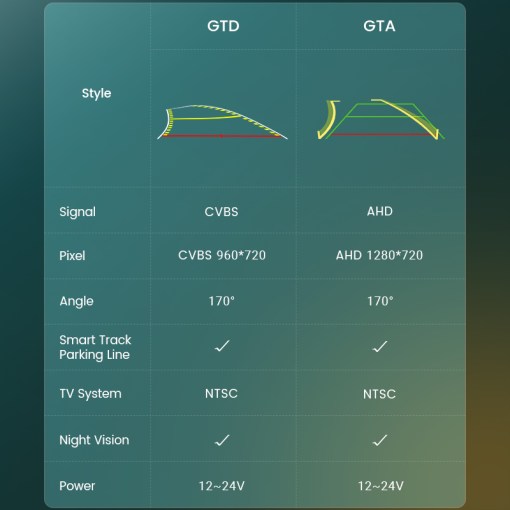

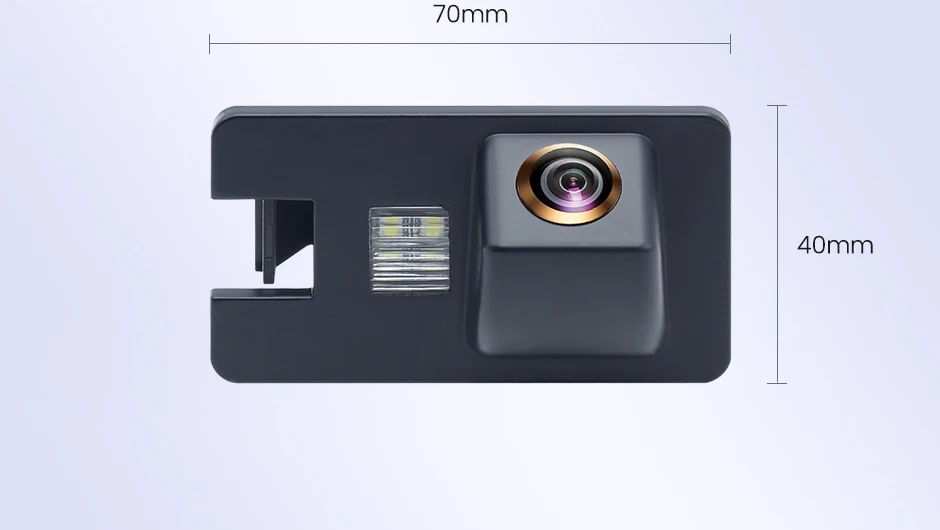

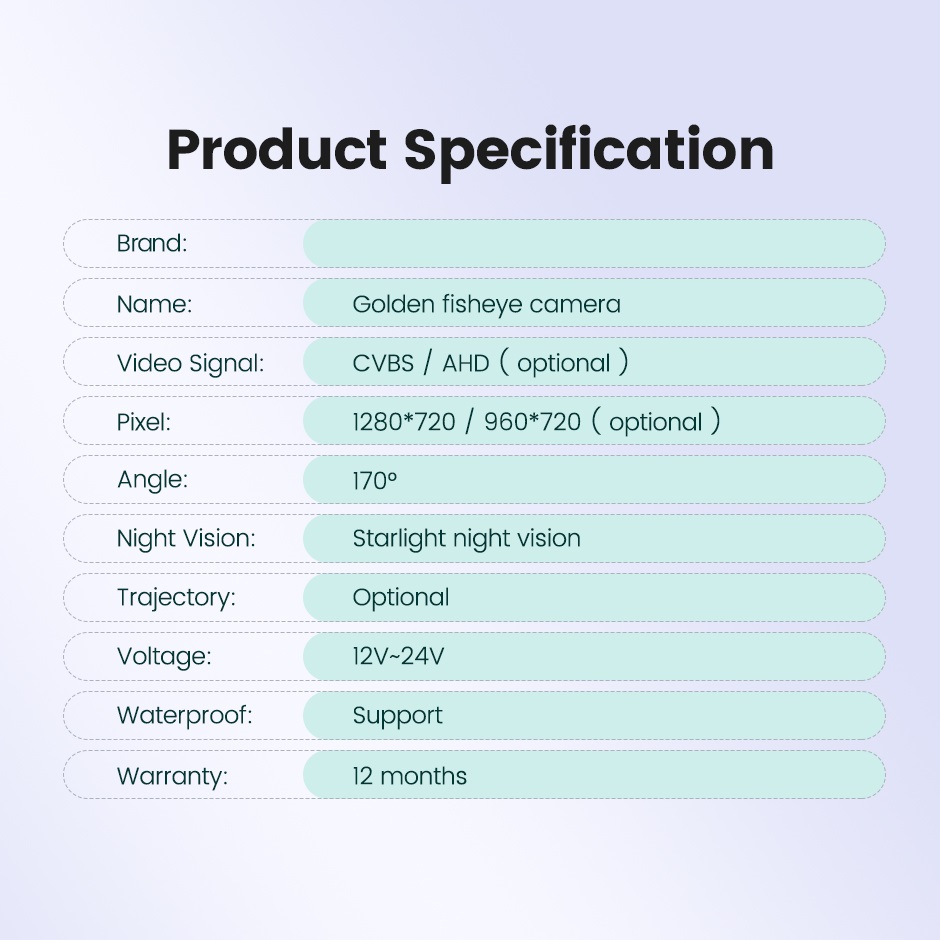

Product Specification

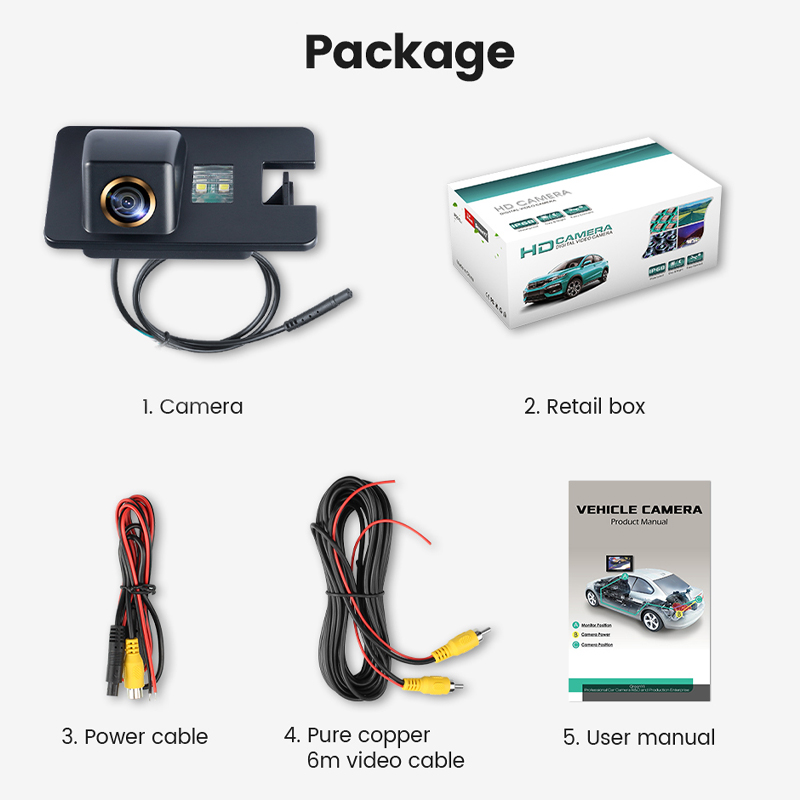

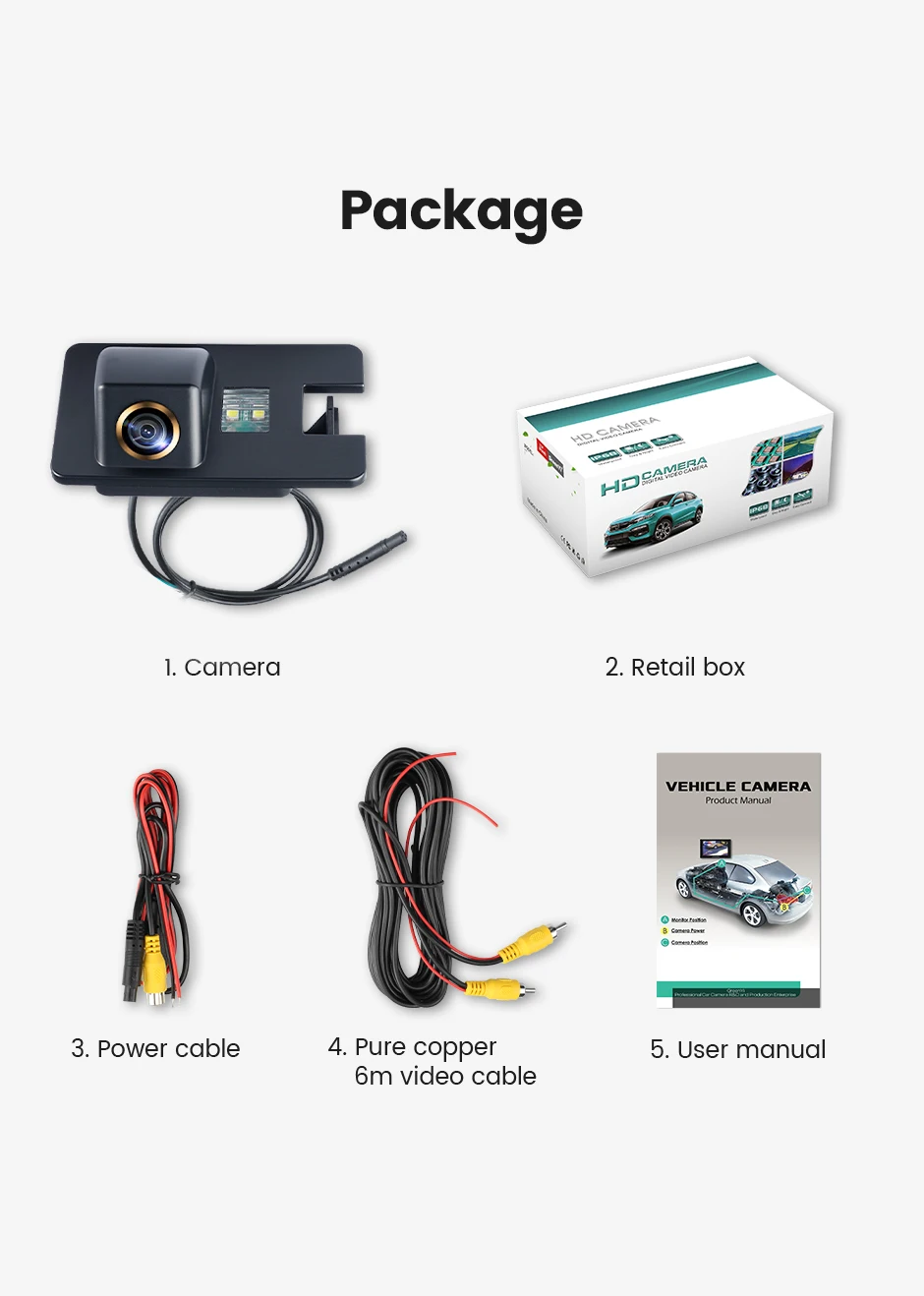

Package
1. Rear view camera
2. Retail box
3. Power cable
4. Pure copper 6m video cable
5. User manual
FAQ：
How to choose a rear view camera that can be suitable for my car model?
A) According to the main car model, search in the shop, there will be several types of cameras, and then buy according to your actual original license plate/ handle.
B) Or you can measure your size and consult customer service to confirm the camera model.
Tip: because there may be slight differences between cars produced in different countries, please check the size before buying.
After connecting the rear view camera, the screen shows no signal, a black screen, and no picture, what should I do?
A) Please check your connection, red trigger line should connect to your reverse light and monitor the reverse-in cable.
B) Please check your signal format, and choose the right signal to run the camera.
C) If your monitor has an AUX-IN function, you can connect to the AUX-IN.
Tip: CVBS cameras can test the performance on the TV. Universal cameras with 4Pin plugs can only be installed with our cables. You can consult customer service if you encounter any problems during the installation process.
After connecting the rear view camera, the screen shows black and white, what should I do if there is no color?
A) Choosing the wrong camera system(such as PAL/NTSC) will cause the screen to be black and white. Please select the right system to run the camera and restart the camera power. CVBS camera is NTSC system, AHD1080P camera is PAL system.
B) Please check whether the 6M line is normal, please replace it with another 6M cable to test the camera.
How does the dynamic guideline rear view camera work?
The dynamic trajectory camera adjust the guideline automatically according to the moving position and speed of the car body and angle, it does not move according to the steering wheel. The dynamic trajectory camera can’t disable the guideline.
