HD AHD1080P 170° Replacement Tailgate Door Handle Key-Hole Rear View Pickup Truck Camera for Toyota Hilux Revo 2015-2021
- Guiding Line: Yes
- Alarm Type: Vehicle Backup Cameras
- Alarm Type: Accessories
- Alarm Type: Front Side
- Alarm Type: Rear Side
- Lens Material: Glass
- Shell Material: Plastic
- Certification: CE
- Certification: RoHS
- Wire or Wireless: Wired
- Material Type: Abs
- Length of Video Cable: 10M
- Pixels: AHD 1080P or 720P Optional
- View Angle: 170 Degree Optional
- Night Vision: Top Starlight Night Vision

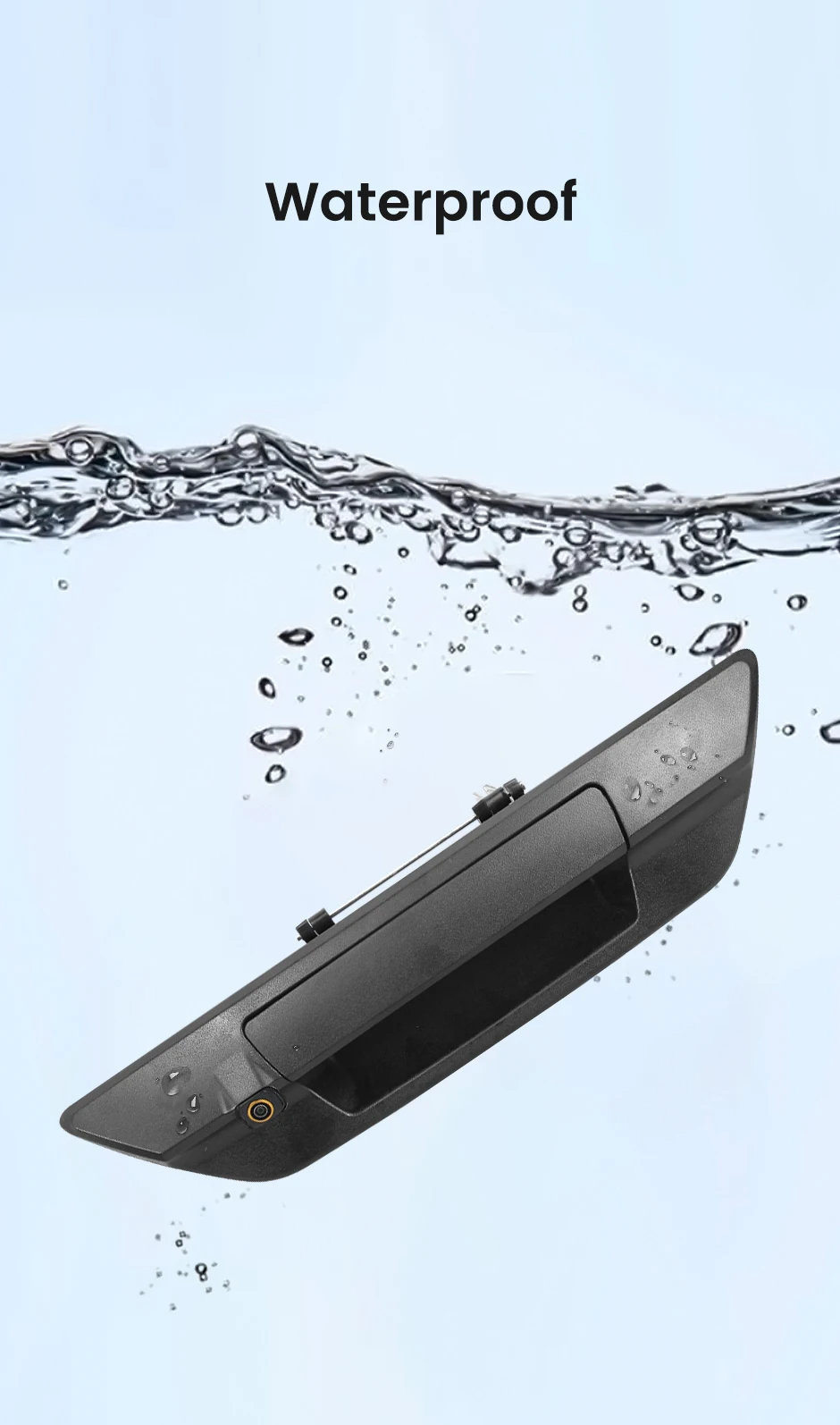

- Waterproof: Support
- Power: DC 12V~24V
- TV System: NTSC or PAL Optional
- White Balance: Auto
- Trajectory: Trajectory Optional
- 6m Video Cable: Pure Copper Cable
- Use: reverse reversing 4pin vehicle parking backup camera
- Model Number: BG484
Tips, About GAHD Style: Please check whether the Android unit supports the AHD1080P camera!
If AHD1080P cannot be selected, AHD1080P cameras are not supported!
Go to Car settings >> Factory settings >> Reverse (picture) settings >> Select AHD1080P
Cameras with CVBS video signals are universal for all monitors, but AHD will only work with AHD monitors!
AHD Camera, Analog High Definition Technologie

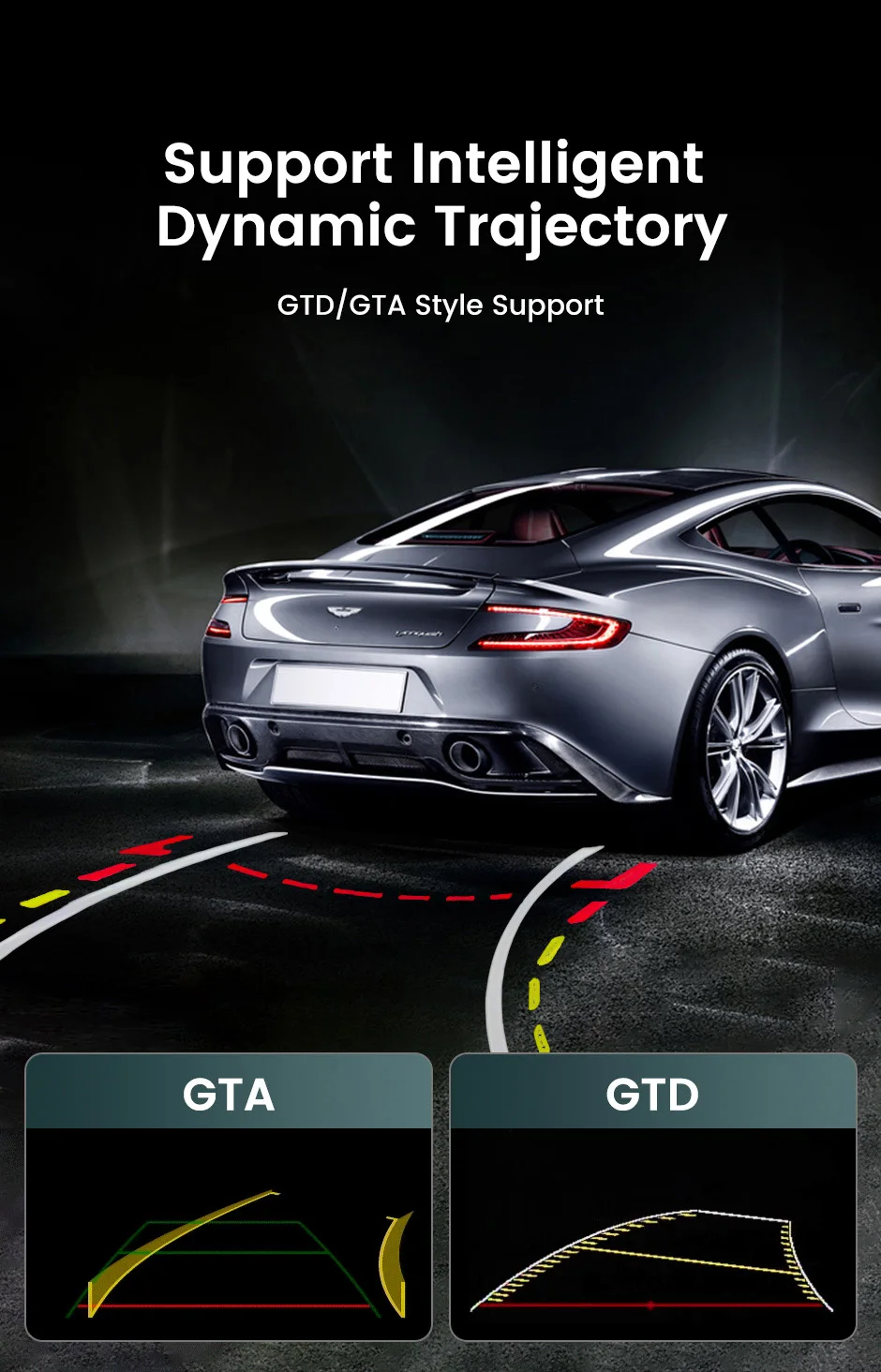

Support Intelligent Dynamic Trajectory (GTD/GTA Style)
Top starlight night vision
Support Video Signal Control and Parking Line Switch (GFA/GAHD Style)
Pure Copper 10m Video Cable

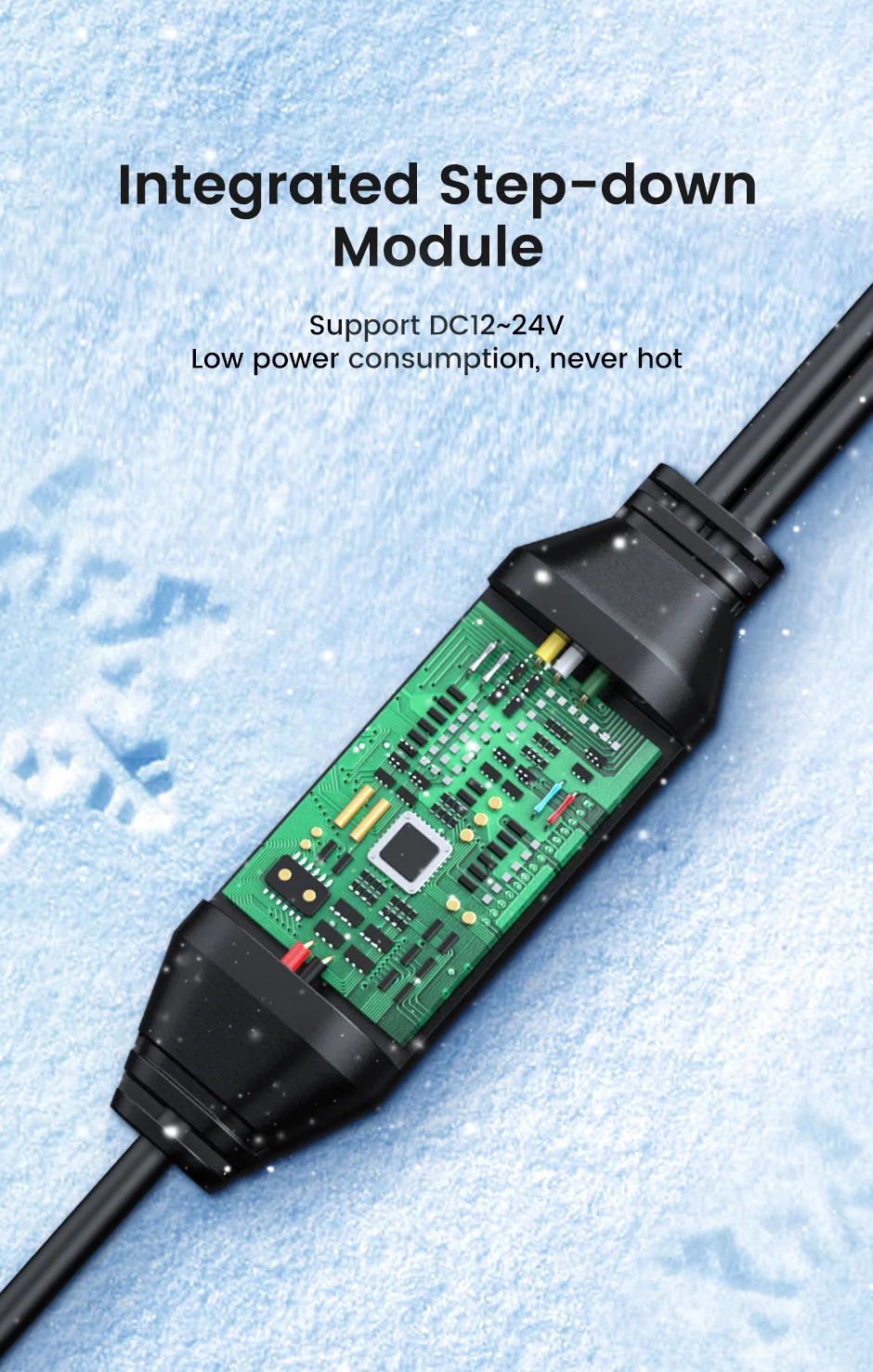

12V-24V Integrated Step-down Module

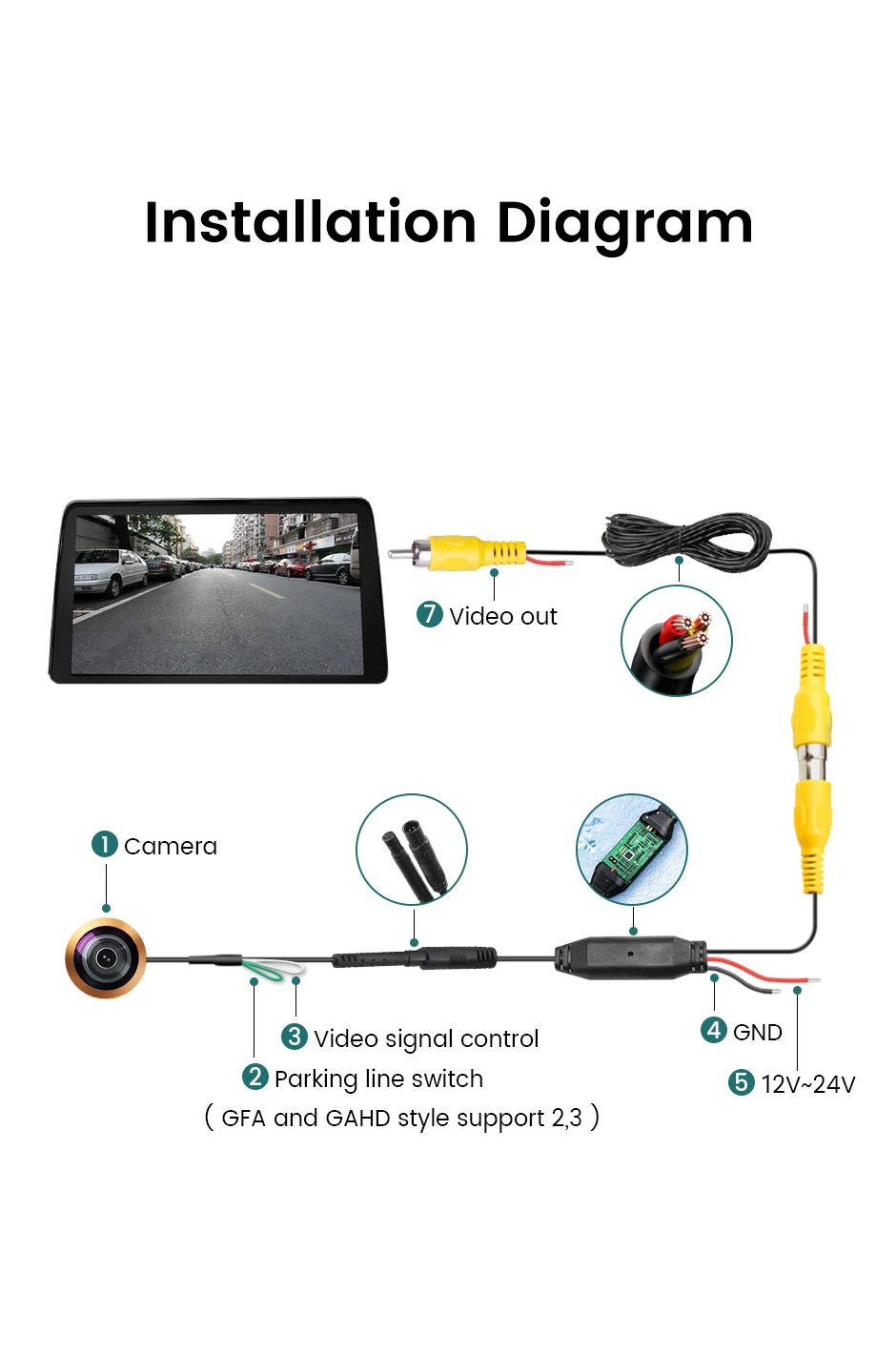

Installation Diagram

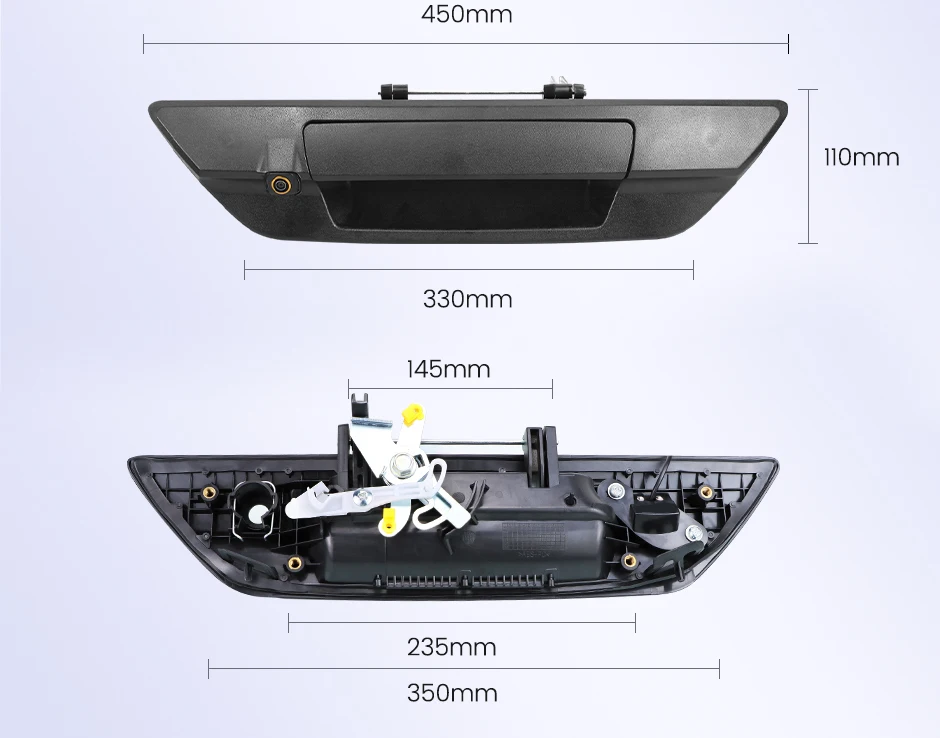

Product Specification

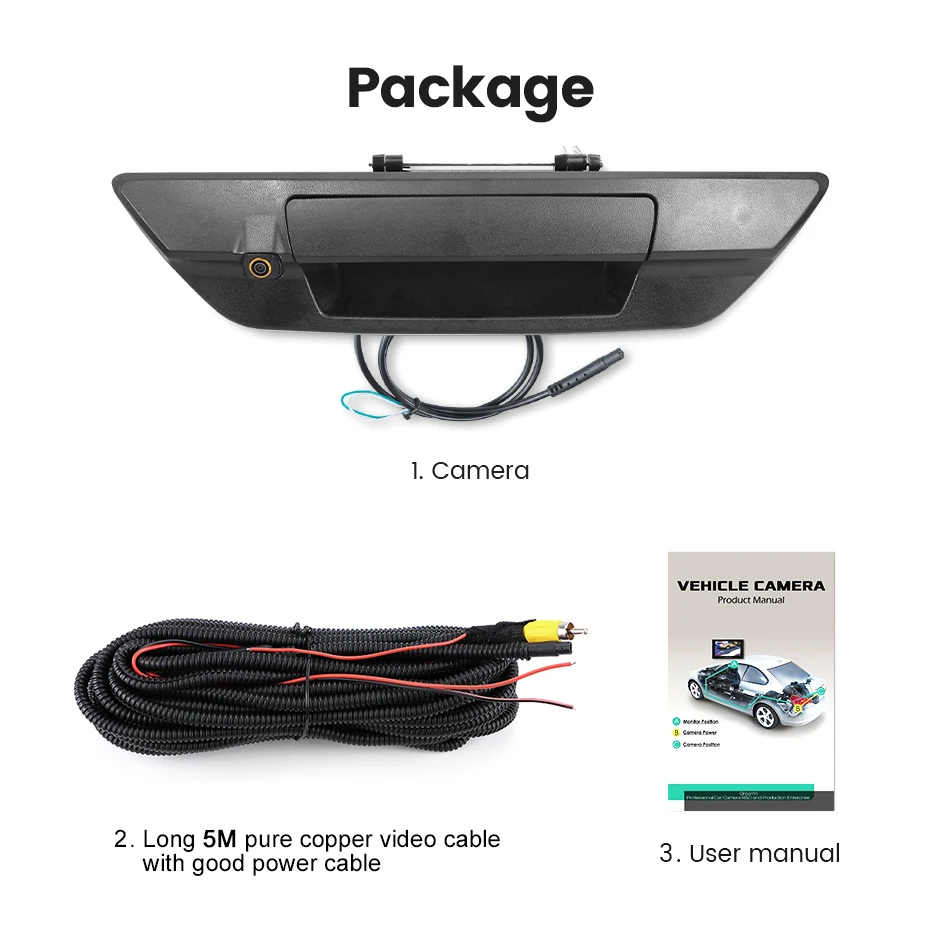

Package
1. Rear view camera
2. Power cable ( Must use our power cable )
3. Pure copper 5m video cable
4. User manual
FAQ：
How to choose a rearview camera that can be suitable for my car model?

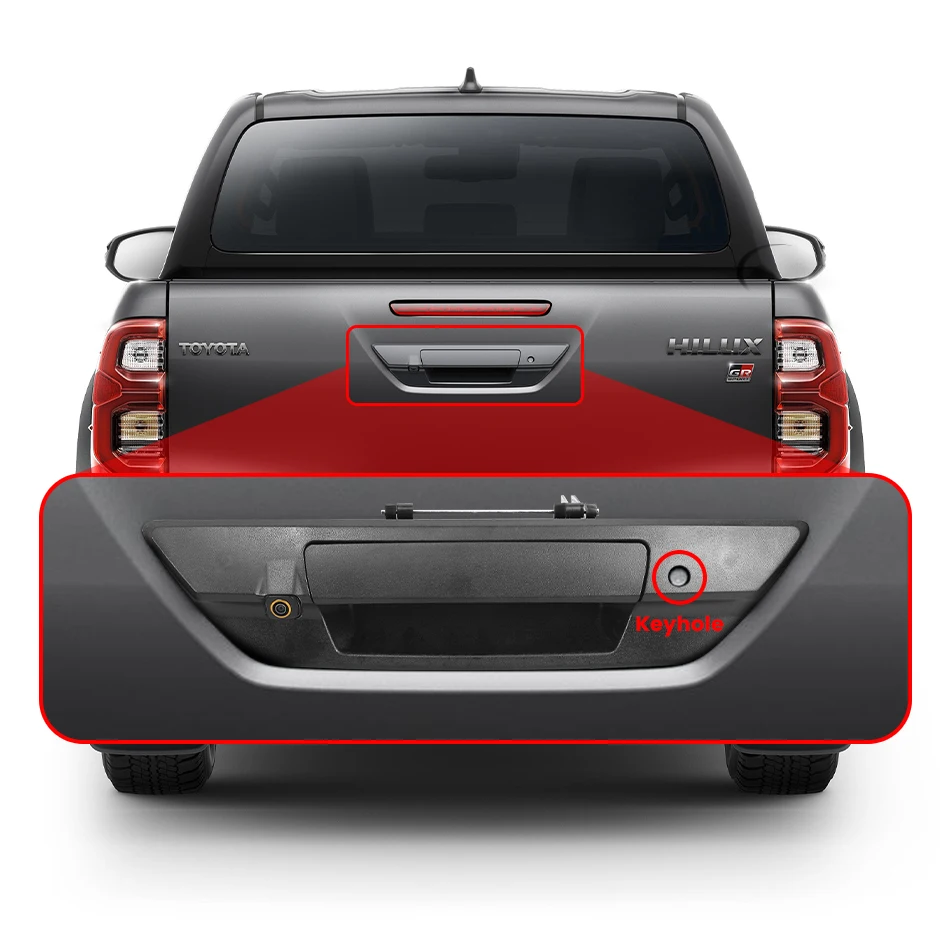

A) According to the main car model, search in the shop, there will be several types of cameras, and then buy according to your actual original license plate/ handle.
B) Or you can measure your size and consult customer service to confirm the camera model.
Tip: because there may be slight differences between cars produced in different countries, please check the size before buying.
After connecting the rearview camera, the screen shows no signal, a black screen, and no picture, what should I do?
A) Please check your connection, red trigger line should connect to your reverse light and monitor the reverse-in cable.
B) Please check your signal format, and choose the right signal to run the camera.
C) If your monitor has an AUX-IN function, you can connect to the AUX-IN.
Tip: CVBS cameras can test the performance on the TV. Universal cameras with 4Pin plugs can only be installed with our cables. You can consult customer service if you encounter any problems during the installation process.
After connecting the rearview camera, the screen shows black and white, what should I do if there is no color?
A) Choosing the wrong camera system(such as PAL/NTSC) will cause the screen to be black and white. Please select the right system to run the camera and restart the camera power. CVBS camera is NTSC system, AHD1080P camera is PAL system.
B) Please check whether the 6M line is normal, please replace it with another 6M cable to test the camera.
How does the dynamic guideline rear view camera work?
The dynamic trajectory camera adjusts the guideline automatically according to the moving position and speed of car body and angle, it does not move according to the steering wheel. The dynamic trajectory camera can’t disable the guideline.
What functions do the white and green cables of the rearview camera control?

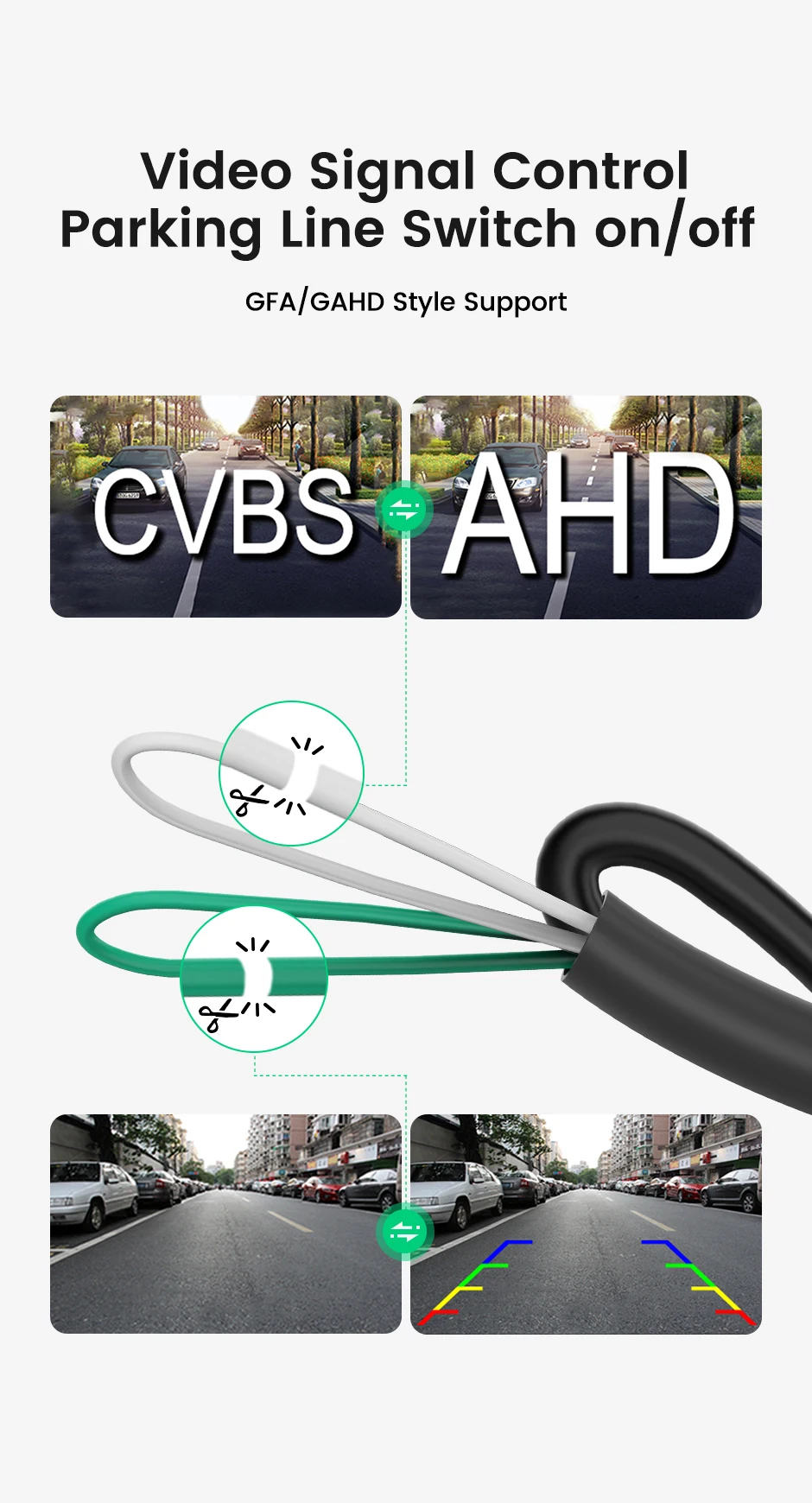

A) White cable: video signal control
• GFA camera:
( CVBS )+( 1280×720 )+( 170° )
Cut the white cable(reconnect the camera power)→( AHD )+( 1280×720 )+( 170° )
• GAHD camera:
( AHD1080P )+( 1920×1080 )+( 175° )
Cut the white cable(reconnect the camera power)→( CVBS )+( 1280×720 )+( 125° )
B) Green cable: parking line control
The camera with parking line/camera does not display the parking line, you can cut the green cable, then reconnect the camera’s power supply, which can change the parking line.
