High-Quality Car Front View Parking Logo Camera for Mercedes Benz C Series E Class GLC GLK CLS MPV Circle Logo
-
- Material Type: Abs
-
- Length of Video Cable: 6M
-
- Lens Material: Glass
-
- Wire or Wireless: Wired
-
- Type d'alarme: Front
-
- Matériau de la coque: Plastique
-
- Image Sensor: Aptina MT9V136
-
- Image Type: Manual Control Mirror & Normal Image
-
- Parking Line: Manual Parking Line ON/OFF
-
- Température de fonctionnement: -40 degrees to 80 degré
-
- View Angle: 170 degrés (Diagonal), 138 degrés (Horizontal), 125 degrés (Verticale)
-
- Sortie vidéo: Yellow RCA Connector (5mm Connector)
-

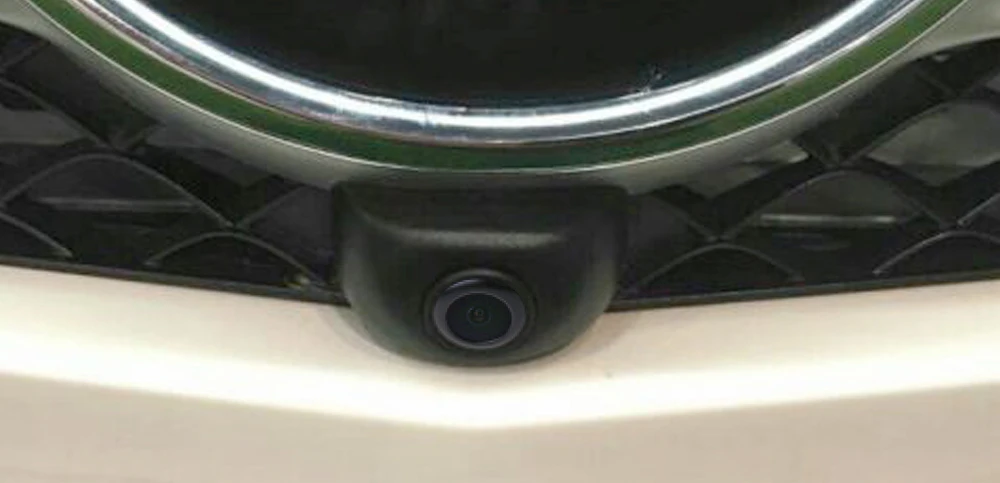

- Installation Place: For the Brand Logo
-
- Car model A: Standard Benz Circle Logo, A180, A200, B200, C200, R500, ML350, etc.
-
- Car model B: For C Series small logo/Chrome
-
- Car model C: for E Series small Logo
-
- Car model D: for GLC 2016
-
- Car model E: for Deluxe Model from 2016

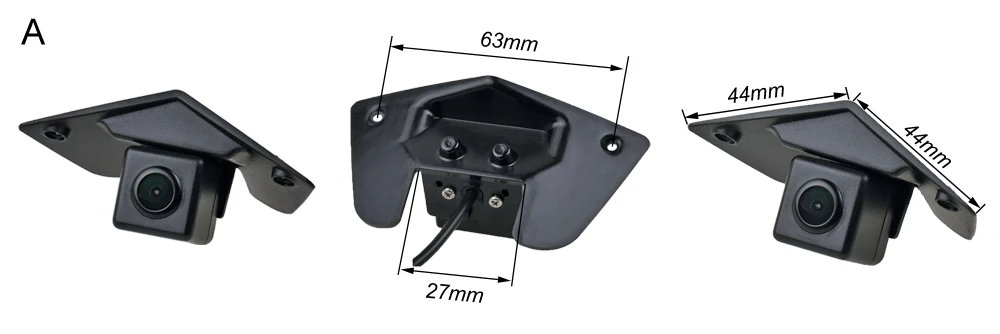

Model A is for most of the old models from 2011

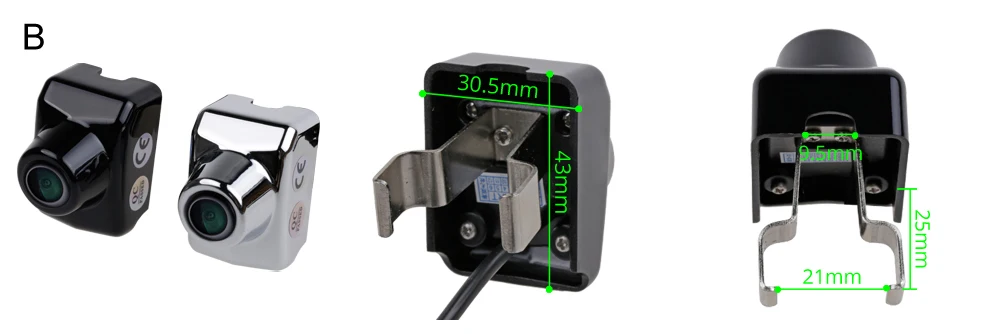

Model B is for C series 2015 2016, small chrome logo
There two colors

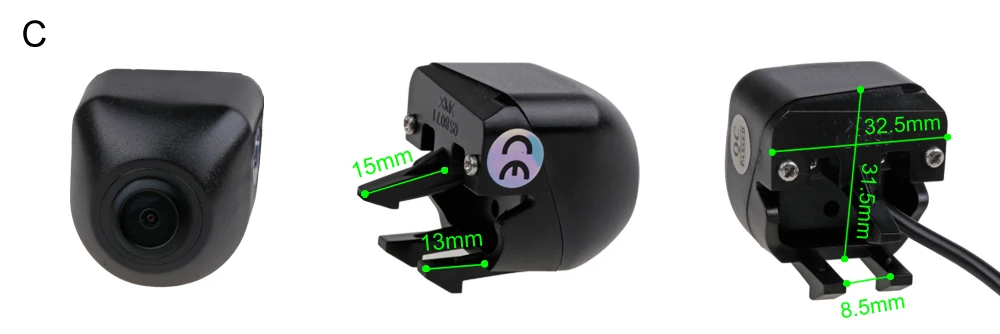

Model C is for the E series from 2015, Small logo only

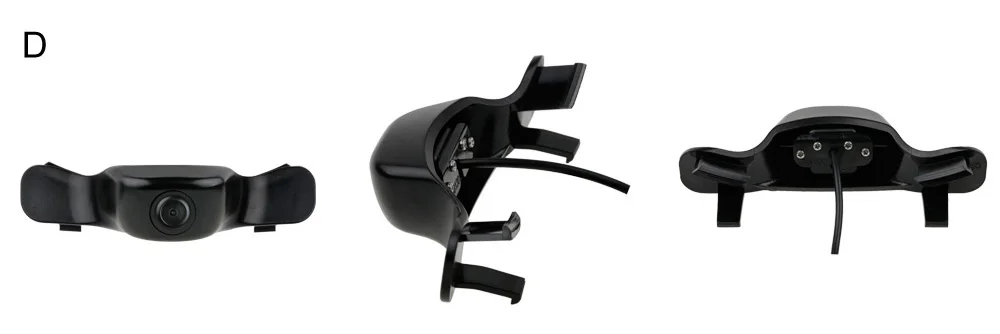

Model D is for GLC 2016

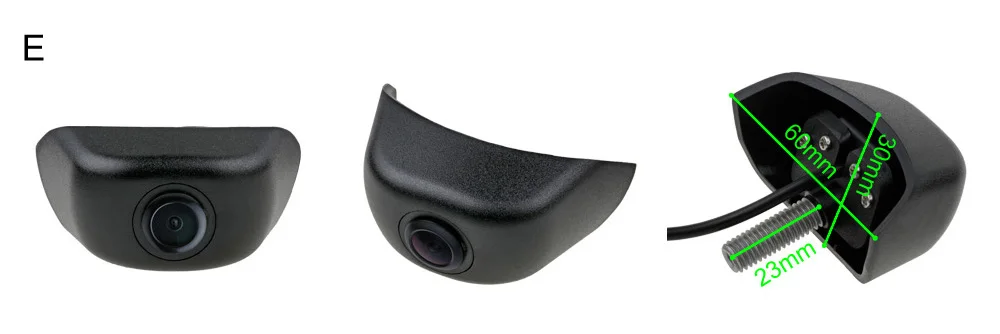

Model E is for most Deluxe Models of Benz from 2016
Main Specification
Lens materials: 100% Glass
Optical format: Aptina MT9V136
Typical type: High-sensitivity mode for low-light conditions (Vision nocturne)
Degré de protection: IP67 (Étanche)
System format: NTSC (Default), COPAIN(facultatif, please leave a message to us if you need, free cost)
Alimentation: 6V/12/24VDC Wide Input
Field view angle: 170degré (Diagonal), 138degré (Horizontal), 125 degré(Verticale) (more information from Option 2)
Optical distortion: -88% (more information from Option 2)
Horizontal resolution: 520Lignes de télévision (Pixels)
Output: RGB 720H x 480V@NTSC, 720H x 582V@PAL
Ligne de stationnement: Manual Parking Line ON/OFF
Image: Manual Switch Mirror & Normal Image
Working time: Continuous working
Operation temperature: -40°C to +80°C (-40°F to 176°F)
Package Retail: gift box (available for camera size smaller than 15cm/5.9inch)
Note: Default order: NTSC version/system, If you want to order the PAL version, please leave us a message before ordering. This service is free, But it may need 2-4 working days for preparing.
Check more cameras for your Benz
