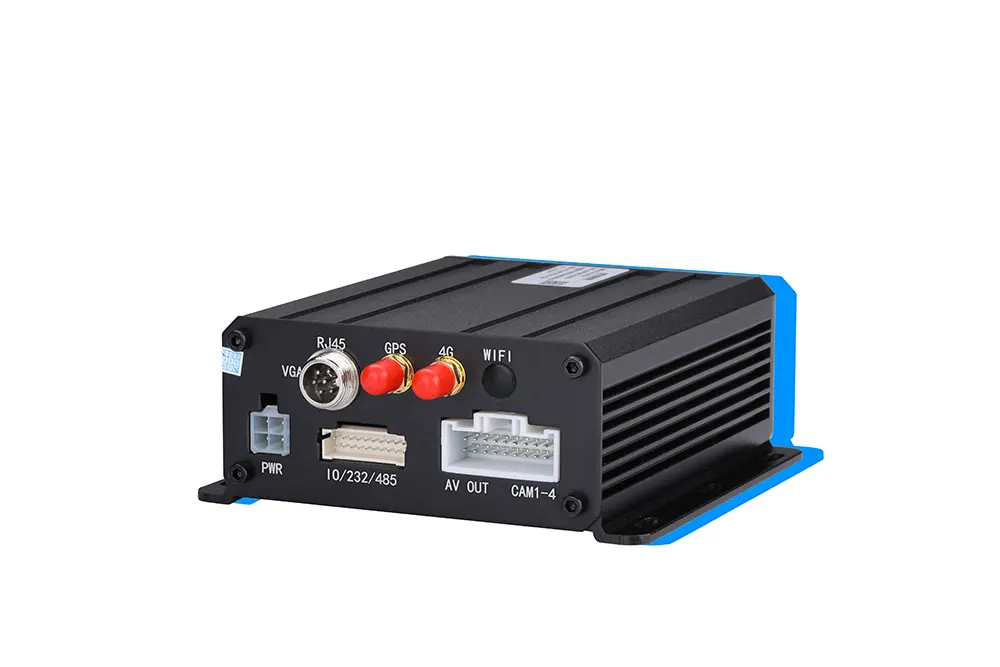

2. Power Supply Holder Definition
| NO. | Cor | Marking |
| 1 | / | / |
| 2 | Yellow | ACC |
| 3 | Red | PWR_IN+ |
| 4 | Preto | PWR_IN- |
3. Video Input Holder Definition
| NO. | Marking | Marking |
| 1 | AV OUT | CVBS Connector |
| 2 | AV IN1 | Camera Connector 1 |
| 3 | AV IN2 | Camera Connector 2 |
| 4 | AV IN3 | Camera Connector 3 |
| 5 | AV IN4 | Camera Connector 4 |

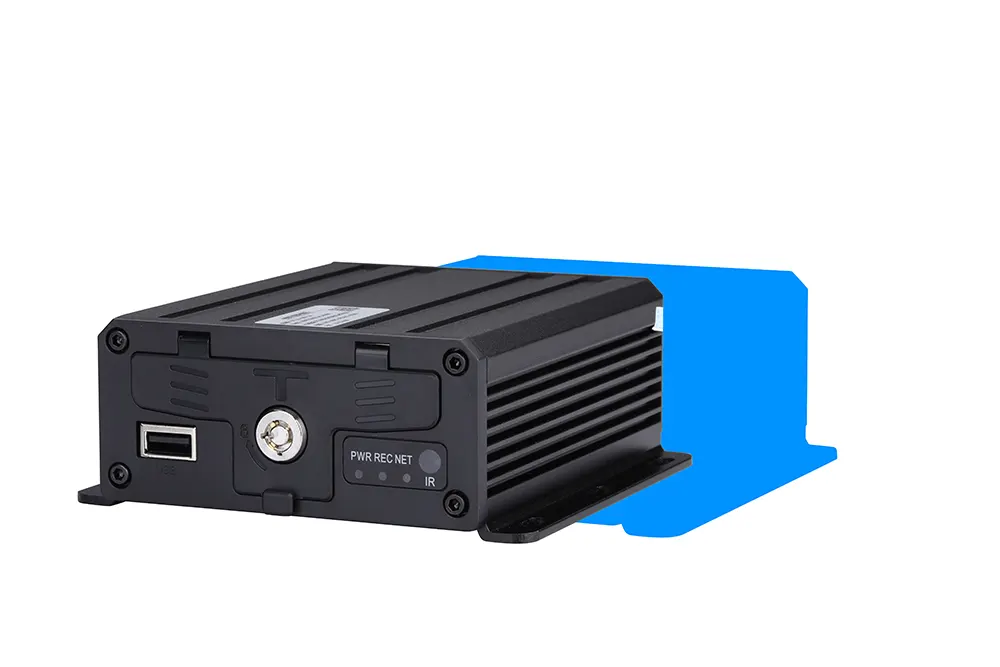

4.Features Intorduction
VCAN1684 is a smart Linux vehicle-mounted device with full HD video recording, and a built-in AI intelligent algorithm, supporting ADAS, DMS, BSD, and 360°. It has a compact and portable design with an aluminum alloy casing, light and tight, and good heat dissipation.
VCAN1684 adopts industrialized components, with the operating temperature reaching -20°~70°, and operating humidity reaching 20%~90%, it can work normally in harsh environments. VCAN1684 uses the Linux system, which is more stable than the Android system and has twice the number of disk reads and writes than other dash cams. Real-time audio and video information and GPS data can be transmitted to the CMS platform on cell phones and PCs via 4G and built-in WIFI, and managers can track and manage assets via CMS.
VCAN1684 supports the use of 2 SD cards for recording. During the driving process, the video information in the field of view is recorded and stored in the SD card, and the video is stored in a loop; it can record images and sounds of the whole process of vehicle driving, providing effective evidence for traffic accidents and protecting your legal rights.
VCAN1684 is also a very privacy-conscious device. The device’s SD card and SIM card are locked and protected, and the video files in the SD card are encrypted. The video cannot be played back even if the SD card is removed. ES-AHD7704G-B is equipped with an in-car battery health monitor that can be used to check the status of the battery. When the voltage falls below the safety warning, the driver will receive an alarm alert and stop the car to prevent damage to the car battery.
5.IO Port Output Definition
| NO. | Cor | Marking |
| 1 | Red | 5V_OUT |
| 2 | Preto | GND |
| 3 | Red | 12V_OUT |
| 4 | Preto | GND |
| 5 | Yellow | MIC_IN |
| 6 | Yellow | AOUT_MIC |
| 7 | Yellow | SPEAKER- |
| 8 | Yellow | SPEKER+ |
| 9 | Preto | GND |
| 10 | Preto | GND |
| NO. | Cor | Marking |
| 11 | Green | UART2_232TX/485B |
| 12 | Green | UART2_232RX/485A |
| 13 | Green | UART1_232TX |
| 14 | Green | UART1_232RX |
| 15 | White | SENSOR_IN1 |
| 16 | White | SENSOR_IN2 |
| 17 | White | SENSOR_IN3 |
| 18 | White | SENSOR_IN4 |
| 19 | White | Sensor_out |
| 20 | White | ALM_IN |
6. Product Function
| Item | Parameter | |
| Operation | Linguagem | Chinese/English |
| Sistema | Linux | |
| Interface | Graphical menu operation interface (OSD menu) | |
| Video Recording | Video Input | 4-channel 12V video input |
| Video Output | Support 1-channel CVBS/VGA output | |
| Format | AMIGO、NTSC | |
| Compression Format | H.264/H.265 | |
| Resolução | Suporte 1080P、720P、D1、HD1、 CIF | |
| Image quality | Level 1 para 8, Optimum level 1, minimum level 8 | |
| Modo | Default automatic recording, support timed recording, alarm recording, etc.. | |
| Áudio | Audio Input | Support 4-channel input, simultaneous recording of sound and video |
| Compression Format | G.711A | |
| Alarm Input | 4-channel switching inputs, 1-channel emergency alarm input | |
| Alarm Output | 1-channel switching output | |
| Serial Input | 2-channel RS232, optional 1-channel RS232, 1-channel RS485 | |
| Wireless Transfer | Built-in 4G wireless transmission function, TDD-LTE, FDD-LTE | |
| WI-FI: wireless 802.11b/g/n Communication Module | ||
| GPS | Support external GPS / BD module, can be reported to JT_808 | |
| Sensor | Built-in 3-axis acceleration, optional 6-axis gyroscope sensor | |
| Memory Card | 2x Micro SD Card slot, 512GB max | |
| Upgrade Method | Support SD-card, U-disk, FTP remote auto-upgrade | |
| Storage Method | Proprietary bare disk storage method | |
| SIM connector | Apoiar 1 SIM card port | |
| Video Playback | Video Search | Support search video by video time, video mode, and other conditions |
| Video Playback | Apoiar 1-4 channel playback, apoiar 2, 4, 8, 16 times speed fast forward or backward, pause | |
7. Product Parameter
| Item | Parameter | |
| Poder | Power Management | Adaptive wide-range power input. Protection functions for overload, under voltage, short-circuit, and reverse connection. |
| Support timed shutdown and delayed shutdown. | ||
| Power Input | CC:+9V ~ +36V | |
| Saída de potência | +12V@1A，+5V@1A | |
| Consumo de energia | Normal working state＜12W（Without peripherals） | |
| Operating Environment | Temperatura | -20℃ to +70℃ |
| Umidade | 20%~90% | |
| Security Management | Password Access | User password, administrator -password, two-level management |
| Platform Access | JT/T 808-2011, JT/T 808-2019； T/T 905-2014【Optional】 | |
| (private and other protocols supported on a pay-per-project basis) | ||
| Product Dimension | 120*120*46milímetros | |
| Peso | 450g | |
